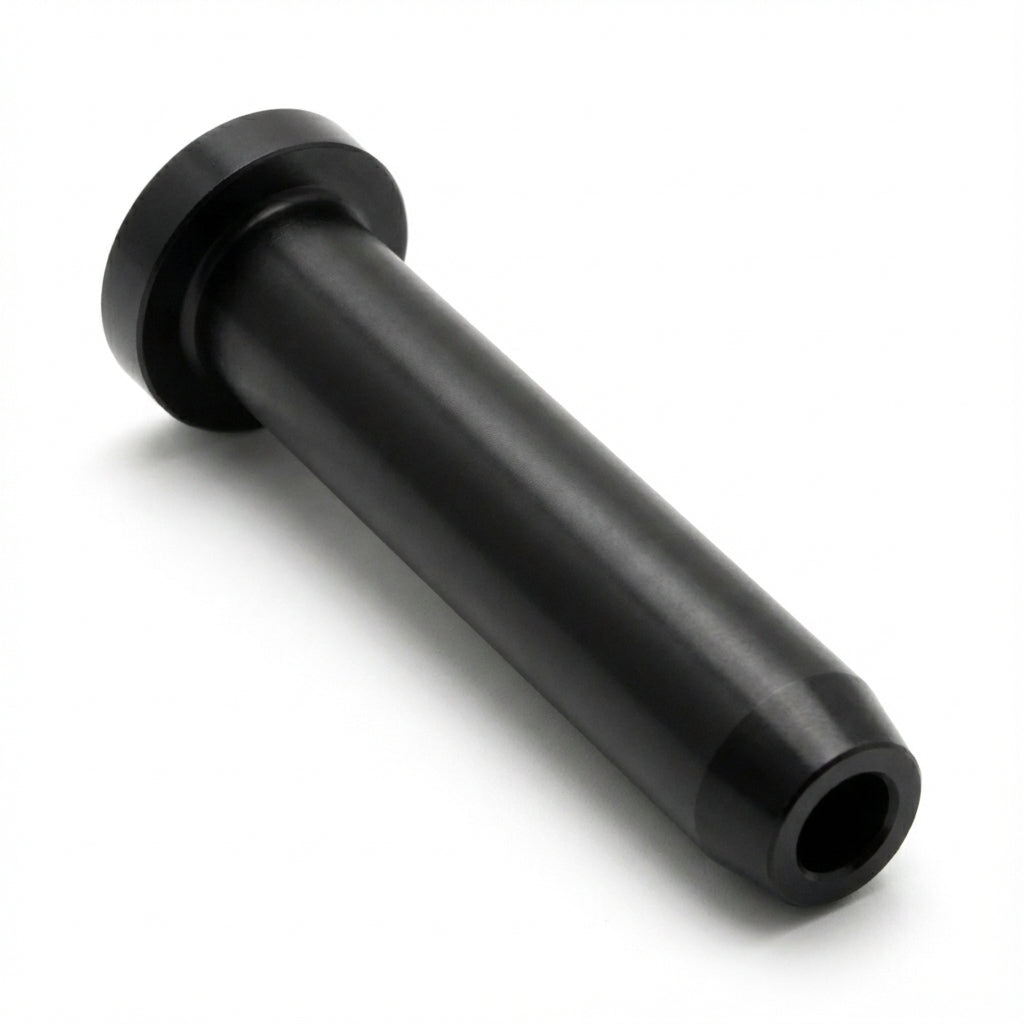

The invisible anchor for your cable run. Features a sleek, concealed design that acts as the stationary end point. Available in Classic Silver or Black Titanium PVD. (Requires Hydraulic Crimper).

Overview

Create a truly seamless view with the RiaYer Fixed End Kit. Designed to work in pairs with a tensioner (on the opposite post), this "Dead End" terminal acts as the solid anchor point for your wire rope. It is engineered to hide completely inside the post, leaving only a small, polished head visible.

Whether you choose the Classic Silver or the Black Titanium PVD finish, this kit is crafted from T316 Marine Grade Stainless Steel, ensuring it withstands extreme weather conditions without rusting.

Why Choose This Fixed End Kit?

• ⚓ The Perfect Anchor: This is a "Fixed End" (or Dead End). It holds the cable securely on one side of your railing, while you tension the cable from the other side. It is the most stable and minimalist way to start a cable run.

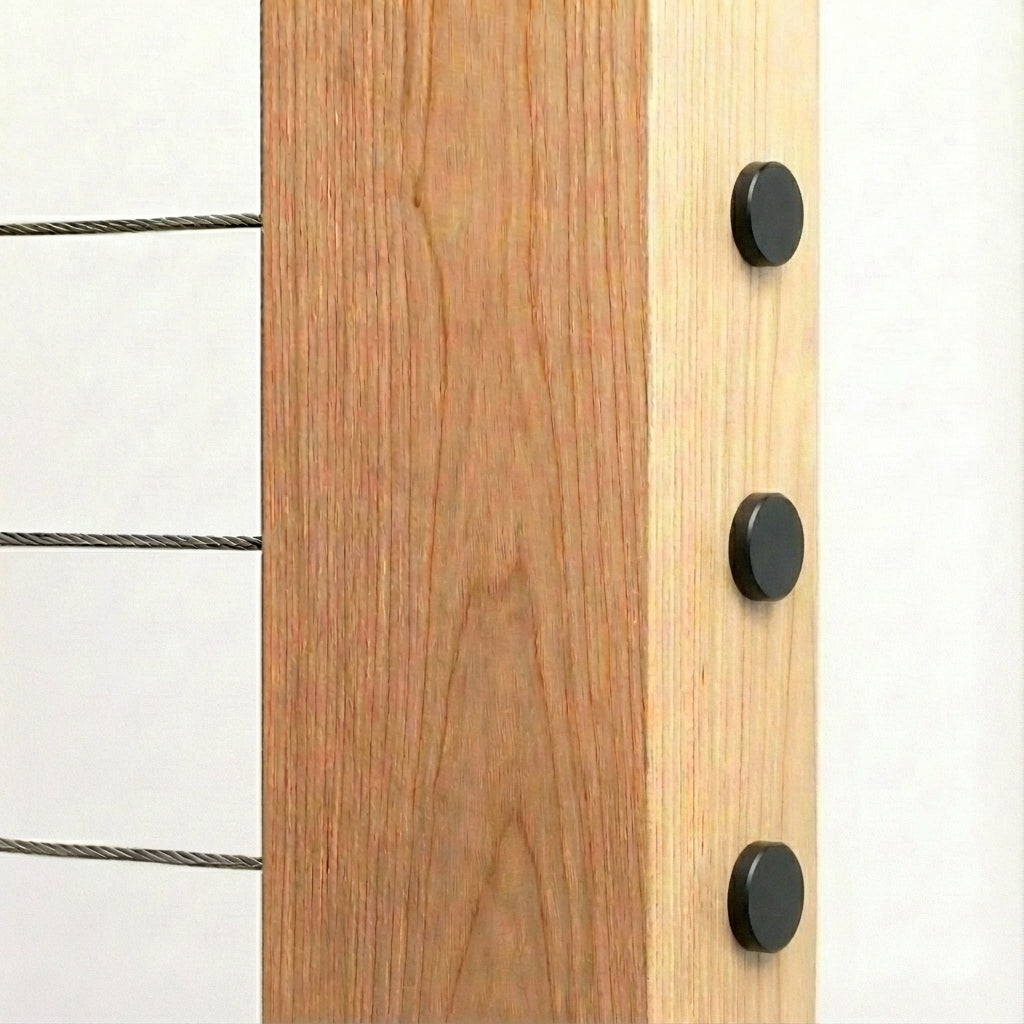

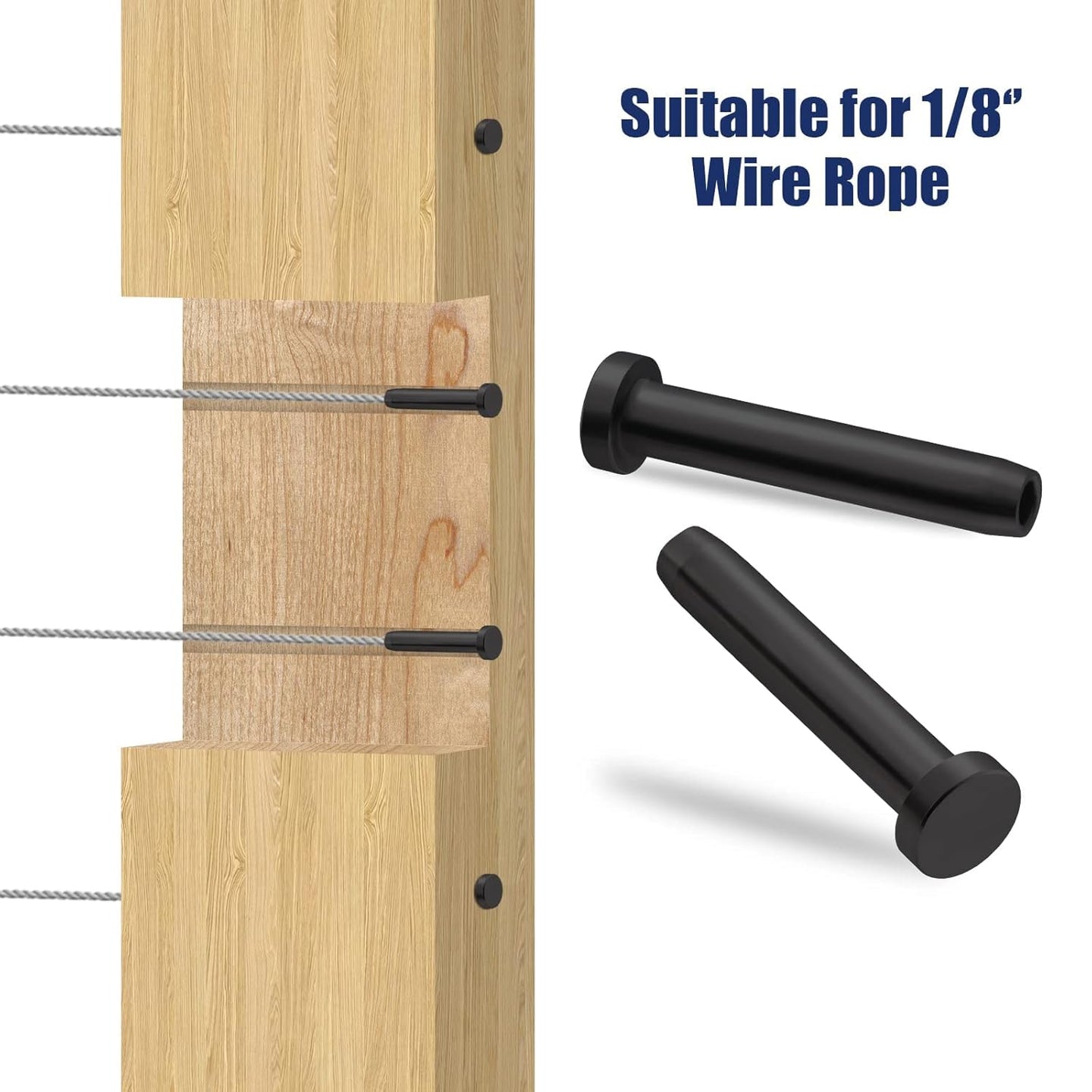

• 👻 Invisible "Invisible" Look: Once installed, the body of the fitting is hidden inside the post. Only a tiny, sleek head is visible on the outside, keeping your view clean and unobstructed.
• 🎨 Two Premium Finishes:
  • Classic Silver: Polished T316 steel for a traditional, bright nautical aesthetic.
  • Black Titanium PVD: A vacuum-plated black finish that bonds to the steel. It won't chip or peel, perfect for modern industrial designs.

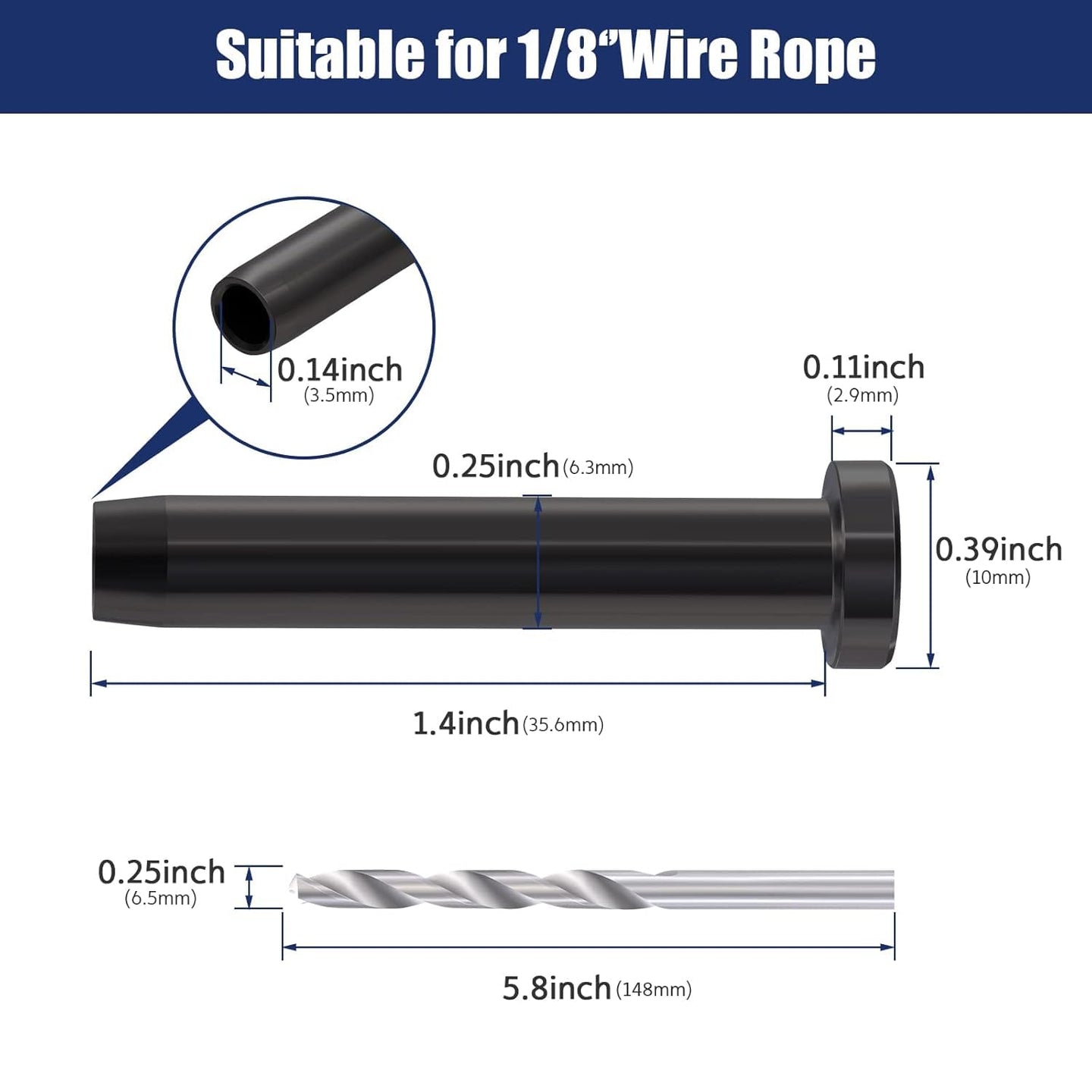

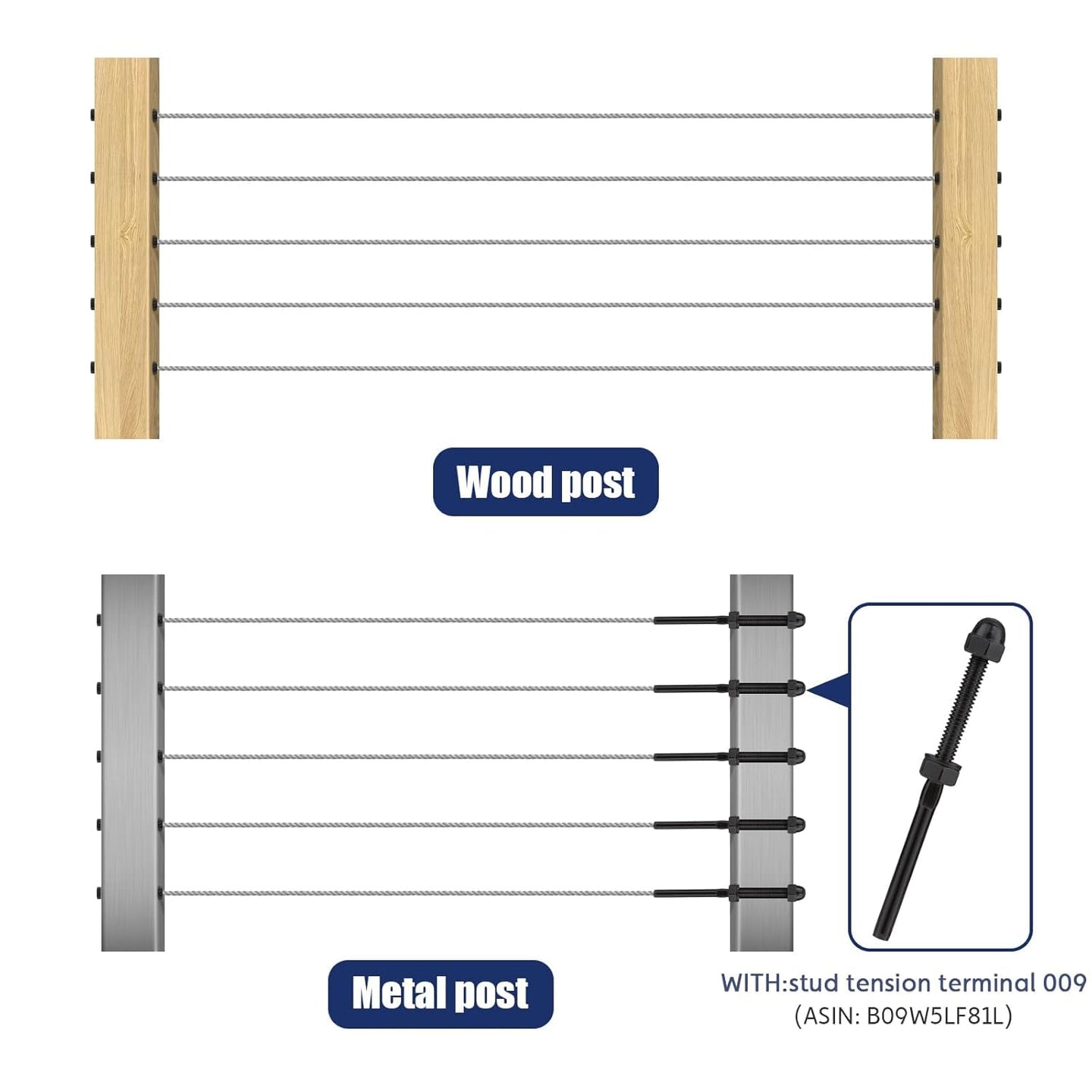

• 🪵 Versatile Compatibility: Designed for 1/8" wire rope. It fits perfectly into Wood Posts (4x4, 6x6) and can also be used on Metal Posts (with appropriate hole sizing).

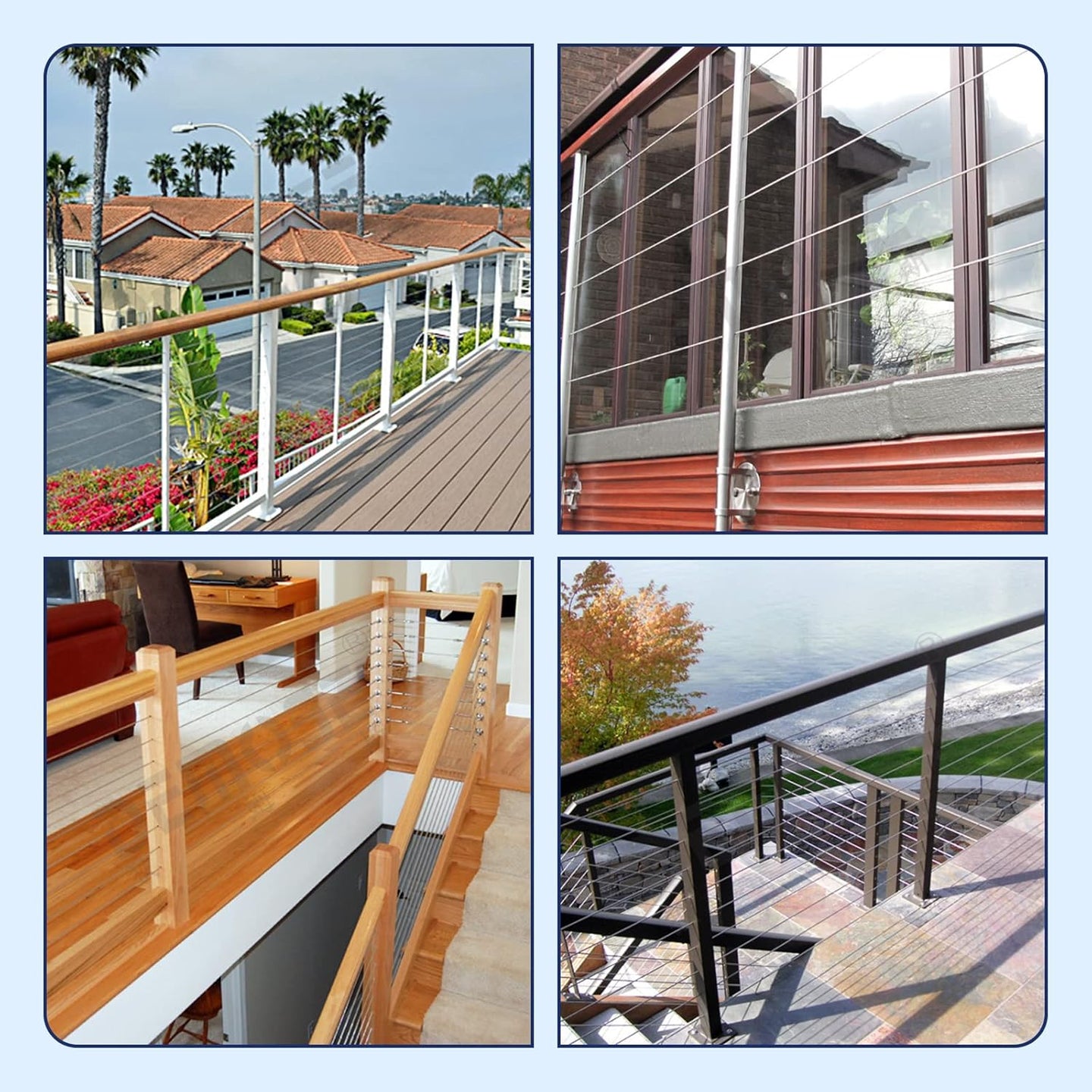

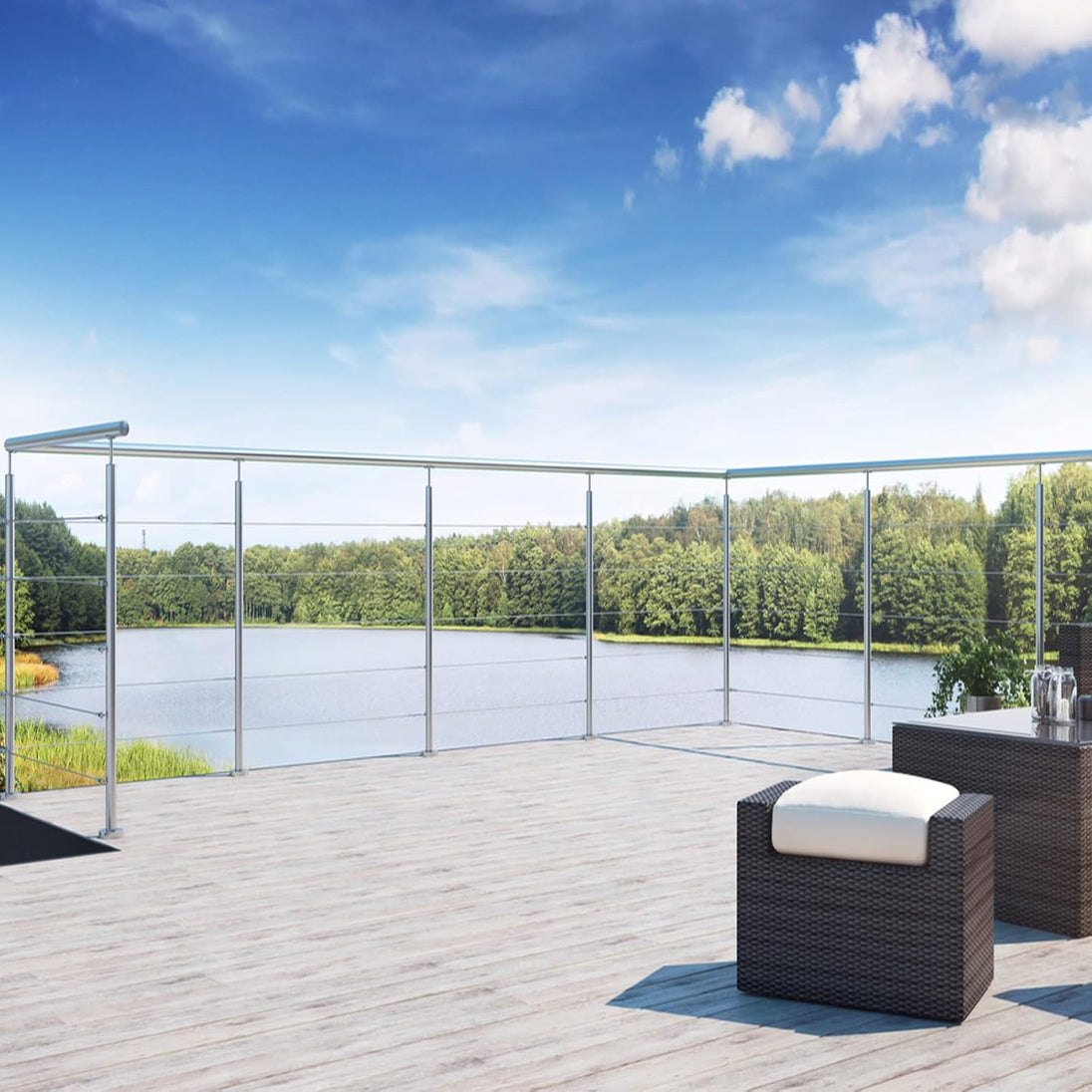

• 🌊 T316 Marine Grade Protection: No rust, no corrosion. Ideal for indoor staircases or outdoor decks, even in salty coastal areas.

Technical Specifications

Product Includes:

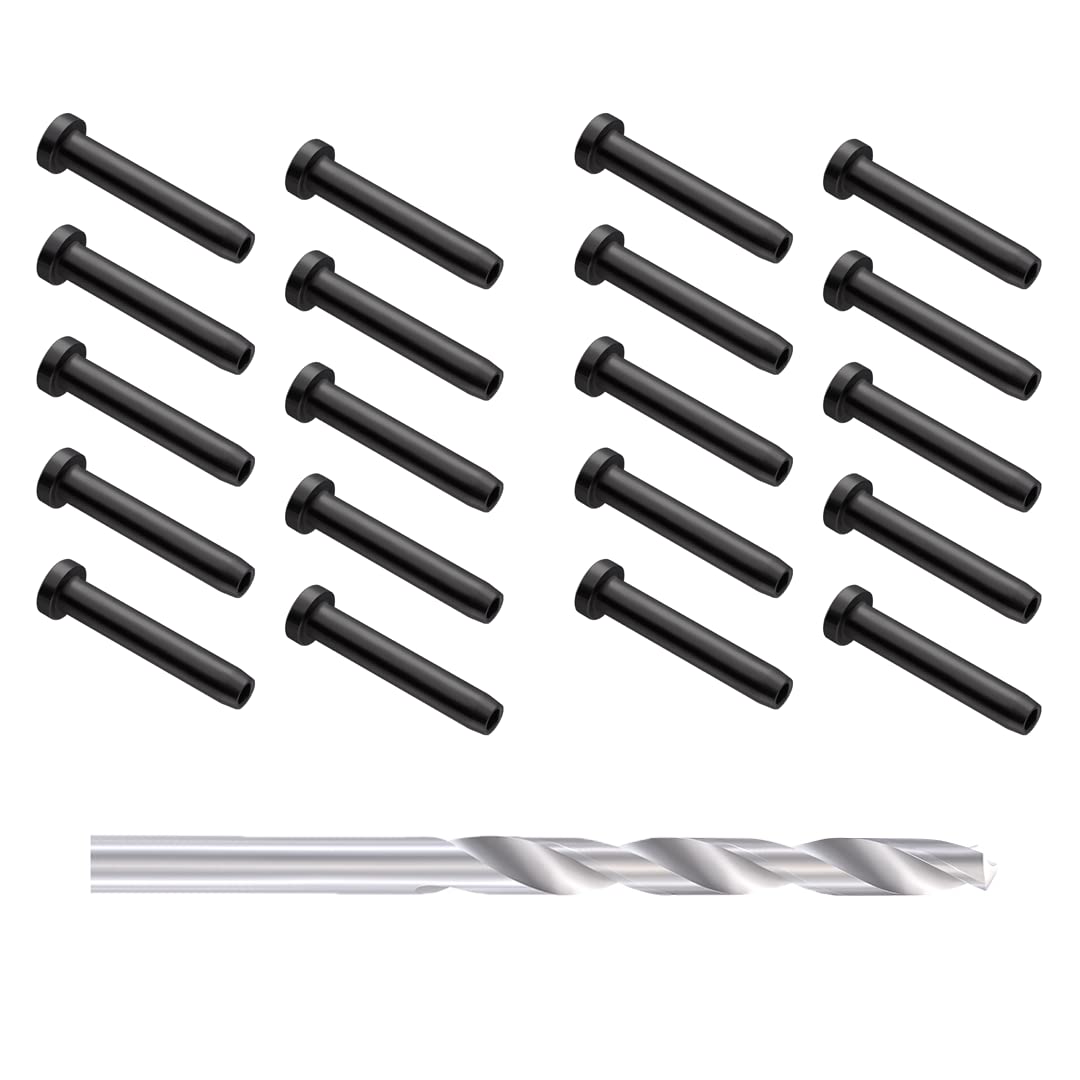

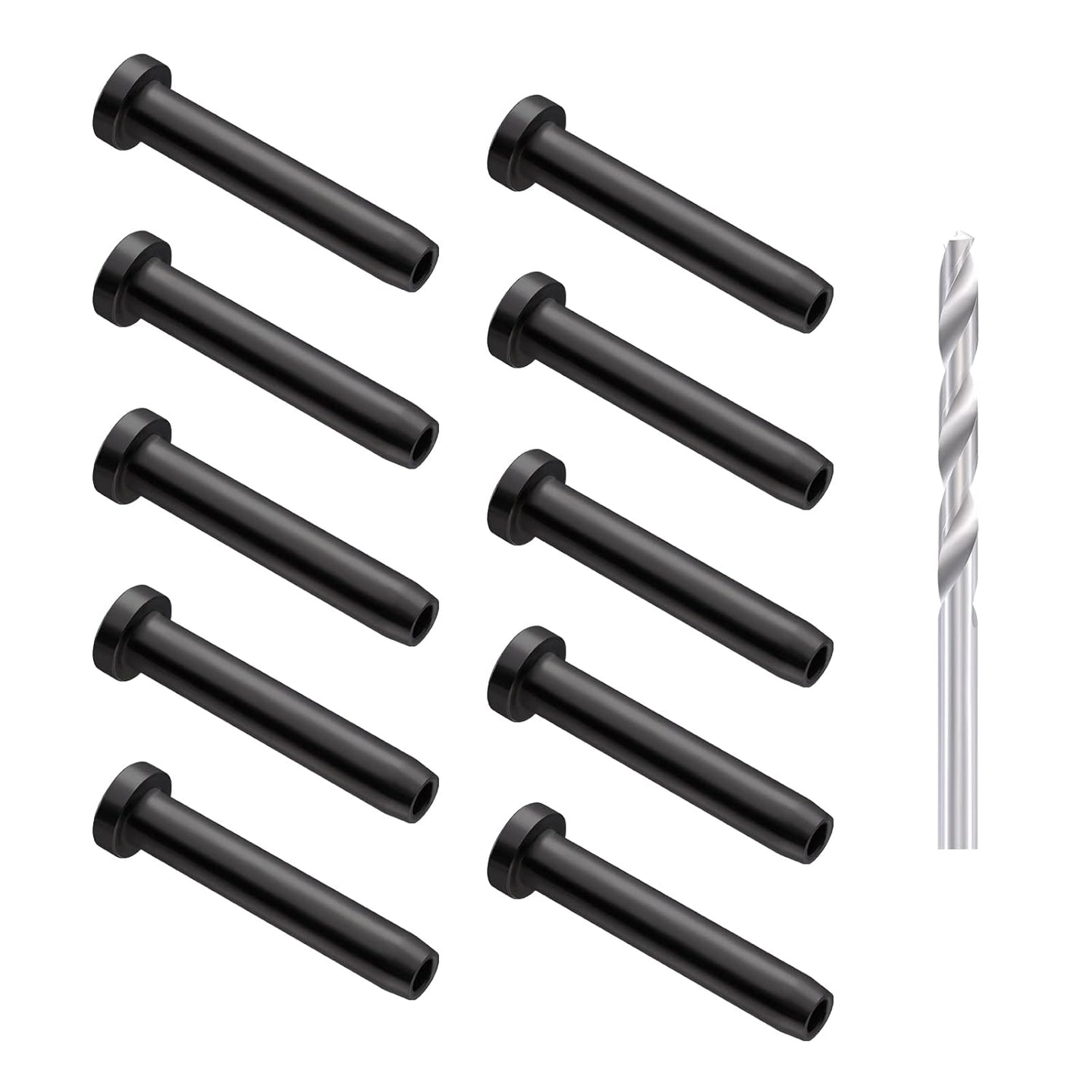

• Invisible Fixed End Terminals (Quantity based on pack size)
• Note: This kit does NOT tighten the cable. You need a separate Tensioner for the other end.

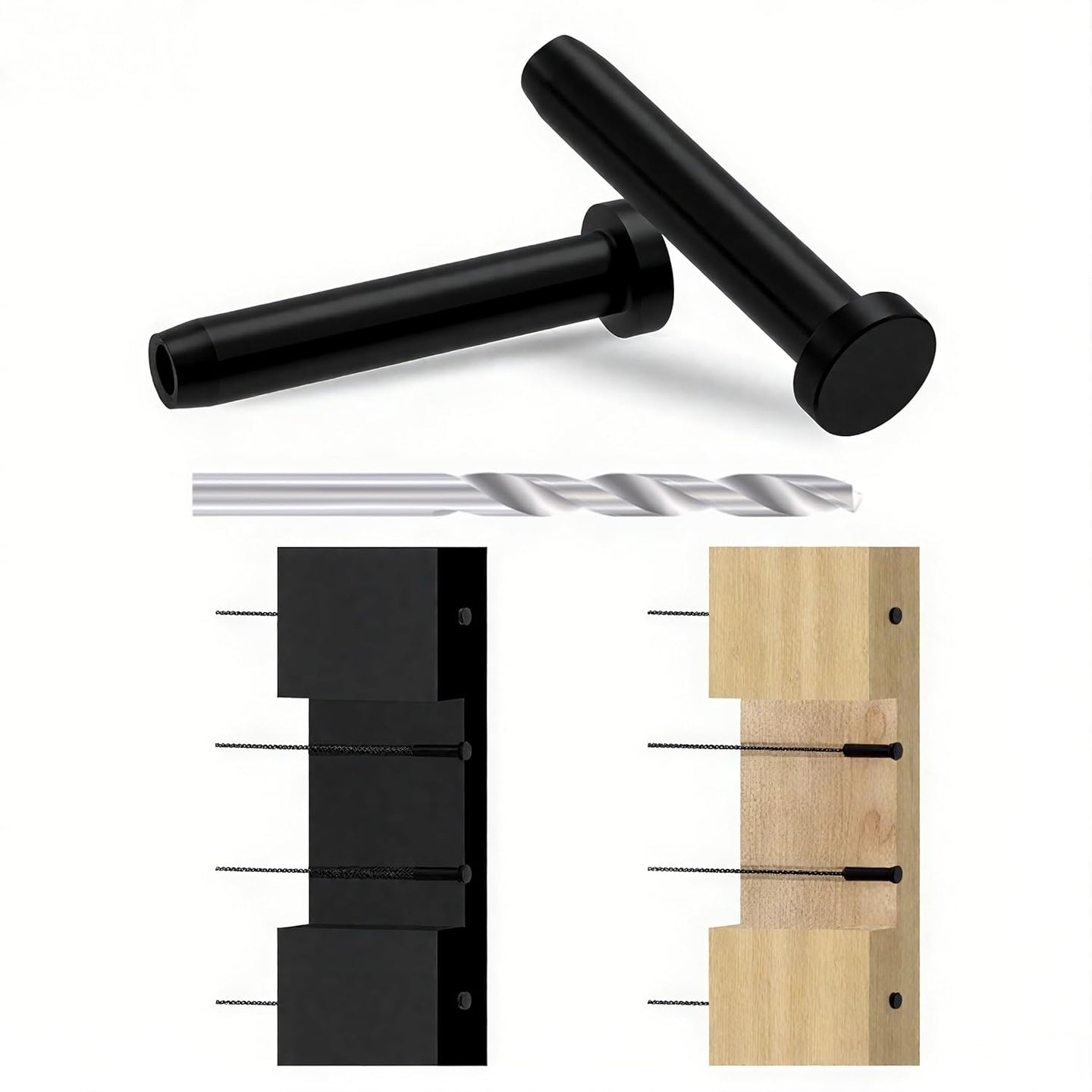

How to Install:

1. Drill: Drill a 1/4" hole through your end post.
2. Crimp: Insert the 1/8" wire rope into the fixed terminal tube. Use a Hydraulic Crimper to swage it securely.
3. Insert: Pass the wire and fitting through the hole from the outside in (or inside out depending on access) until the head sits flush against the post.
4. Pair: Connect the other end of the wire to a Tensioner (sold separately) on the opposite post and tighten the system.

FAQ

Q: Can I use this on both ends of the cable?
A: No. This is a Fixed End. You must have at least one Tensioner (Adjustable End) on the other post to tighten the wire rope, otherwise, the cable will be loose.

Q: What size hole do I drill?
A: A standard 1/4" hole is perfect for the fitting to pass through while the head stops on the surface.

Q: (For Black Option) Is the black finish durable?
A: Yes, we use PVD technology. It's not paint; it's a molecular bond that resists scratching and fading.

Q: Do I need a crimper?
A: Yes, you need a hydraulic crimper to permanently attach the wire to this fitting.
