The ultimate minimalist solution. This invisible kit hides the hardware inside the post for a completely unobstructed view. Made from T316 Stainless Steel for superior rust resistance. (Requires Hydraulic Crimper).

Overview

Achieve the cleanest possible look for your deck or balcony with the RiaYer Invisible Cable Railing System. Unlike traditional hardware that leaves bulky turnbuckles exposed, this system features a Concealed Screw-in Design. The tensioning mechanism is hidden inside the post, leaving you with nothing but sleek, straight cable lines.

Crafted from 316 Marine-Grade Stainless Steel, this kit is engineered to resist corrosion even in harsh coastal environments. It is the perfect choice for modern homes where aesthetics and durability are paramount.

Why Choose This Invisible Kit?

• 👻 Truly Invisible Design: The hardware disappears into the post. By using a concealed receiver and swage stud, you maintain a "Zero-Visual-Clutter" appearance, perfect for maximizing your view.
• 🌊 T316 Marine Grade Protection: Made from high-quality 316 stainless steel, specifically designed to resist rust and corrosion in saltwater and outdoor climates. It outperforms standard T304 steel significantly.
• ⚓ Secure Swage Connection: This is a professional-grade system. The wire rope is crimped (swaged) into the fittings, providing a permanent, high-strength connection that is safer than simple set-screw fittings.
• 🔧 Versatile Installation: Designed primarily for Wood Posts, but versatile enough for concrete or metal posts (when used with appropriate anchors/tapping). It works for both level runs and staircases.
• ✨ Classic Silver Finish: The polished stainless steel finish offers a timeless, modern industrial look that brightens up any deck design.

Technical Specifications

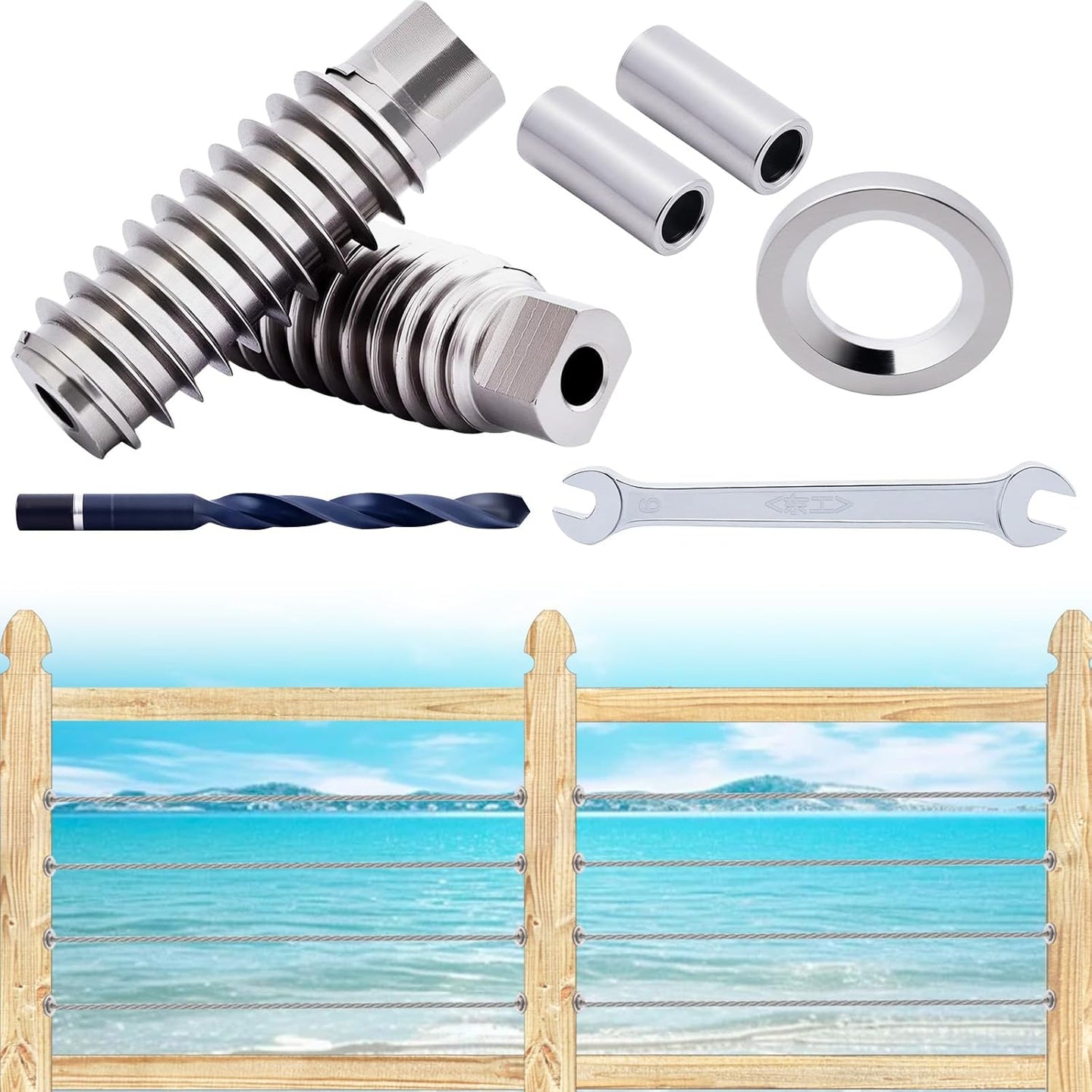

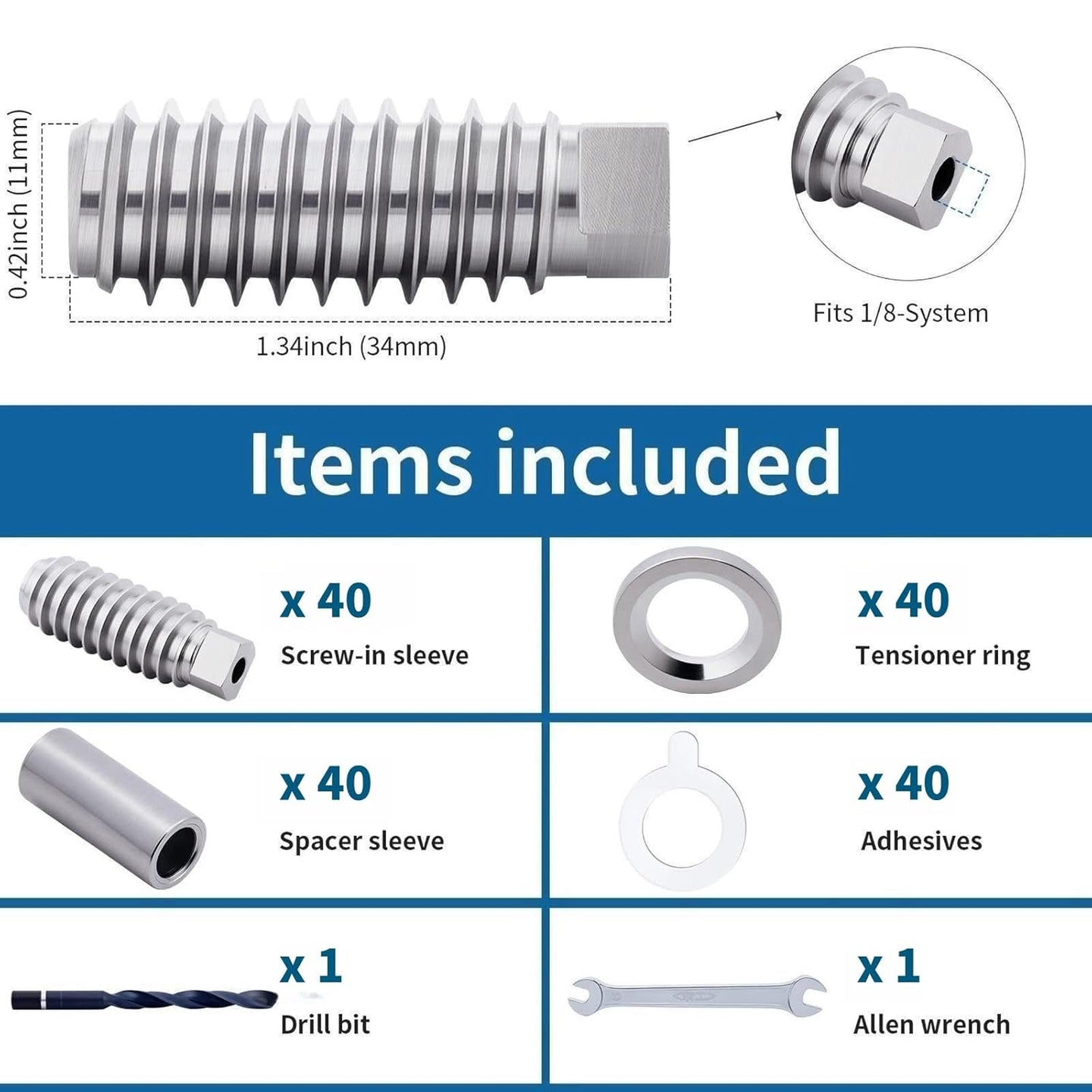

Product Includes:

• 1 x Invisible Swage Tensioner (Receiver)
• 1 x Invisible Swage Terminal (Stud End)
• Installation Tool (Allen Key / Wrench)
• Note: Hydraulic Crimper is required and sold separately.

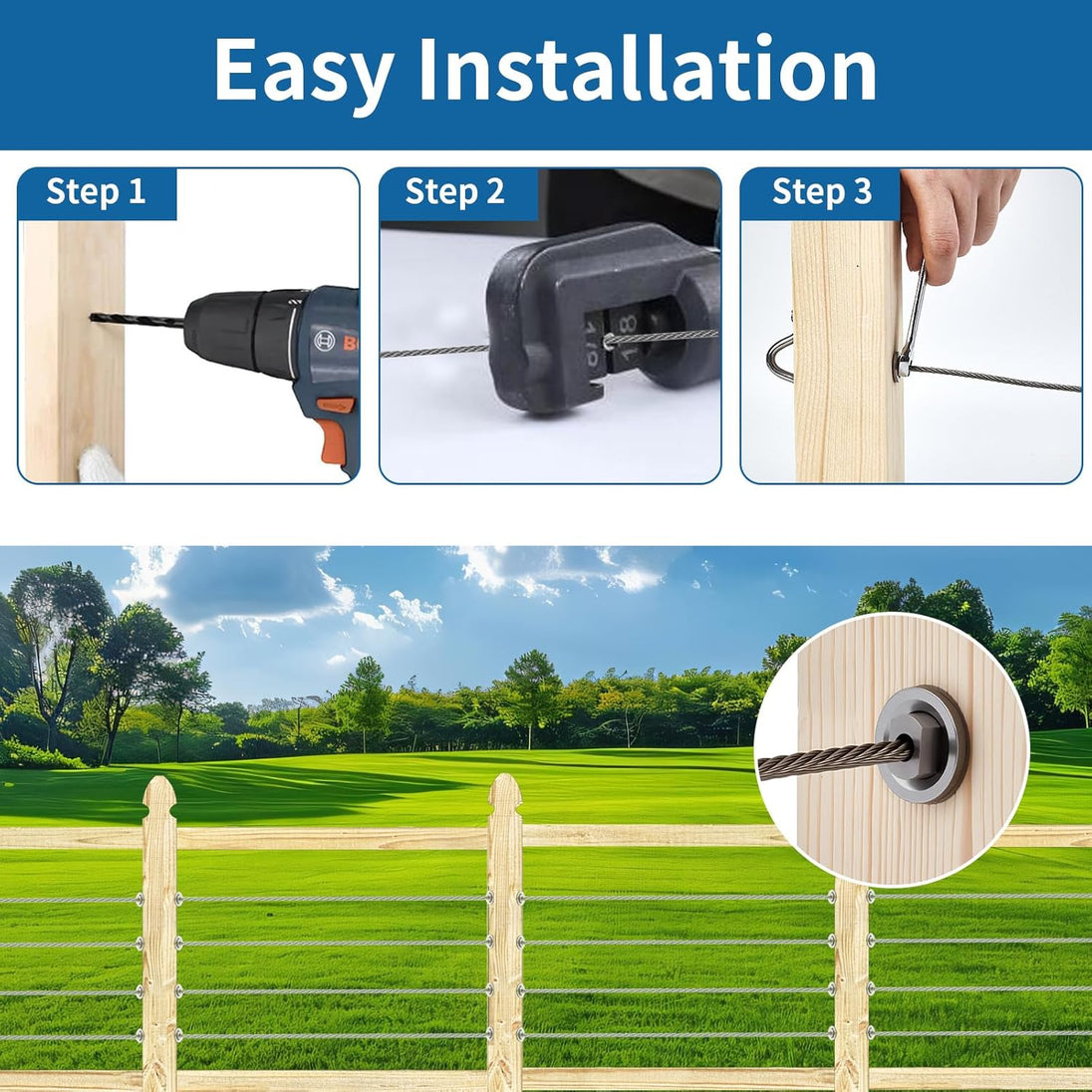

How to Install:

1. Drill: Drill precise holes in your posts according to the size of the receiver.
2. Crimp: Insert the wire rope into the swage end. Use a Hydraulic Crimper to crimp the tube securely.

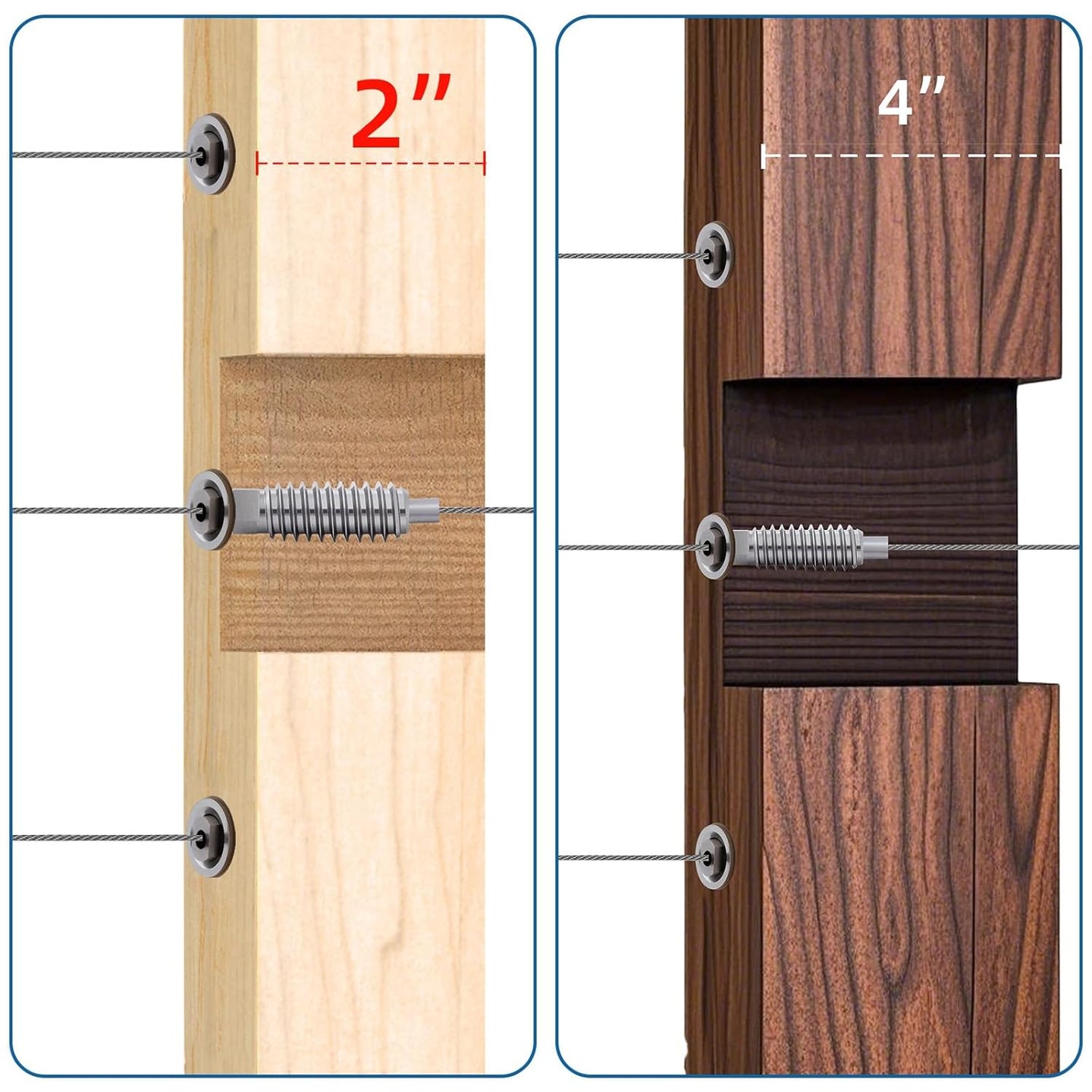

3. Insert: Place the hardware into the post holes.
4. Tension: Rotate the internal receiver (using the included wrench/key) to draw the cable tight. The hardware will pull itself inside the post.
5. Finish: Once tightened, the hardware is flush or hidden, creating a seamless look.

FAQ

Q: Does this work for outdoor coastal decks?
A: Yes. It is made of T316 Marine Grade Stainless Steel, which is the gold standard for rust resistance in coastal areas.

Q: Do I need a crimping tool?
A: Yes. This is a Swage kit. You will need a hydraulic crimper to secure the wire to the fittings.

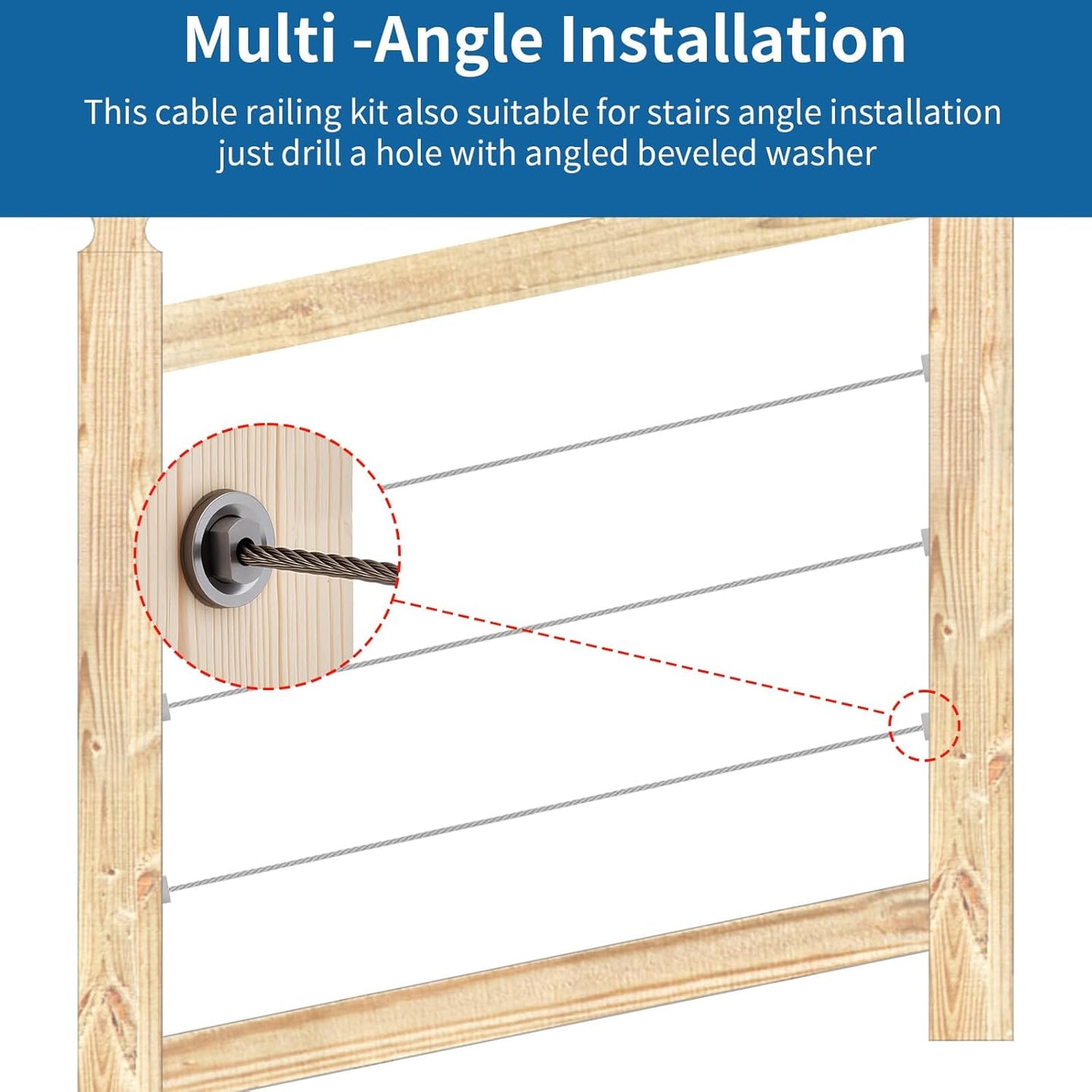

Q: Can I use this on stairs?
A: Yes. Because the cable passes through the post hole, if you drill your holes at the angle of the stairs, this invisible kit works perfectly for angled runs.

Q: Why choose "Invisible" over standard kits?
A: It's all about aesthetics. If you want a "barely there" look where the focus is on the view and not the hardware, this is the best option.
