The essential installer's helper. Prevents wire rope from spinning while you tighten invisible receiver kits. Universal fit for 1/8", 5/32", and 3/16" cables.
Overview
Frustrated by the wire rope spinning when you try to tighten your cable railing? The RiaYer Universal Fixed Tool is the solution. It is designed to clamp securely onto the cable, holding it stationary while you rotate the tensioner on the other end.
This simple yet effective tool ensures you can reach maximum tension without the cable slipping. Compact and adjustable, it is a must-have for installing Invisible Receiver Kits and Hidden Turnbuckles.
Why Do You Need This Tool?
- 🛑 Anti-Spin Function: When installing invisible tensioners, the cable often rotates with the fitting. This tool grips the wire rope tightly, stopping the rotation so you can thread the tensioner fully.

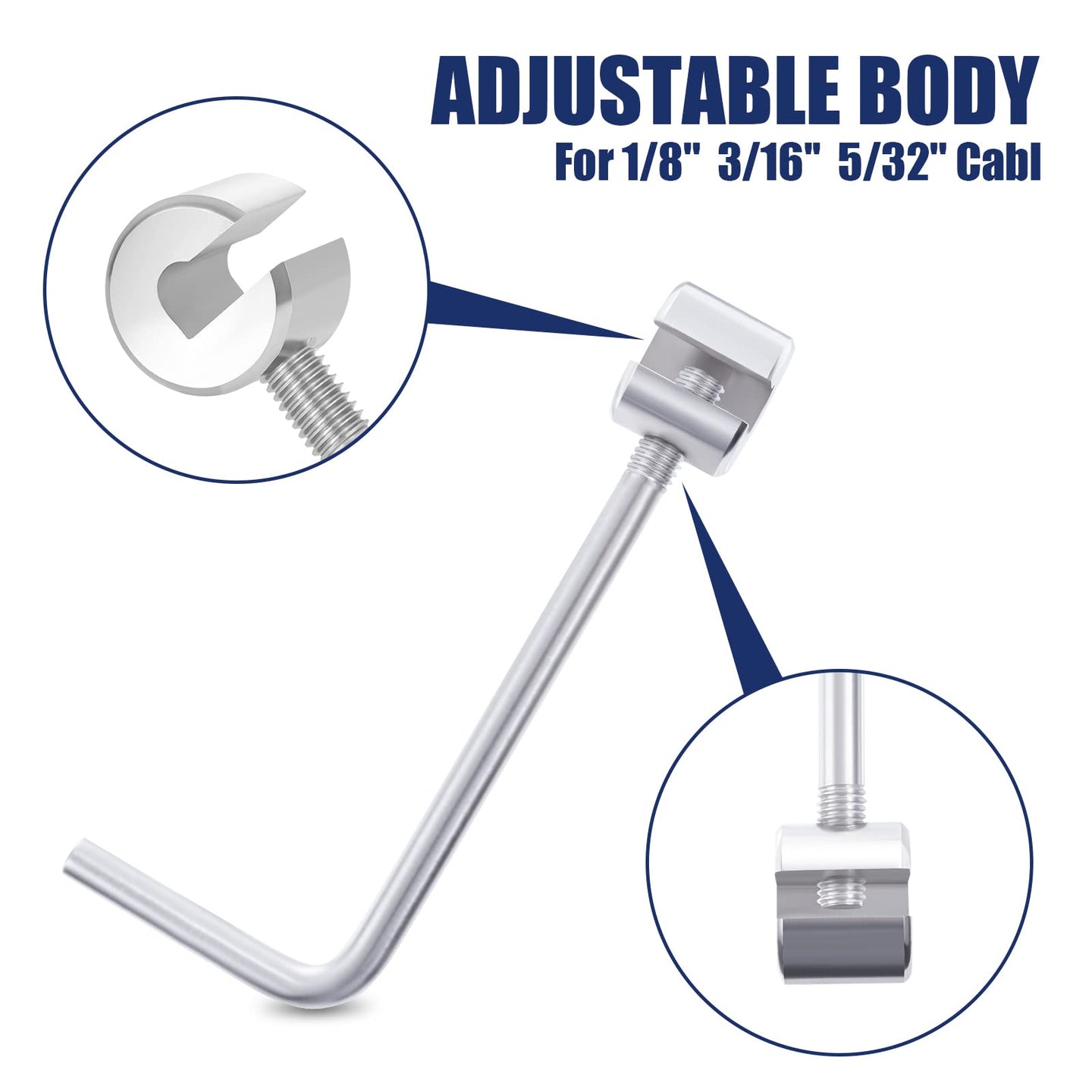

- 📏 Universal Fit: Designed with an adjustable slot (Opening width: 5mm - 6.3mm). It perfectly fits standard 1/8" cables, as well as 5/32" and 3/16" heavy-duty ropes.
- 🤲 Humanized Design: Small, lightweight, and easy to handle. The knurled screw allows you to tighten the clamp by hand or with pliers for extra grip.
- 💪 Protects Your Hands: Trying to hold a spinning steel cable with your bare hands or regular pliers can cause injury or damage the cable. This tool is designed specifically for the job.

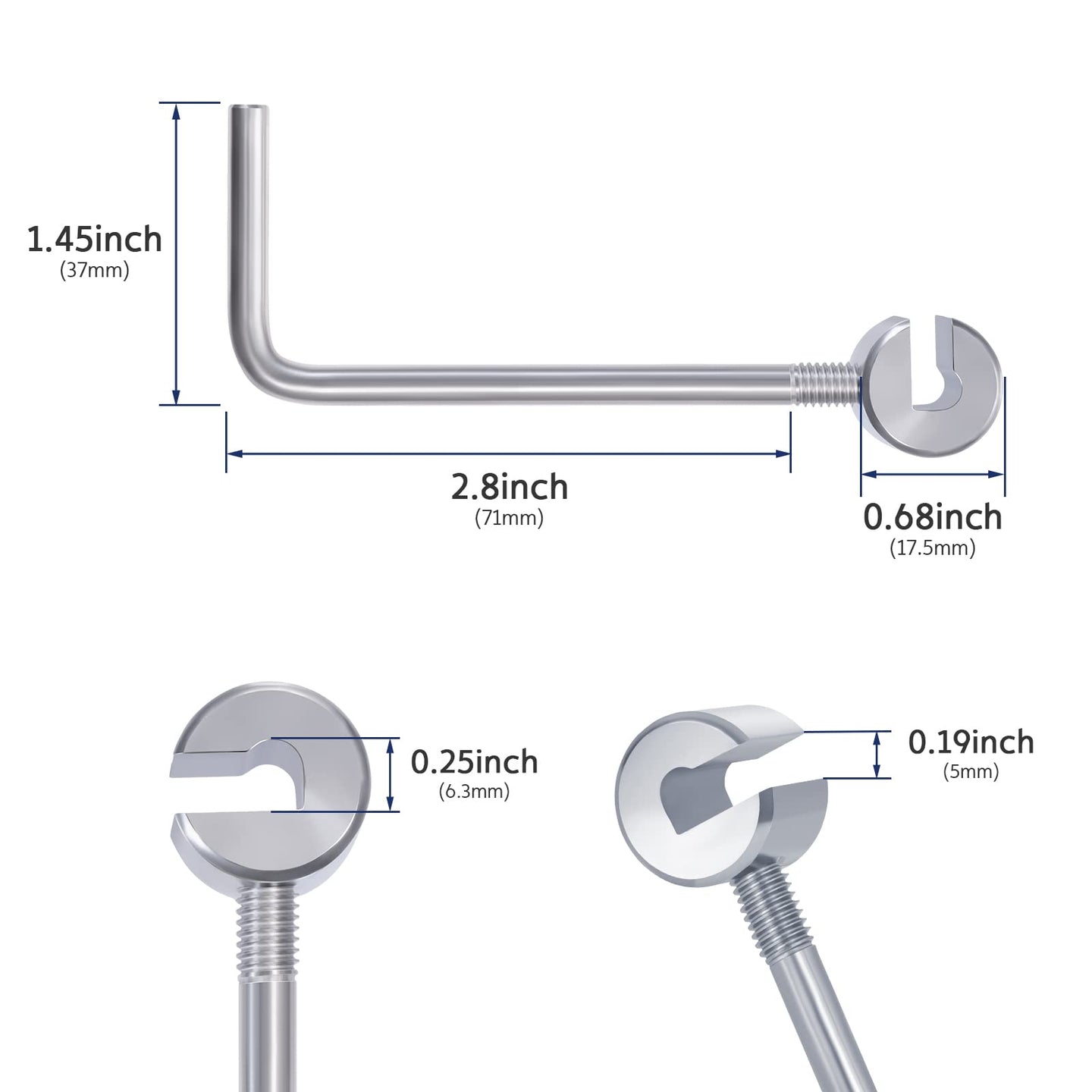

Technical Specifications
| Product Type | Installation Tool / Cable Gripper |
| Cable Compatibility | 1/8", 5/32", 3/16" |
| Opening Width | 5mm (Min) - 6.3mm (Max) |
| Tool Length | 71mm (Compact size) |
| Material | Stainless Steel |
| Function | Prevents cable rotation during tensioning |
Product Includes:
- 1 x Universal Wire Rope Fixed Tool

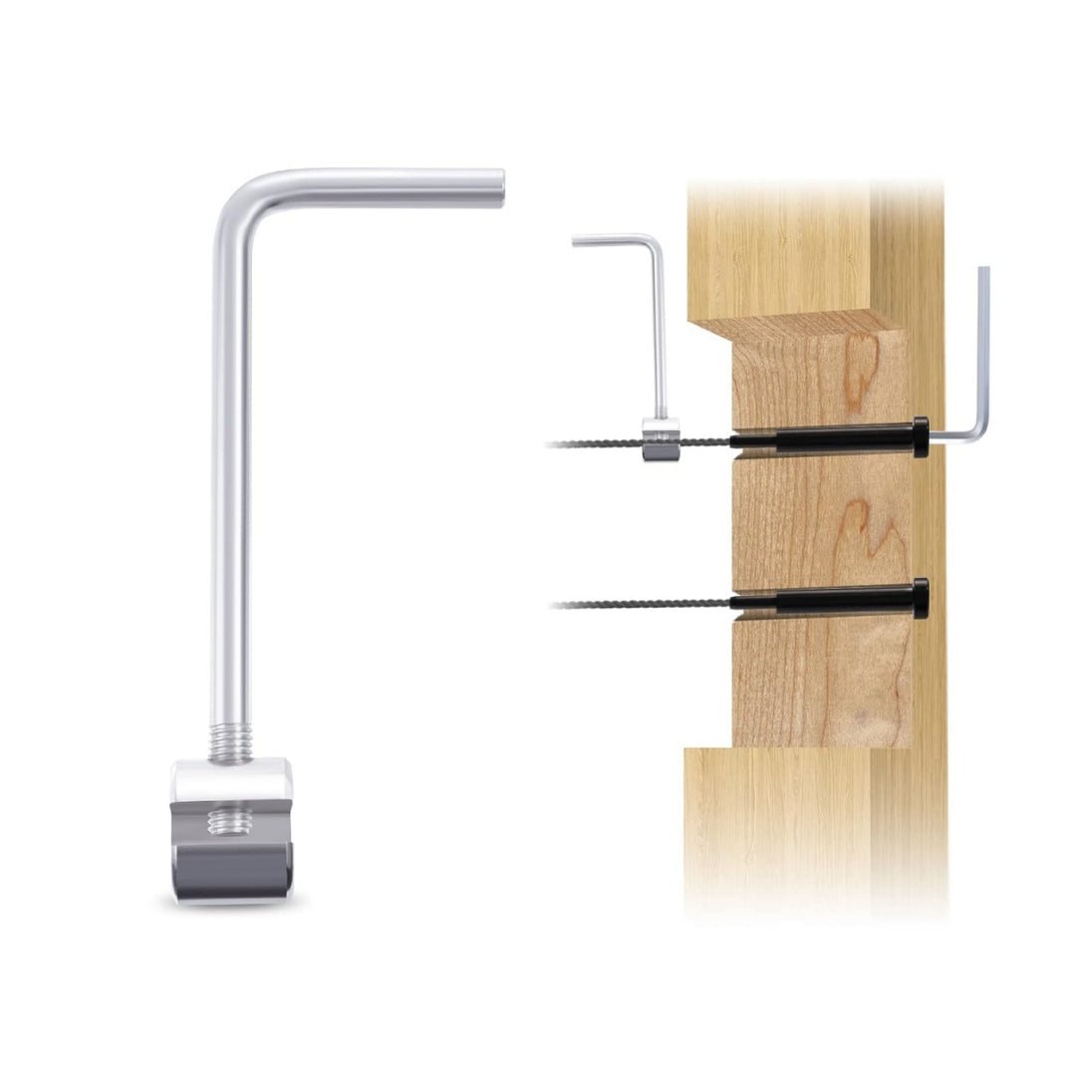

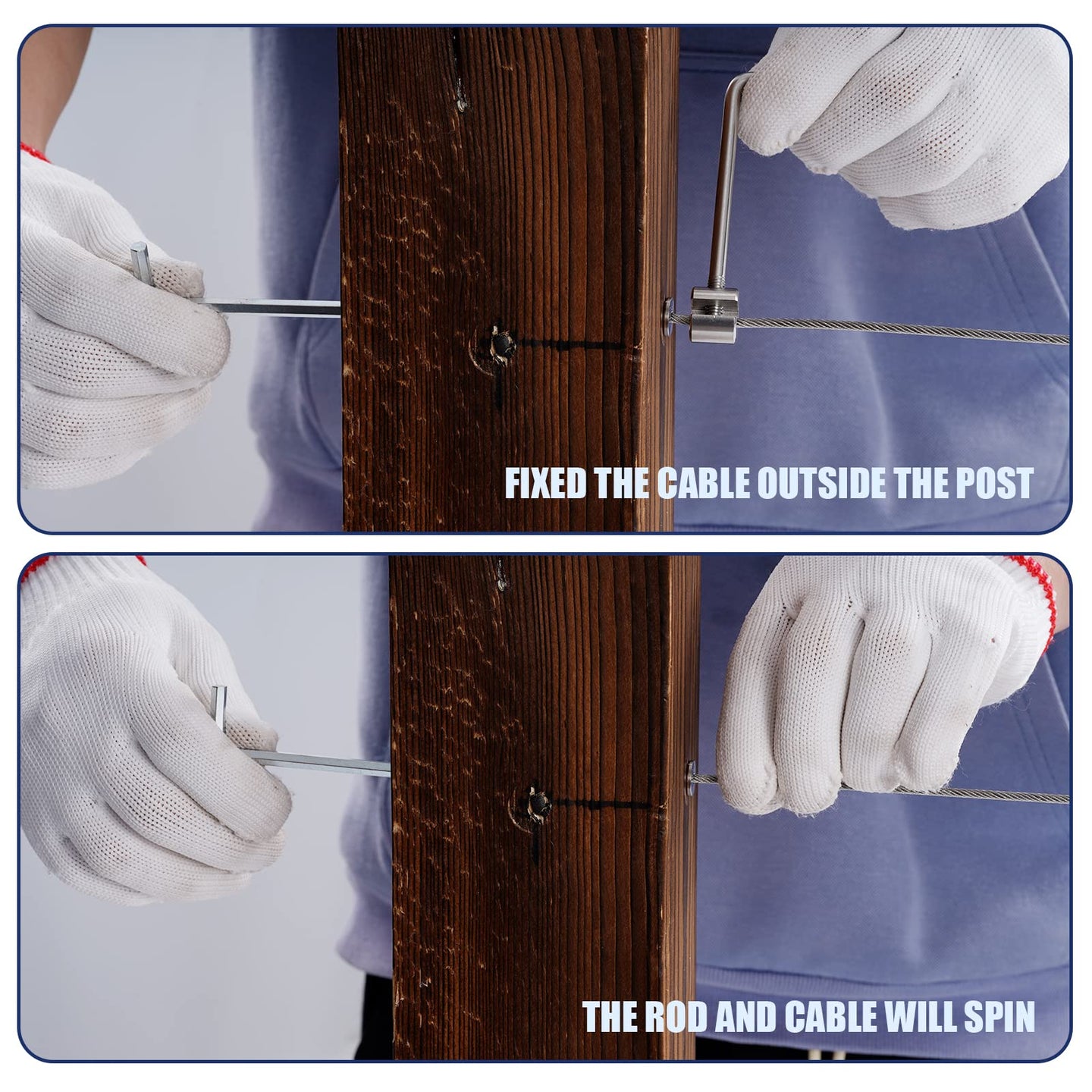

How to Use:
- Insert: Place the wire rope into the slot of the Fixed Tool.
- Clamp: Tighten the locking screw on the tool until it grips the cable firmly.
- Hold: Hold the Fixed Tool in one hand (to stop the cable from turning).
- Tension: Use your hex wrench or spanner with the other hand to tighten the Invisible Receiver/Tensioner.
- Release: Once tension is achieved, loosen the tool and remove it from the cable.
FAQ
Q: Is this tool necessary?
A: It is highly recommended for "Invisible" or "Hidden" cable railing kits. Without it, tensioning the cable can be very difficult because the cable wants to spin inside the post.
Q: Will it damage my cable?
A: No. It is designed to grip the cable securely without crushing or fraying the strands, unlike standard locking pliers which might damage the finish.
Q: Does it fit 1/8" cable?
A: Yes, it is fully adjustable and fits 1/8", 5/32", and 3/16" wire ropes perfectly.
