Achieve the Ultimate Minimalist Look

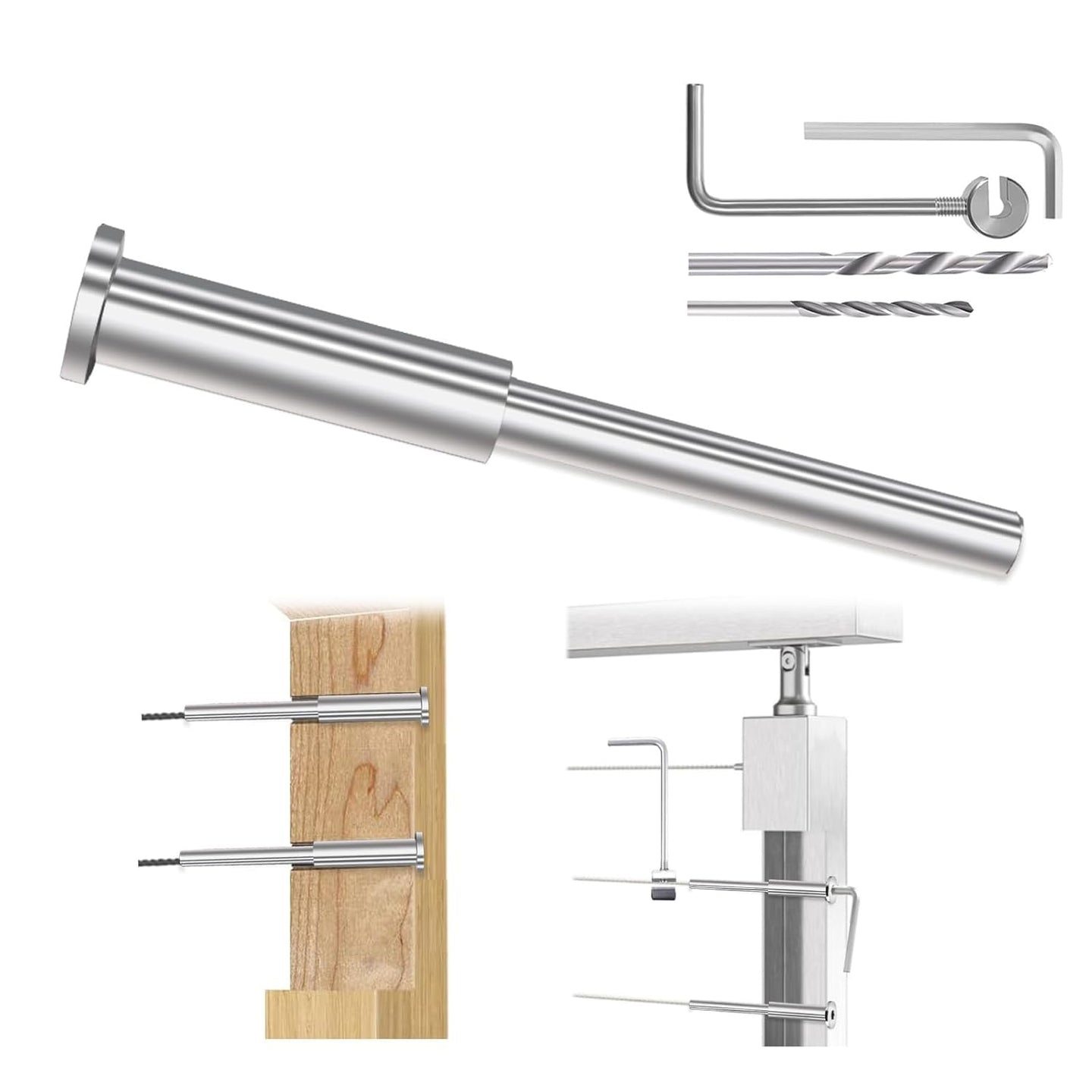

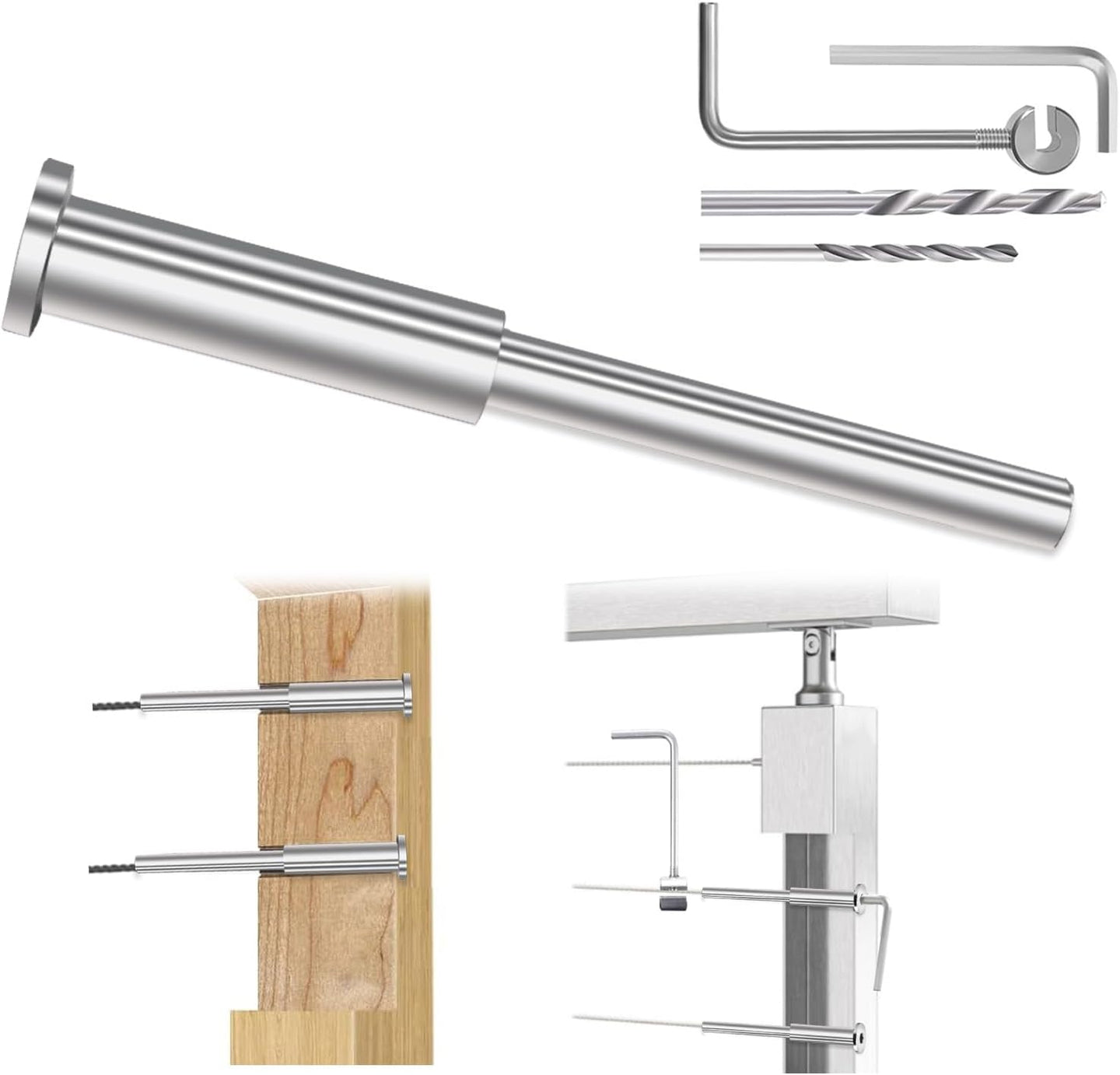

Transform your deck or staircase with our Invisible T316 Stainless Steel Tension Receiver Kit. Unlike traditional turnbuckles that clutter your view, this hardware is designed to hide entirely inside your wood or metal posts, creating a clean, "floating" cable appearance.
Engineered from Marine Grade T316 Stainless Steel, this receiver provides robust tensioning power for 1/8" cable railing systems while offering superior resistance to rust and corrosion, even in coastal environments.
Key Features
- Fully Invisible Design: The tensioner mounts inside the post, leaving only a sleek, flat head visible on the exterior. Perfect for modern architectural styles.
- Marine Grade Durability: Made of solid T316 Stainless Steel, ensuring long-term performance in saltwater and outdoor climates.

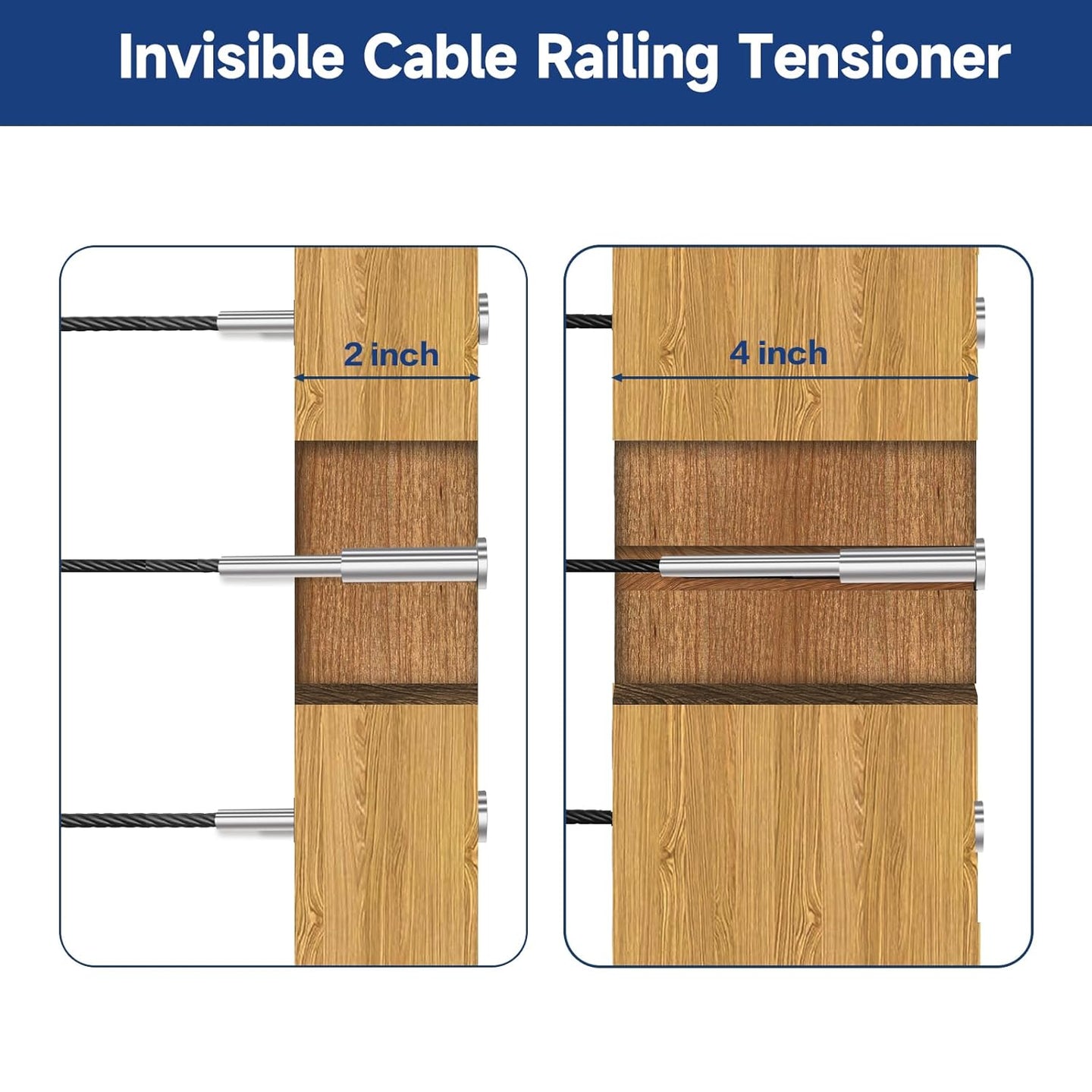

- Universal Compatibility: Works seamlessly with both Metal posts (2" size) and Wood posts (4" size).
- Adjustable Tension: The internal mechanism allows for easy tightening of the cable to prevent sagging over time, using a simple hex wrench.

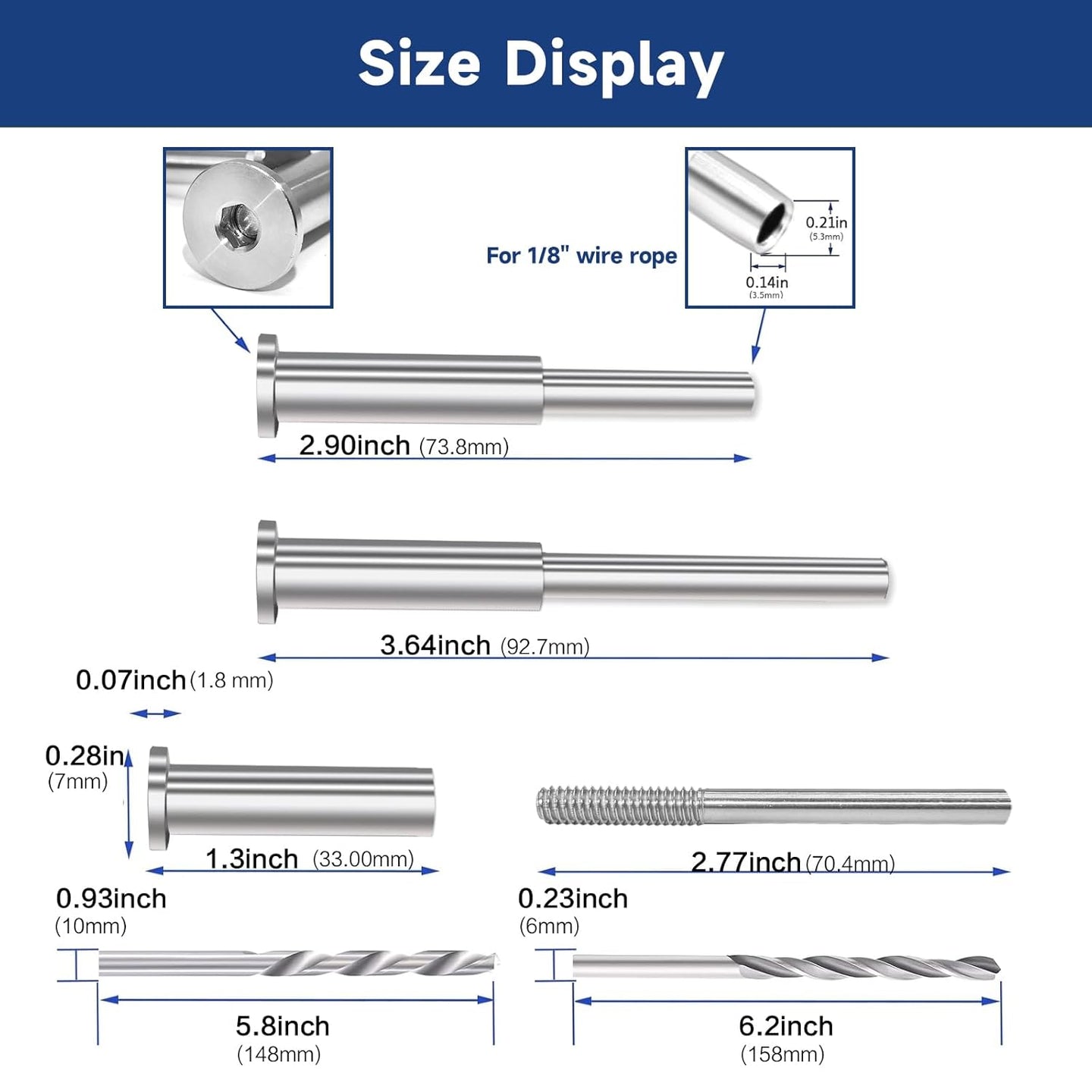

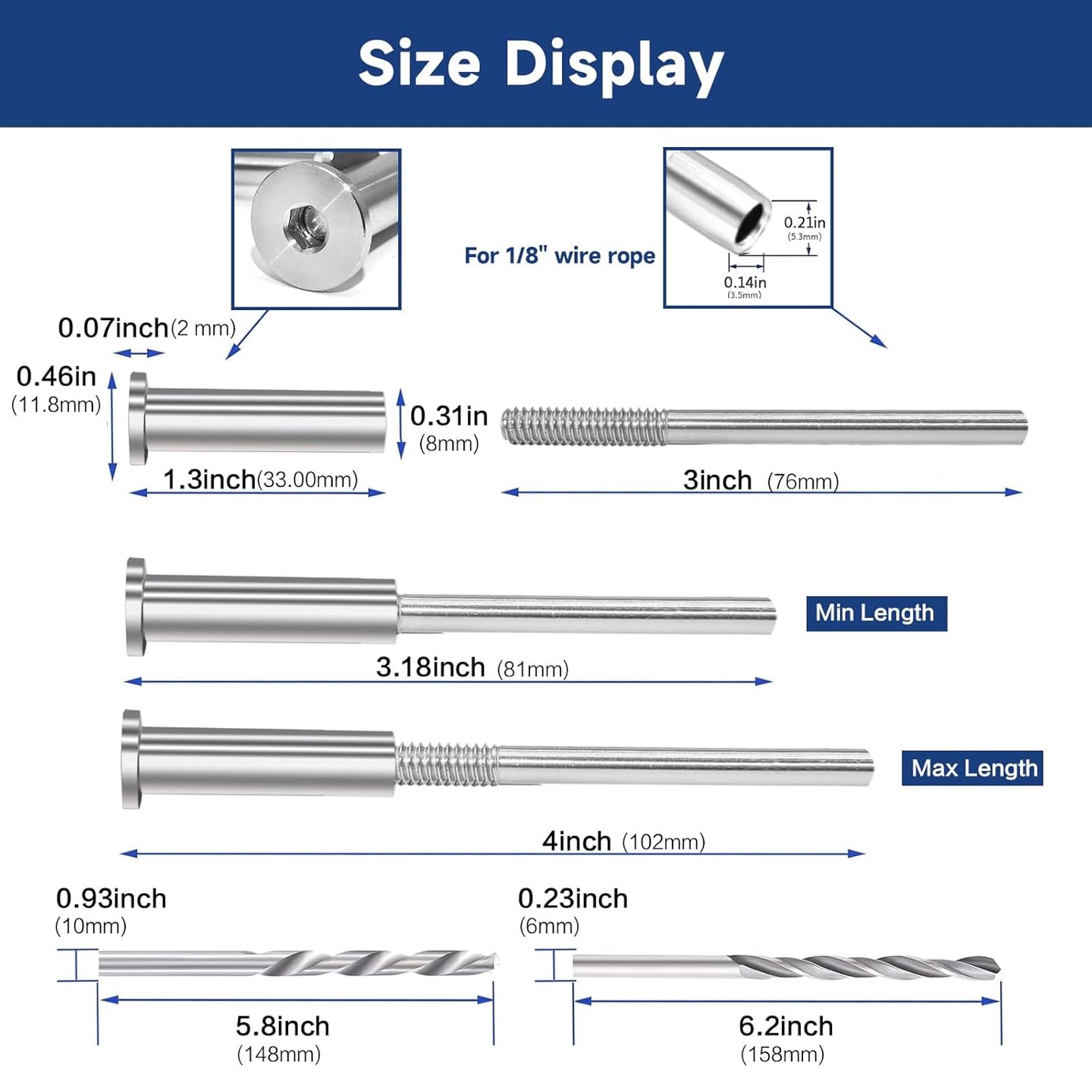

Technical Specifications
| Specification | Details |
|---|---|
| Cable Fit | 1/8" (3.2mm) Stainless Steel Wire Rope |
| Material Grade | T316 Marine Grade Stainless Steel |
| Post Compatibility | Wood Posts (4x4) & Metal Posts (2x2) |
| Type | Tension Receiver (Adjustable End) |
| Installation | Requires Hydraulic Crimping |

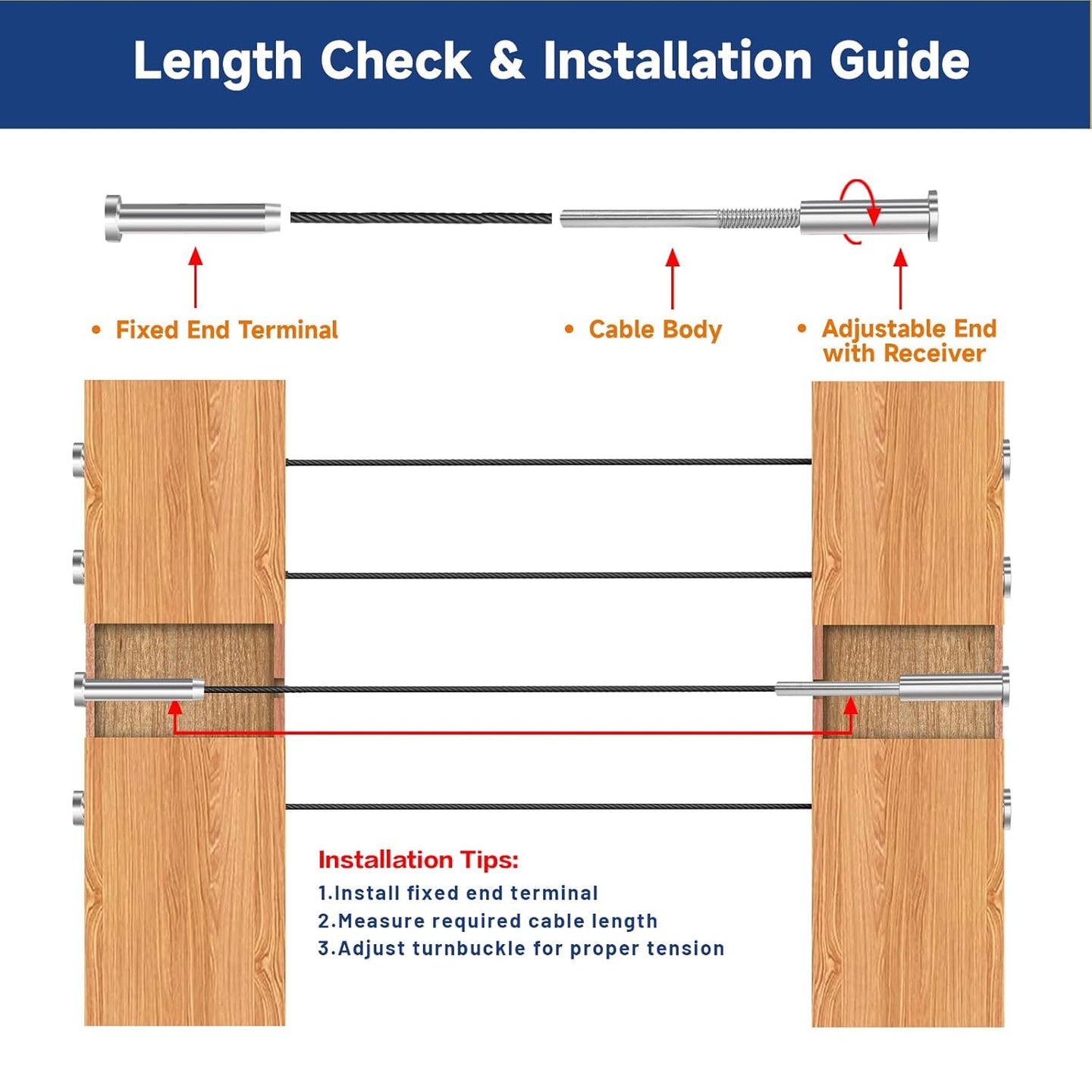

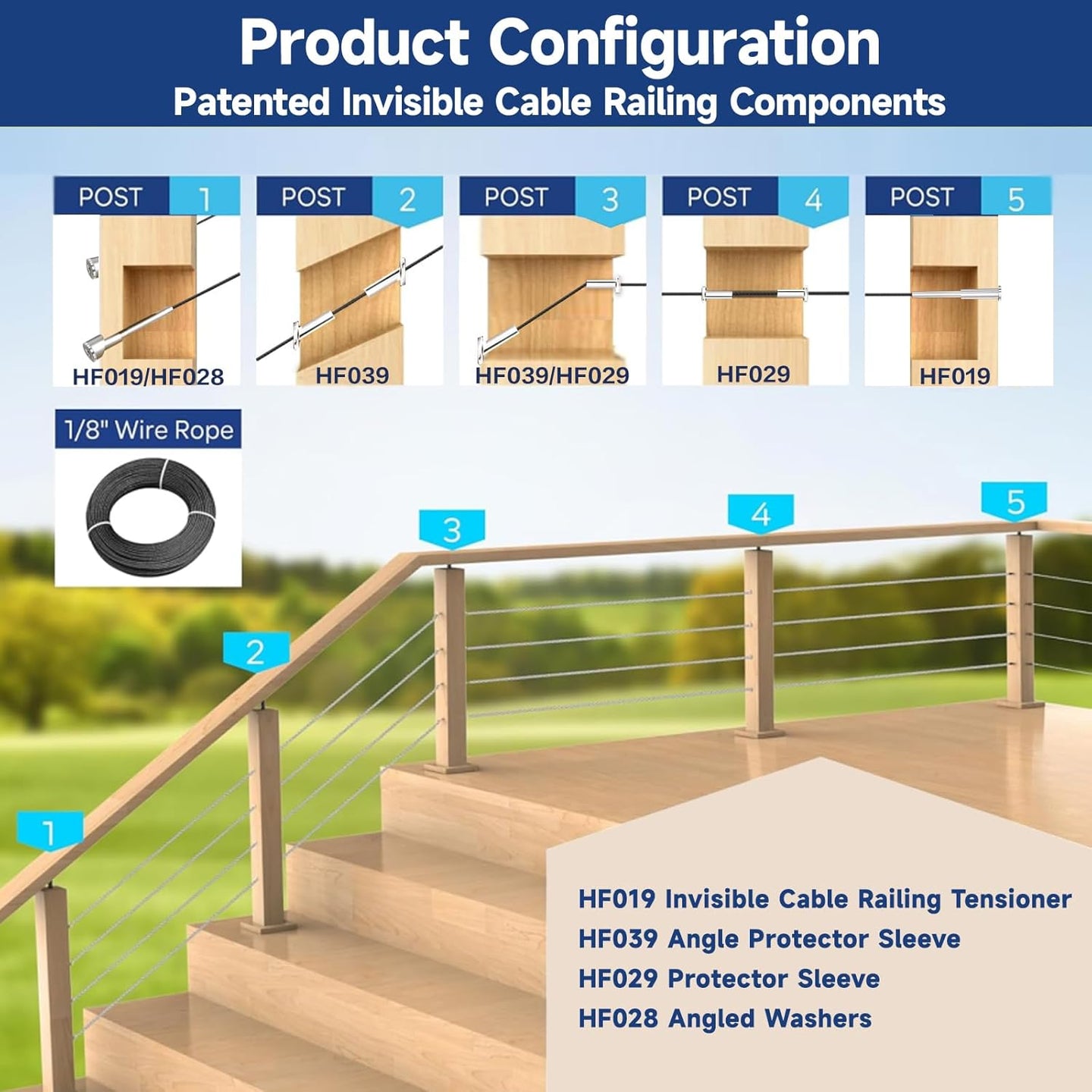

Installation Overview (3-Step Process)
Note: This kit includes the Receiver (Tensioning End). You will need a Swage Stud (Fixed End) for the other side of the post run.
- Prepare: Drill the appropriate holes in your posts. Swage (crimp) the cable to the fixed end terminal and mount it.
- Thread: Run the cable through your intermediate posts to the end post.
- Tension: Cut the cable to length, swage it into this Receiver, insert into the post, and rotate the receiver with a hex key to tighten the wire until taut.
Frequently Asked Questions
Q: Why is this sold as a "Receiver Only" kit?
A: We sell the Receiver (Tensioner) and the Swage Stud (Fixed End) separately to give you flexibility. Some projects require tensioners on both ends (for long runs or corners), while others only need one. This prevents you from paying for hardware you don't need.
Q: Do I need special tools?
A: Yes. Since this is an invisible "swage" system, you will need a Hydraulic Cable Crimper to secure the wire inside the tube. You will also need a cable cutter and a hex wrench (often included).
Q: Can I use this near the ocean?
A: Absolutely. T316 stainless steel is specifically designed for saltwater exposure and offers far better rust resistance than standard T304 steel.

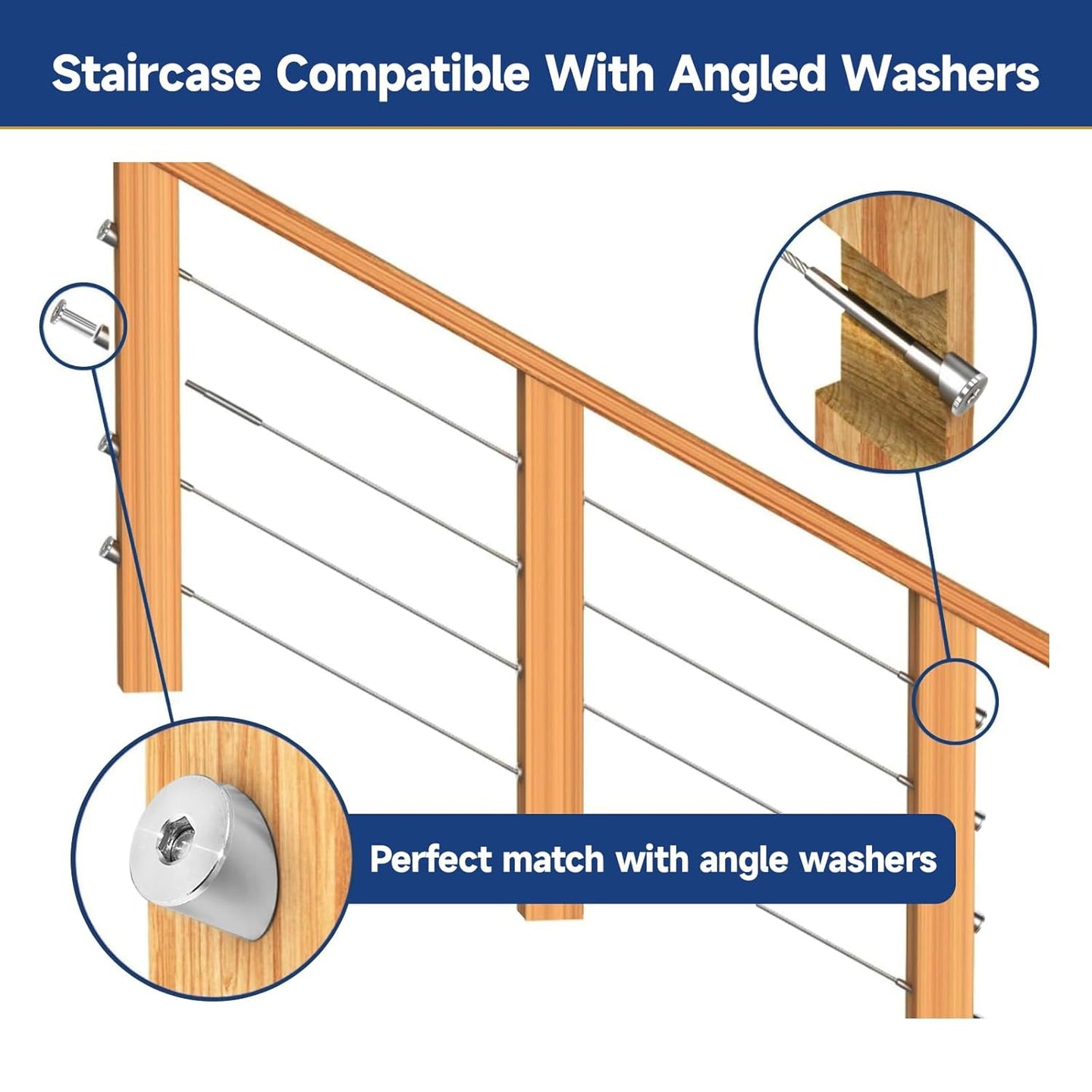

Q: Is this compatible with angled stairs?
A: Yes, but you will need to add Angle Beveled Washers (sold separately) between the post and the receiver to ensure the cable sits at the correct angle without bending the hardware.
