Create Floating Grids Instantly. T316 Marine-Grade Stainless Steel. Available in Compact & Heavy-Duty Profiles.

Overview

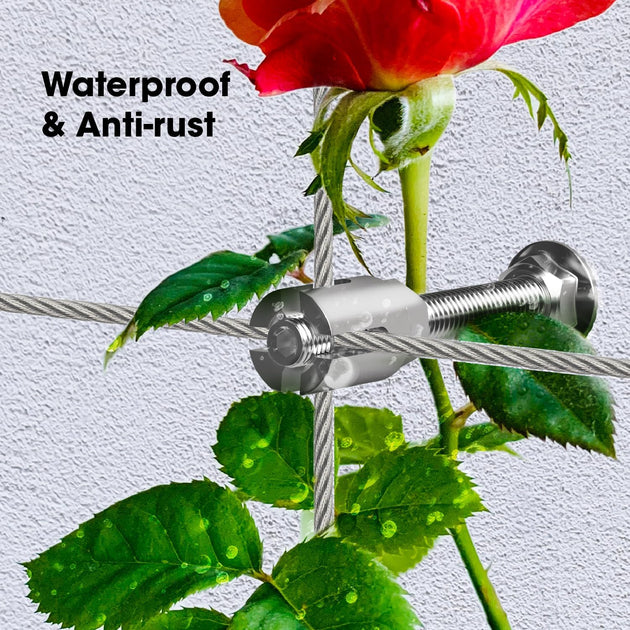

Build professional green walls and railing grids with the RiaYer T316 Wire Rope Cross Clamps. Designed to secure two 1/8" wire ropes at a 90° intersection, these clamps eliminate the need for drilling into walls at every cross point. Crafted from premium T316 Marine-Grade Stainless Steel, they are available in two distinct profiles: a 0.5" Compact Type for sleek, minimalist designs, and a 0.66" Heavy-Duty Type for robust, high-load climbing plants. Both versions ensure a rust-free, permanent hold in outdoor environments.

Key Features

  • 🛠️ Drill-Free Cross Connection: Instantly locks two crossing cables together. No wall drilling required at the intersection—perfect for creating floating trellis grids or secure fence mesh.
  • ⚓ T316 Marine-Grade Steel: Superior corrosion resistance compared to standard 304 steel. Resists UV rays, rain, and salt, ensuring your trellis never stains your wall with rust.
  • 📏 Two Profile Options:
    • Compact (0.5" OD): Lightweight and space-saving, ideal for aesthetic garden trellises and small plants.
    • Heavy-Duty (0.66" OD): Thicker build with 2x the weight, designed for large climbers and structural cable railings.
  • 🔄 Reusable & Adjustable: Features a simple grub screw mechanism (Allen key included). Easily loosen to adjust grid spacing or disassemble for reuse in future projects.
  • ✨ Polished Aesthetic: A smooth, polished finish with no sharp edges prevents damage to plant stems and provides a modern, industrial look to your architecture.

Specifications

Material T316 Marine Grade Stainless Steel
Cable Compatibility Fits 1/8" (3.2mm) Wire Rope
Outer Diameter (O.D.) 0.5" (Compact) / 0.66" (Heavy-Duty)
Unit Weight 0.027 lbs / 0.051 lbs
Total Height 0.71" (18.2mm) - Universal
Slot Width 0.14" (3.6mm)
Locking Mechanism Internal Grub Screw

Installation Guide

  1. Position Wires: Run your vertical and horizontal wire ropes to form your desired grid pattern. Ensure lines are taut.
  2. Insert Clamp: Place the cross clamp at the intersection point. The slots are designed to seat two perpendicular wires perfectly.
  3. Tighten Screw: Insert the grub screw into the top threaded hole. Use the included Allen key to tighten it down.
  4. Secure: Tighten until the screw firmly grips both wires, locking the 90° angle in place.

What's in the Box?

  • 1x RiaYer Wire Rope Cross Clamps (Selected Size)
  • 1x Grub Screws (Pre-matched)
  • 1x Allen Key Tool
  • *Note: Wire rope is not included. Please select "Compact" or "Heavy-Duty" from the menu.

Versatile Applications

Ideal for architectural and garden projects:

  • ✔ Green Wall Trellises
  • ✔ Cable Railing Infills
  • ✔ Garden Climbing Wires
  • ✔ Vineyard Wire Systems
  • ✔ Architectural Mesh
  • ✔ Decorative Fencing

Why Choose RiaYer?

We offer choices, not compromises. Whether you need the "Light-Compact" look for a delicate rose garden or the "Heavy-Duty" build for a structural railing, RiaYer provides T316 stainless steel quality across the board. Our precision machining ensures easy assembly and a lifetime of rust-free performance.

RiaYer

T316 Wire Rope Cross Clamps (20 Pack) | For 1/8" Cable Trellis (Compact/Heavy-Duty)

SKU B0FGCDFCRX
¥39.99
