Socket Style Fitting. Accepts 1.2" O.D. Tubing. Available in 60° & 90° Angles.

Overview

Secure your marine rigging with the RiaYer 316 Stainless Steel Rail Fitting. Designed as a heavy-duty socket base, this fitting features a precise 1.2-inch Inner Diameter (I.D.). Simply slide your 1.2" Outer Diameter (O.D.) rail tube inside the fitting, and lock it down with the included set screws. Whether you are installing a vertical stanchion (90°) or an angled rub rail (60°), this slide-in design ensures a seamless, wobble-free connection.

Key Features

  • 📥 Slide-In Socket Design: The fitting acts as a robust socket with a 1.2" opening. Your rail tubing inserts directly into the fitting for maximum structural support.
  • 📏 Precision 1.2" I.D. Fit: Machined with a strict 1.2-inch (approx. 30.5mm) inner diameter to perfectly accommodate standard 1.2" O.D. marine tubes without loose gaps.
  • 📐 60° & 90° Options: One system, two angles. Use the 90° base for upright posts and the 60° base for angled supports. Both accept the same 1.2" tube size.
  • ⚓ 316 Marine-Grade Steel: Crafted from solid 316 stainless steel, offering superior resistance to saltwater pitting and corrosion compared to standard 304 or zinc alloy fittings.
  • 🔒 Dual-Screw Locking: Once the tube is inserted, dual hex set screws tighten against the tube wall, locking it firmly in place to prevent rotation or pull-out.

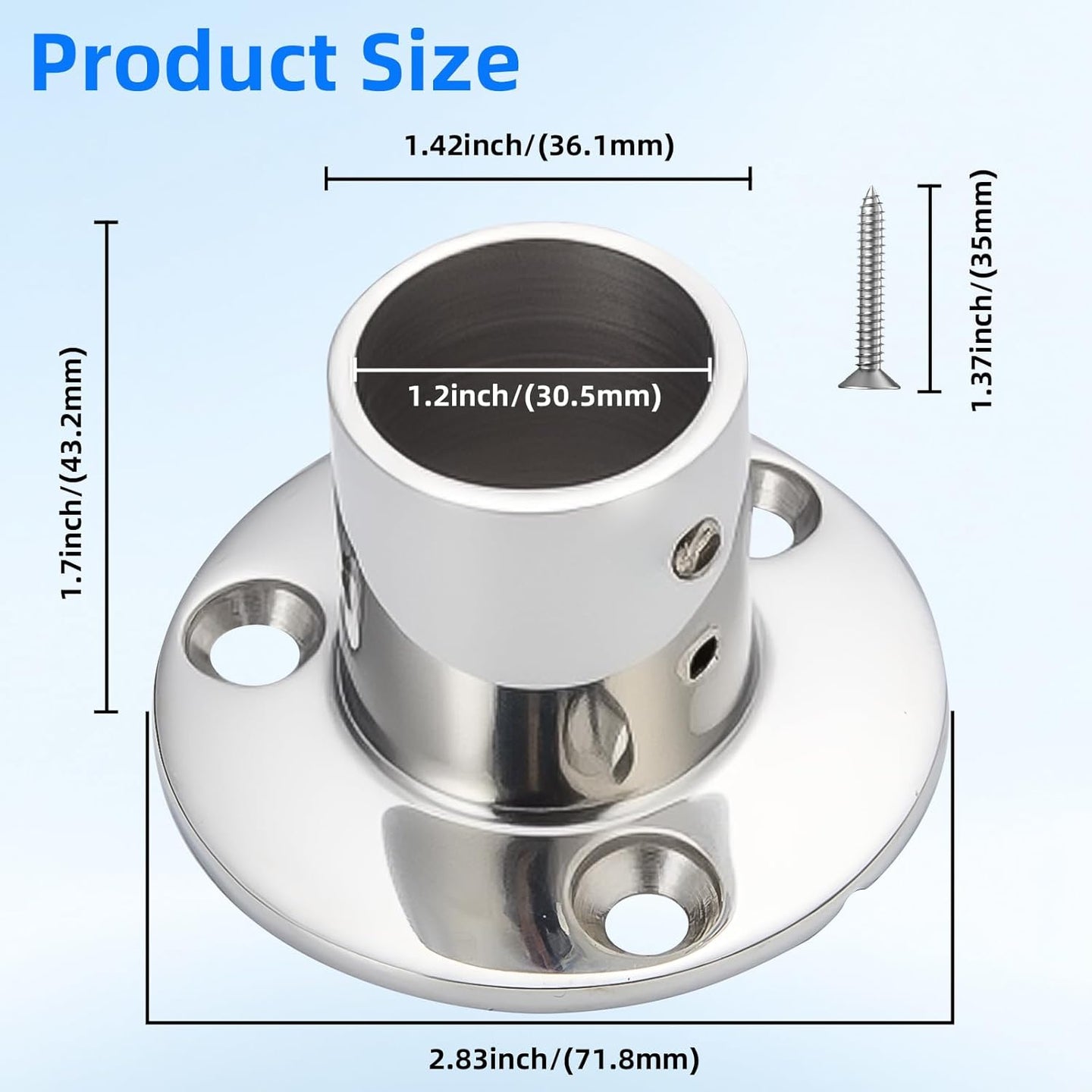

Specifications

Fitting Type Socket Base (Tube slides inside)
Inner Diameter (I.D.) 1.2" (30.5mm)
For Tube Size 1.2" Outer Diameter (O.D.)
Available Angles 60° / 90° (Select from menu)
Material 316 Marine Grade Stainless Steel
Locking Mechanism Dual Hex Set Screws

Installation Guide

  1. Position & Mark: Place the fitting base on your deck or mounting surface. Mark the drill holes through the base plate.
  2. Mount the Base: Drill pilot holes and secure the fitting to the surface using appropriate marine-grade screws or bolts (ensure sealant is used for waterproof decks).
  3. Insert Tube: Slide your 1.2" O.D. rail tubing into the fitting socket. Ensure it seats fully for maximum support.
  4. Lock & Tighten: Use the included hex key to tighten the dual set screws on the side of the fitting until the tube is firmly locked in position.

What's in the Box?

  • 1x RiaYer 316 SS Rail Fitting (1.2" I.D. Socket)
  • 1x Hex Key Tool
  • 2x Set Screws
  • *Note: Mounting deck screws are not included as requirements vary by surface (fiberglass, wood, or steel).

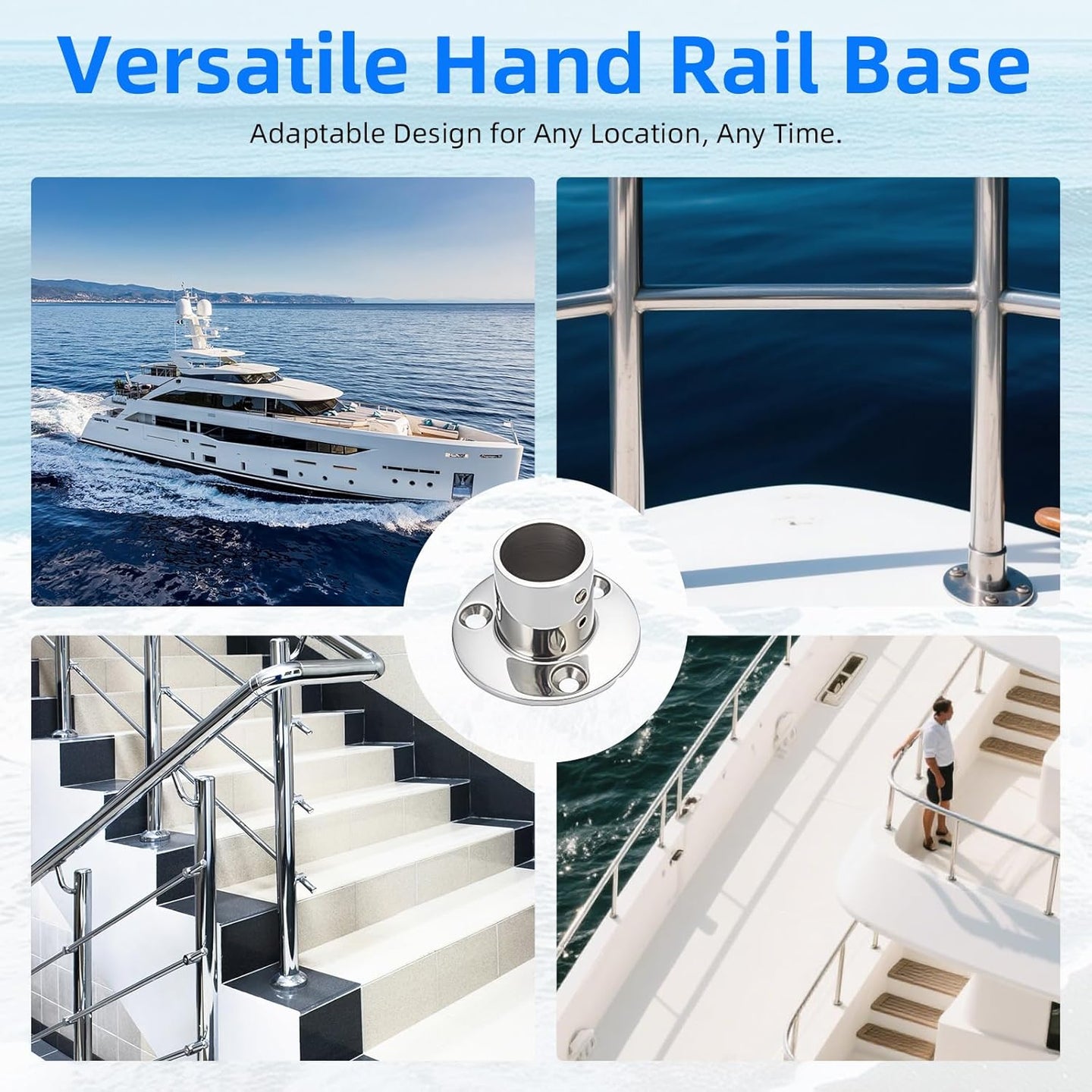

Versatile Applications

Designed for 1.2" tube structures:

  • ✔ Yacht Handrail Base
  • ✔ Angled Rub Rail Mount
  • ✔ Stanchion Base Support
  • ✔ Bimini Top Frame Joint
  • ✔ Deck Railing Socket
  • ✔ Swim Platform Rail Base

Why Choose RiaYer?

We prioritize precise tolerances. Our rail fittings are machined with an exacting 1.2-inch inner diameter to ensure your rail tubing slides in smoothly but stays tight. Combined with true 316 stainless steel, RiaYer hardware guarantees a professional, rust-free installation that withstands the marine environment.

RiaYer

1.2" I.D. Marine Rail Base | 90° Socket Fitting for 1.2" Tubing

SKU B0F92FQKZN
¥25.99
