Keyless Lift-to-Open Cap. Angled Neck for Tight Spaces. 316 Stainless Steel. Fits 1.5" Diesel Hose.
Overview
Streamline your refueling process with the RiaYer Angled Diesel Deck Fill. Featuring a convenient Keyless Design, this filler cap uses a built-in lift-tab mechanism—simply flip it up and turn to open, no keys required. The body is cast from mirror-polished 316 Marine-Grade Stainless Steel and features a 45-Degree Angled Neck. This angled design is a lifesaver for installations where space is tight or where the fuel hose needs to route horizontally under the gunwale, preventing hose kinks and ensuring smooth fuel flow.
Key Features
- 🔓 Keyless Convenience: No more hunting for deck keys. The cap features an integrated fold-down tab. Just lift, twist, and fill. Perfect for frequent refueling.
- 📐 45° Angled Neck: The elbow shape directs the hose connection sideways, reducing strain on fuel lines and fitting perfectly in shallow deck clearances where straight fillers won't work.
- ⚓ 316 Marine-Grade Steel: Constructed from superior 316 stainless steel to withstand saltwater corrosion. The high-polish finish remains bright and rust-free season after season.
- 💧 Watertight Seal: Despite being keyless, it maintains a secure seal. High-quality O-rings prevent water from entering your diesel tank and keep fuel odors locked inside.
- 🔗 Integrated Retaining Chain: Includes a stainless steel safety chain attached to the cap, ensuring it stays connected to the filler body and never gets dropped overboard.
Specifications
| Fuel Type | DIESEL (Engraved on Cap) |
| Hose Compatibility | Fits 1.5" (38mm) I.D. Hose |
| Neck Style | Angled / Elbow (approx. 45°) |
| Material | 316 Stainless Steel |
| Flange Diameter | 2.9" (74mm) |
| Cap Diameter | 1.77" (45mm) |
| Overall Depth | 3.3" (84mm) |
| Cap Mechanism | Keyless Flip-Tab |

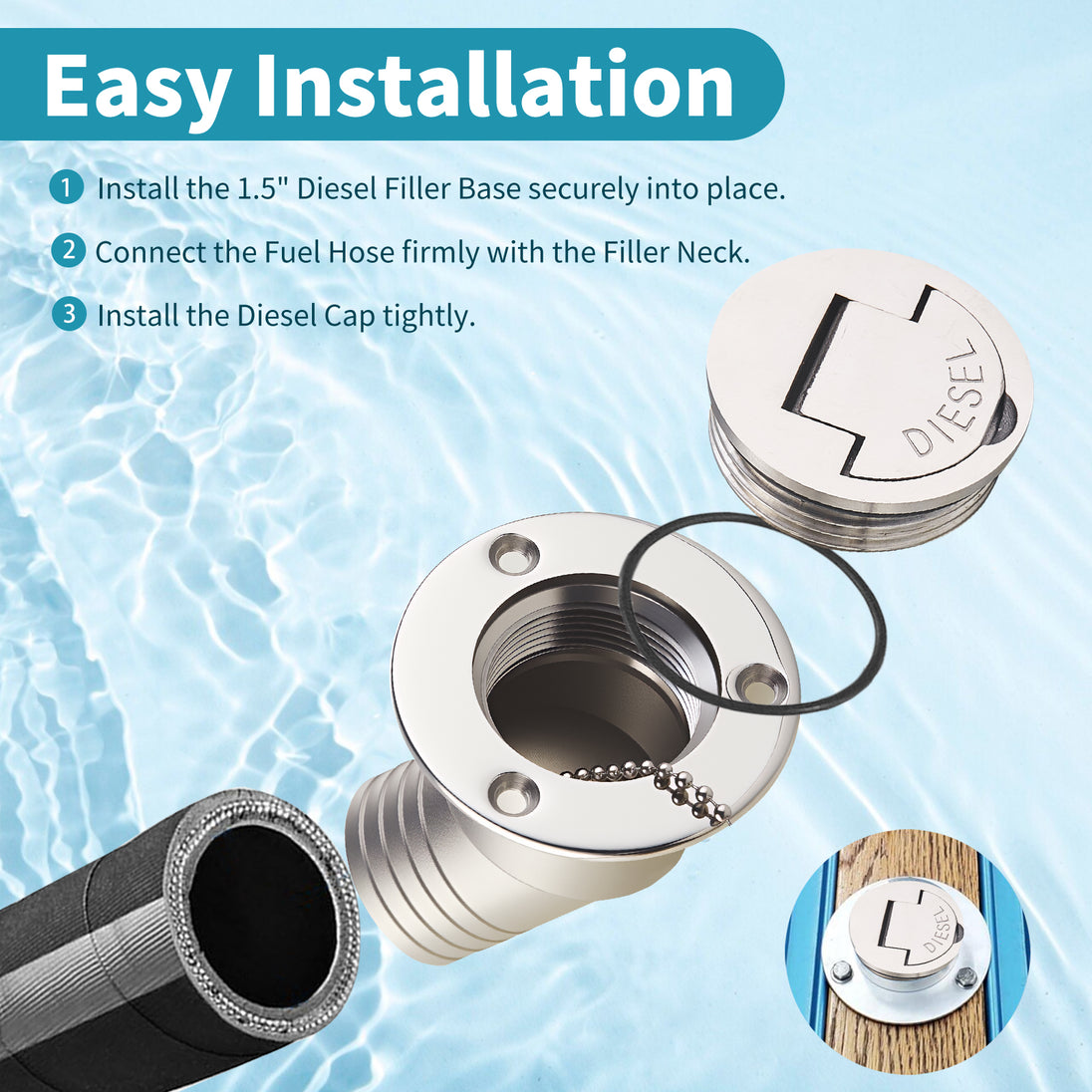

Installation Guide
- Check Clearance: Ensure you have enough space under the deck for the angled neck. The angled design requires less vertical depth but more horizontal space for the hose.
- Hole Saw: Cut a hole in the mounting surface to accommodate the body (approx. 1.6" / 40mm hole saw recommended).
- Connect Hose: Fit your 1.5" diesel hose onto the barbed neck. The angle allows the hose to run smoothly without kinking. Secure with double stainless steel hose clamps.
- Mounting: Apply marine sealant under the flange, insert the unit, and secure it with 3 countersunk screws (not included).
What's in the Box?
- 1x RiaYer 316 SS Angled Diesel Deck Fill
- 1x Keyless Cap (Pre-installed)
- *Note: Mounting screws and hose clamps are not included.
Versatile Applications
Ideal for vessels with tight hose routing:
- ✔ Motorboats
- ✔ Sailing Yachts
- ✔ Fishing Boats
- ✔ RV Water/Fuel Ports
- ✔ Trucks & Campers
- ✔ Farm Equipment
Frequently Asked Questions
Q: Why choose an "Angled" neck over a "Straight" one?
A: An angled (or elbow) neck is essential when you have limited vertical space under the gunwale, or when your fuel hose needs to run horizontally immediately after the fill point. It prevents the hose from kinking, which can restrict fuel flow.
Q: Is the Keyless cap secure?
A: While it doesn't lock against theft (no key), it is mechanically secure. The threaded design combined with the O-ring ensures it won't vibrate loose and stays watertight.
Q: Does this fit standard hoses?
A: Yes, it is designed for the industry-standard 1-1/2 inch (38mm) Inner Diameter marine fuel hose.
Why Choose RiaYer?
We focus on solutions that make boating easier. Our Keyless Angled Deck Fill solves two problems at once: it eliminates the hassle of finding keys, and its angled design solves difficult hose routing issues. Made from tested 316 Stainless Steel, it guarantees a lifetime of shine and performance.
Keyless Lift-to-Open Cap. Angled Neck for Tight Spaces. 316 Stainless Steel. Fits 1.5" Diesel Hose.
Overview
Streamline your refueling process with the RiaYer Angled Diesel Deck Fill. Featuring a convenient Keyless Design, this filler cap uses a built-in lift-tab mechanism—simply flip it up and turn to open, no keys required. The body is cast from mirror-polished 316 Marine-Grade Stainless Steel and features a 45-Degree Angled Neck. This angled design is a lifesaver for installations where space is tight or where the fuel hose needs to route horizontally under the gunwale, preventing hose kinks and ensuring smooth fuel flow.
Key Features
- 🔓 Keyless Convenience: No more hunting for deck keys. The cap features an integrated fold-down tab. Just lift, twist, and fill. Perfect for frequent refueling.
- 📐 45° Angled Neck: The elbow shape directs the hose connection sideways, reducing strain on fuel lines and fitting perfectly in shallow deck clearances where straight fillers won't work.
- ⚓ 316 Marine-Grade Steel: Constructed from superior 316 stainless steel to withstand saltwater corrosion. The high-polish finish remains bright and rust-free season after season.
- 💧 Watertight Seal: Despite being keyless, it maintains a secure seal. High-quality O-rings prevent water from entering your diesel tank and keep fuel odors locked inside.
- 🔗 Integrated Retaining Chain: Includes a stainless steel safety chain attached to the cap, ensuring it stays connected to the filler body and never gets dropped overboard.
Specifications
| Fuel Type | DIESEL (Engraved on Cap) |
| Hose Compatibility | Fits 1.5" (38mm) I.D. Hose |
| Neck Style | Angled / Elbow (approx. 45°) |
| Material | 316 Stainless Steel |
| Flange Diameter | 2.9" (74mm) |
| Cap Diameter | 1.77" (45mm) |
| Overall Depth | 3.3" (84mm) |
| Cap Mechanism | Keyless Flip-Tab |
Installation Guide
- Check Clearance: Ensure you have enough space under the deck for the angled neck. The angled design requires less vertical depth but more horizontal space for the hose.
- Hole Saw: Cut a hole in the mounting surface to accommodate the body (approx. 1.6" / 40mm hole saw recommended).
- Connect Hose: Fit your 1.5" diesel hose onto the barbed neck. The angle allows the hose to run smoothly without kinking. Secure with double stainless steel hose clamps.
- Mounting: Apply marine sealant under the flange, insert the unit, and secure it with 3 countersunk screws (not included).
What's in the Box?
- 1x RiaYer 316 SS Angled Diesel Deck Fill
- 1x Keyless Cap (Pre-installed)
- *Note: Mounting screws and hose clamps are not included.
Versatile Applications
Ideal for vessels with tight hose routing:
- ✔ Motorboats
- ✔ Sailing Yachts
- ✔ Fishing Boats
- ✔ RV Water/Fuel Ports
- ✔ Trucks & Campers
- ✔ Farm Equipment
Frequently Asked Questions
Q: Why choose an "Angled" neck over a "Straight" one?
A: An angled (or elbow) neck is essential when you have limited vertical space under the gunwale, or when your fuel hose needs to run horizontally immediately after the fill point. It prevents the hose from kinking, which can restrict fuel flow.
Q: Is the Keyless cap secure?
A: While it doesn't lock against theft (no key), it is mechanically secure. The threaded design combined with the O-ring ensures it won't vibrate loose and stays watertight.
Q: Does this fit standard hoses?
A: Yes, it is designed for the industry-standard 1-1/2 inch (38mm) Inner Diameter marine fuel hose.
Why Choose RiaYer?
We focus on solutions that make boating easier. Our Keyless Angled Deck Fill solves two problems at once: it eliminates the hassle of finding keys, and its angled design solves difficult hose routing issues. Made from tested 316 Stainless Steel, it guarantees a lifetime of shine and performance.
- Regular price
- ¥25.99
Keyless Lift-to-Open Cap. Angled Neck for Tight Spaces. 316 Stainless Steel. Fits 1.5" Diesel Hose.
Overview
Streamline your refueling process with the RiaYer Angled Diesel Deck Fill. Featuring a convenient Keyless Design, this filler cap uses a built-in lift-tab mechanism—simply flip it up and turn to open, no keys required. The body is cast from mirror-polished 316 Marine-Grade Stainless Steel and features a 45-Degree Angled Neck. This angled design is a lifesaver for installations where space is tight or where the fuel hose needs to route horizontally under the gunwale, preventing hose kinks and ensuring smooth fuel flow.
Key Features
- 🔓 Keyless Convenience: No more hunting for deck keys. The cap features an integrated fold-down tab. Just lift, twist, and fill. Perfect for frequent refueling.
- 📐 45° Angled Neck: The elbow shape directs the hose connection sideways, reducing strain on fuel lines and fitting perfectly in shallow deck clearances where straight fillers won't work.
- ⚓ 316 Marine-Grade Steel: Constructed from superior 316 stainless steel to withstand saltwater corrosion. The high-polish finish remains bright and rust-free season after season.
- 💧 Watertight Seal: Despite being keyless, it maintains a secure seal. High-quality O-rings prevent water from entering your diesel tank and keep fuel odors locked inside.
- 🔗 Integrated Retaining Chain: Includes a stainless steel safety chain attached to the cap, ensuring it stays connected to the filler body and never gets dropped overboard.
Specifications
| Fuel Type | DIESEL (Engraved on Cap) |
| Hose Compatibility | Fits 1.5" (38mm) I.D. Hose |
| Neck Style | Angled / Elbow (approx. 45°) |
| Material | 316 Stainless Steel |
| Flange Diameter | 2.9" (74mm) |
| Cap Diameter | 1.77" (45mm) |
| Overall Depth | 3.3" (84mm) |
| Cap Mechanism | Keyless Flip-Tab |
Installation Guide
- Check Clearance: Ensure you have enough space under the deck for the angled neck. The angled design requires less vertical depth but more horizontal space for the hose.
- Hole Saw: Cut a hole in the mounting surface to accommodate the body (approx. 1.6" / 40mm hole saw recommended).
- Connect Hose: Fit your 1.5" diesel hose onto the barbed neck. The angle allows the hose to run smoothly without kinking. Secure with double stainless steel hose clamps.
- Mounting: Apply marine sealant under the flange, insert the unit, and secure it with 3 countersunk screws (not included).
What's in the Box?
- 1x RiaYer 316 SS Angled Diesel Deck Fill
- 1x Keyless Cap (Pre-installed)
- *Note: Mounting screws and hose clamps are not included.
Versatile Applications
Ideal for vessels with tight hose routing:
- ✔ Motorboats
- ✔ Sailing Yachts
- ✔ Fishing Boats
- ✔ RV Water/Fuel Ports
- ✔ Trucks & Campers
- ✔ Farm Equipment
Frequently Asked Questions
Q: Why choose an "Angled" neck over a "Straight" one?
A: An angled (or elbow) neck is essential when you have limited vertical space under the gunwale, or when your fuel hose needs to run horizontally immediately after the fill point. It prevents the hose from kinking, which can restrict fuel flow.
Q: Is the Keyless cap secure?
A: While it doesn't lock against theft (no key), it is mechanically secure. The threaded design combined with the O-ring ensures it won't vibrate loose and stays watertight.
Q: Does this fit standard hoses?
A: Yes, it is designed for the industry-standard 1-1/2 inch (38mm) Inner Diameter marine fuel hose.
Why Choose RiaYer?
We focus on solutions that make boating easier. Our Keyless Angled Deck Fill solves two problems at once: it eliminates the hassle of finding keys, and its angled design solves difficult hose routing issues. Made from tested 316 Stainless Steel, it guarantees a lifetime of shine and performance.
-
Vendor: RiaYer
316 SS Diesel Deck Fill | 1.5" Straight Fuel Filler with Keyed Cap
Regular price ¥24.99 -
Vendor: RiaYer

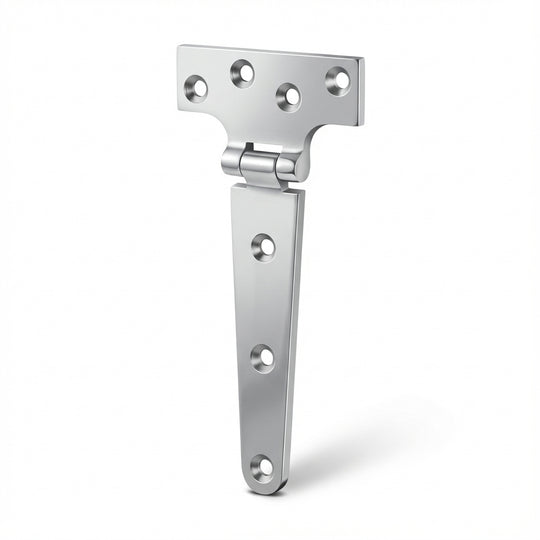

Heavy Duty 316 Stainless Steel T-Hinge | Marine Strap Hinge (4"Options) - Hardware Included
Regular price ¥15.99 -
Vendor: RiaYer
Heavy Duty 316 Stainless Steel T-Hinge | Marine Strap Hinge (6" Options) - Hardware Included
Regular price ¥21.99 -
Vendor: RiaYer

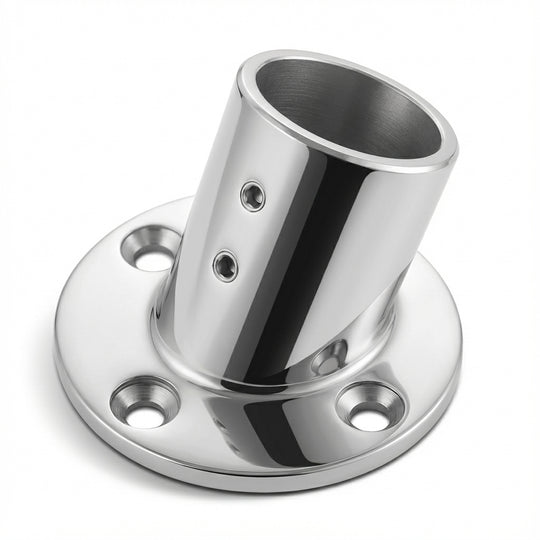

1.2" I.D. Marine Rail Base | 60° Socket Fitting for 1.2" Tubing
