No hydraulic crimper? No problem. Featuring our secure Screw-Lock technology for tool-free installation. Simply tighten the cap to lock the wire. Crafted in Classic Silver for 1/8" cable systems.

Overview

Experience the most reliable DIY installation on the market with the RiaYer Silver Swageless System. We've eliminated the need for heavy hydraulic crimpers. This innovative kit features a Mechanical Screw-Lock Mechanism—simply insert the cable and tighten the cap with a wrench to secure the connection.

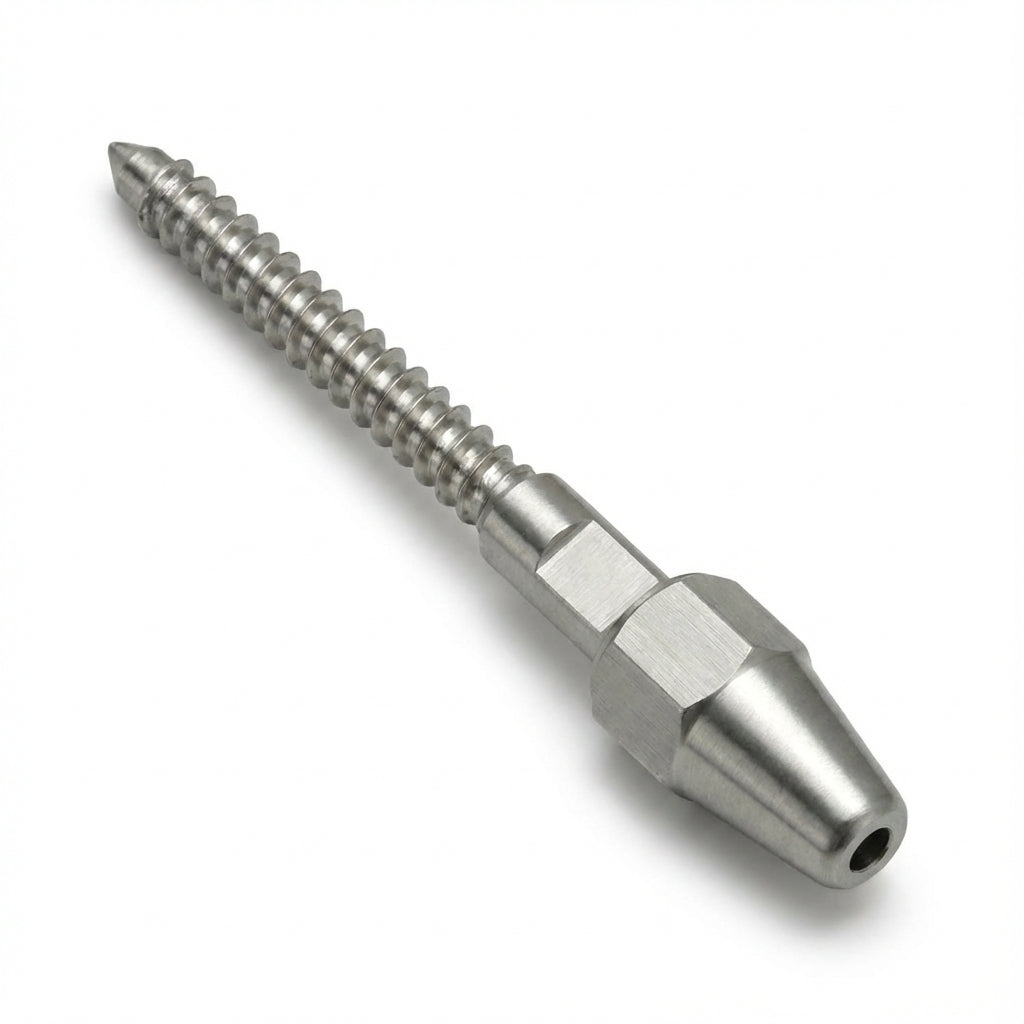

Crafted from marine-grade T316 Stainless Steel, this system is designed to withstand the harshest coastal environments. Its unique design allows the hardware to hide completely inside your wood posts, delivering a flawless, minimalist look.

Why Choose This Swageless Kit?

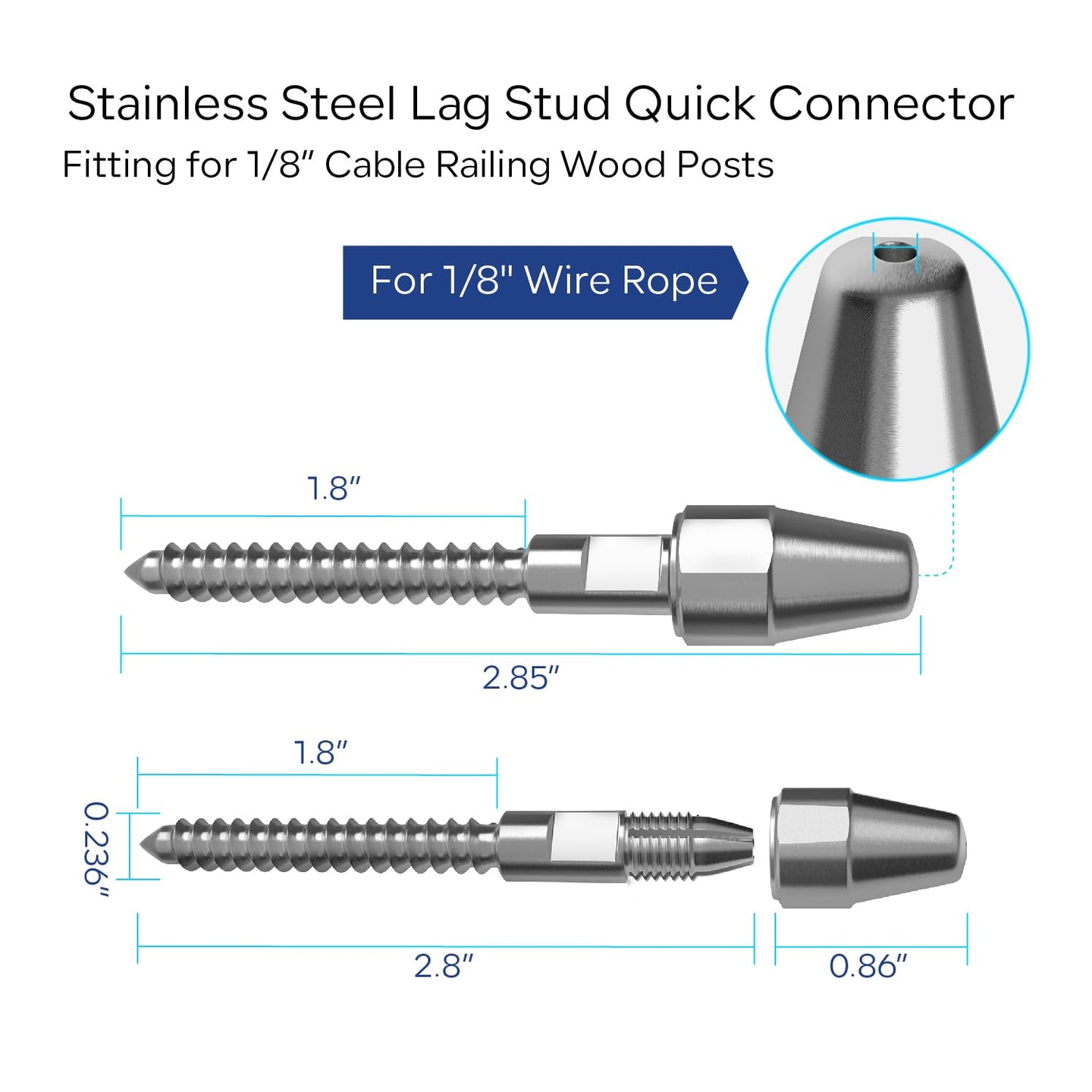

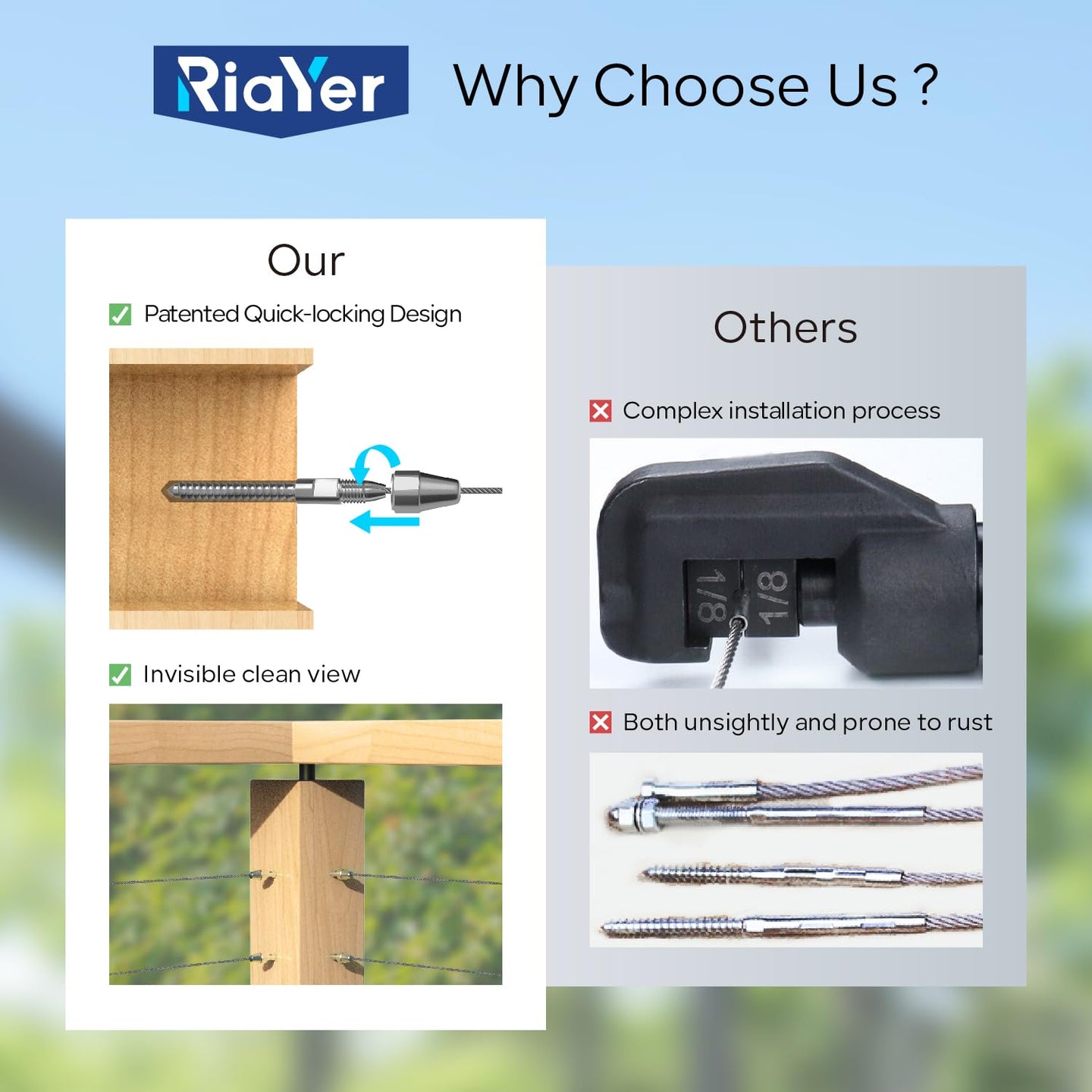

• 🚫 No Hydraulic Crimper Needed: Forget about buying or renting expensive crimping tools. This system uses a mechanical compression design. By simply tightening the end cap, the internal cone compresses and grips the wire rope with industrial strength.
• 🔧 Secure Screw-Lock Technology: Unlike push-lock systems that you can't see working, our Screw-Lock design gives you total control. You physically tighten the connection, ensuring a solid, heavy-duty grip on the cable that you can trust.

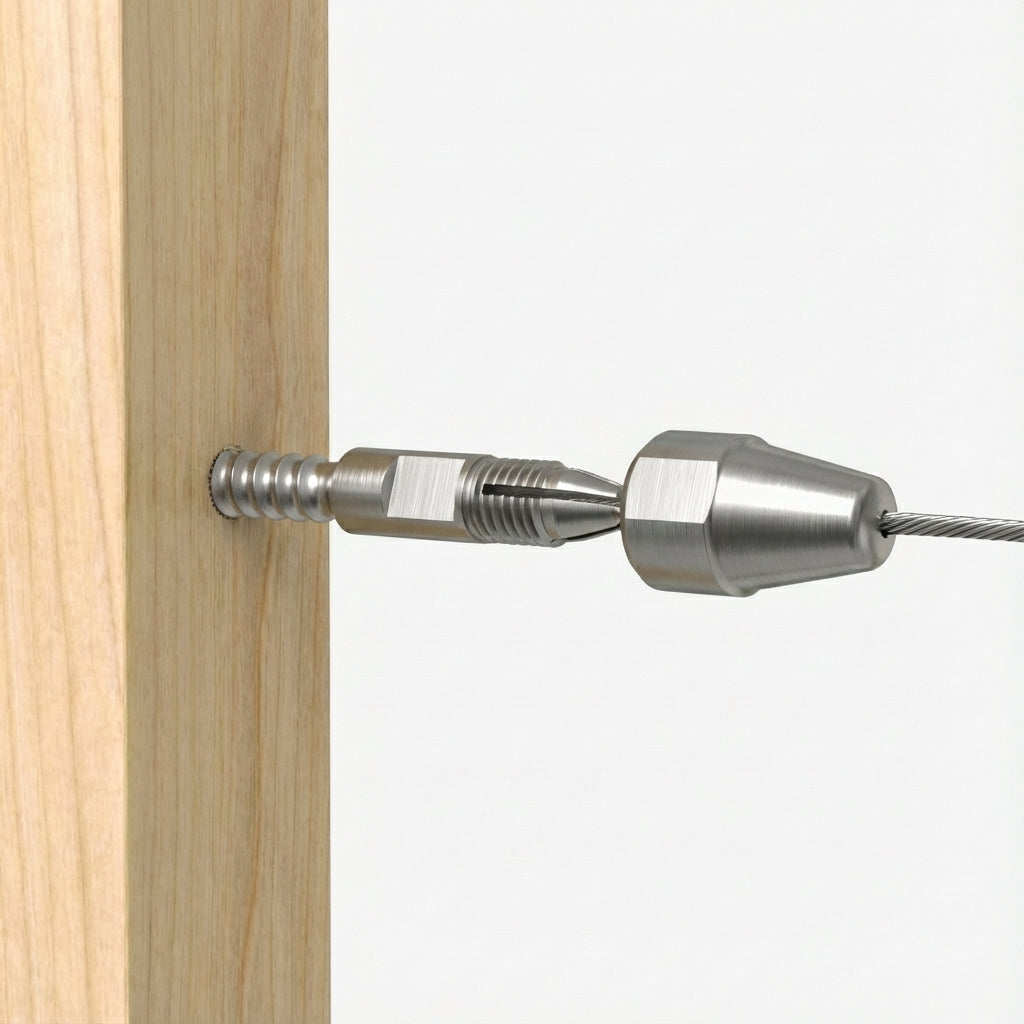

• 🌲 Invisible Wood Post Design: Once installed, the main body hides completely inside the wood post. The Left & Right hand thread design allows you to tension the cable simply by rotating the wire, keeping the look clean and minimal.
• ♻️ 100% Reusable & Forgiving: Made a mistake and cut the cable too long? No problem! Unlike traditional crimped fittings which are permanent, you can simply unscrew the cap, adjust the cable, and lock it again.
• ✨ Classic Silver Finish: High-polished T316 stainless steel offers a timeless, nautical look that naturally resists corrosion and rust.

Technical Specifications

Product Includes (1 set kit):

• 1 x Silver Swageless Left-Thread Tensioner
• 1 x Silver Swageless Right-Thread Tensioner
• 1 x Installation Wrench (For tightening the cap)

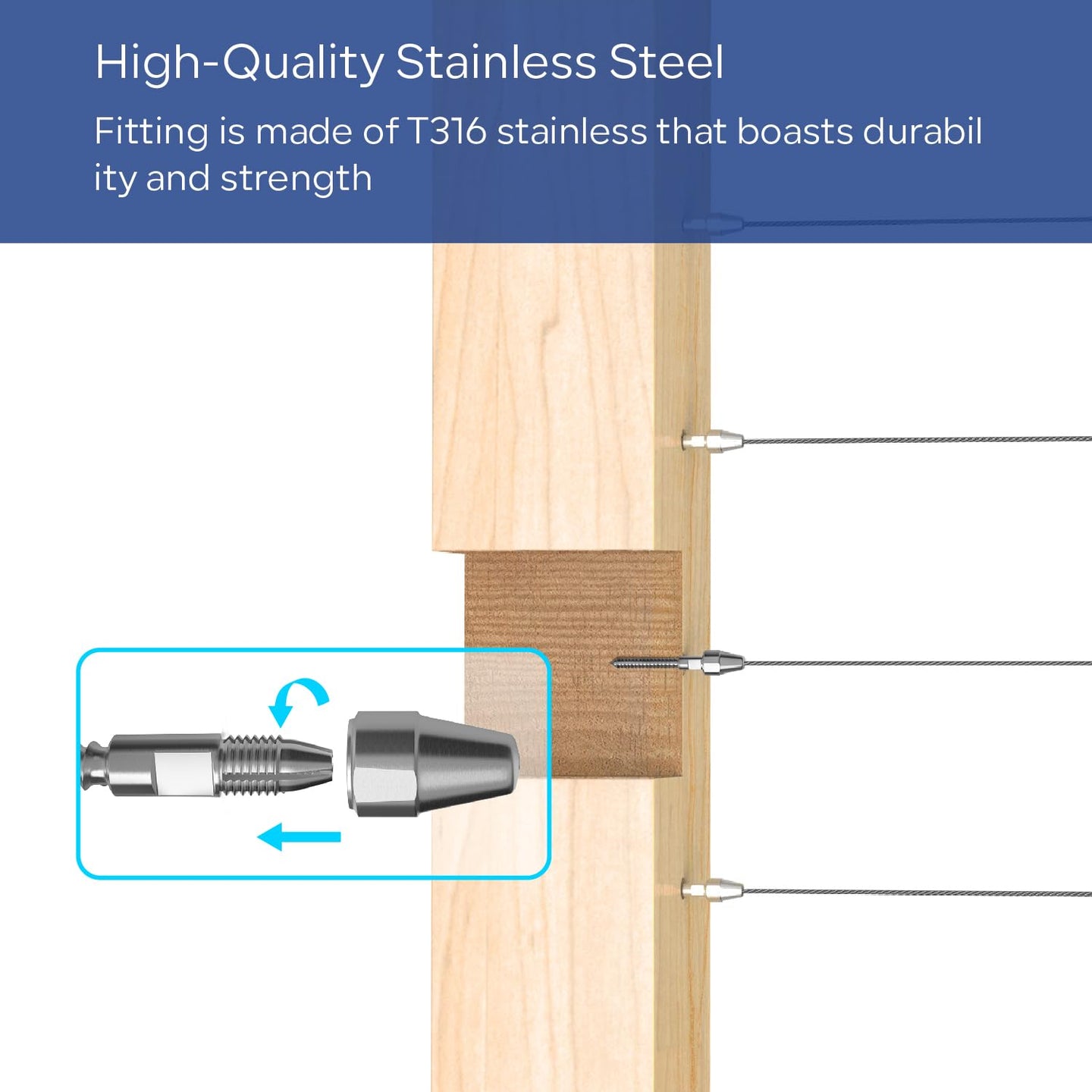

How to Install:

1. Drill: Drill precise holes in your wood posts for the fittings to pass through.
2. Insert: Insert the 1/8" wire rope into the terminal end.
3. Lock (The Key Step): Using the wrenches, tighten the cap (nut) firmly onto the fitting body. This action compresses the internal mechanism, locking the wire rope securely in place.

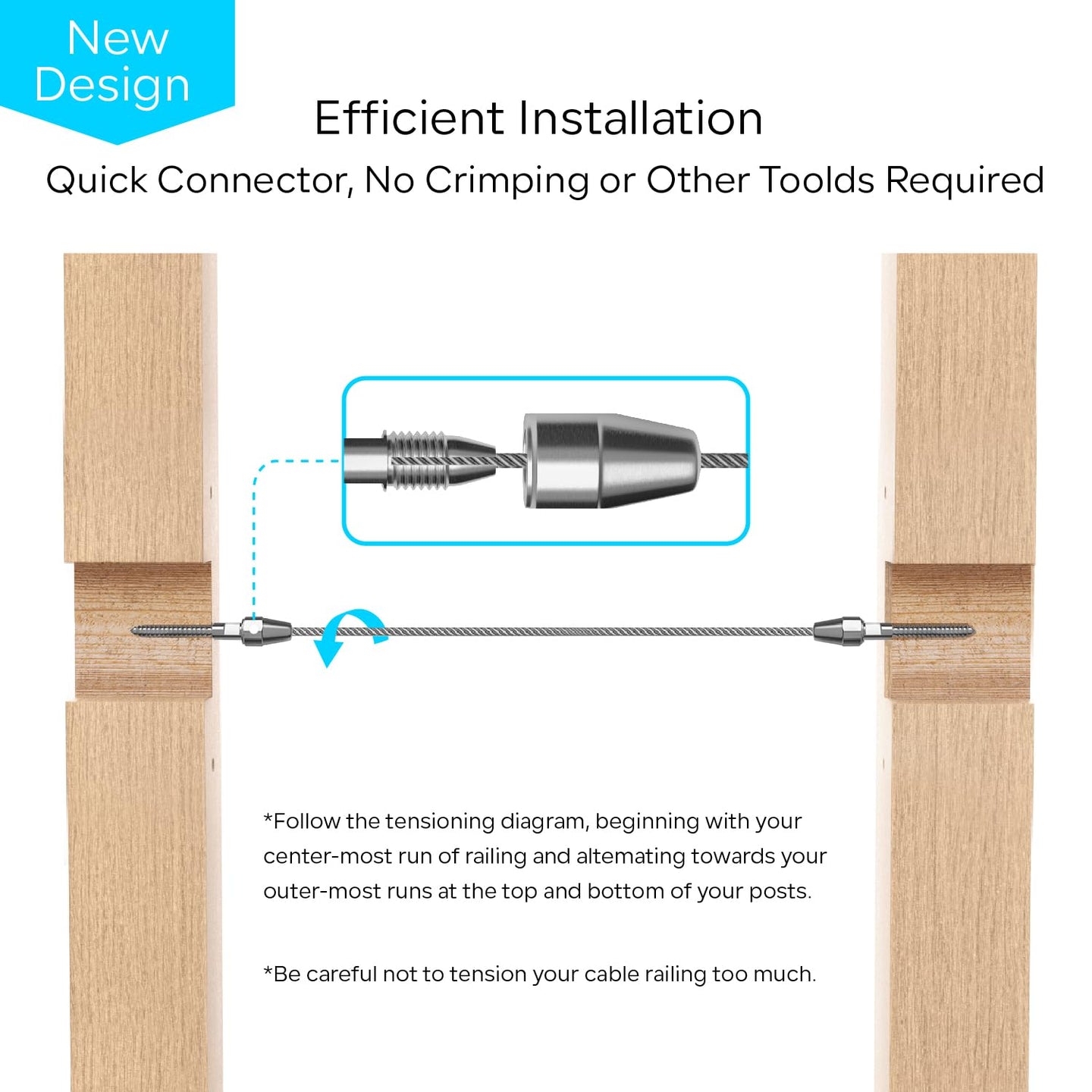

4. Install: Screw the Left-thread tensioner into one post and the Right-thread tensioner into the opposite post.
5. Tension: Rotate the wire rope in the middle. The opposing threads will draw the two ends together, tightening the system perfectly.

FAQ

Q: Do I need a hydraulic crimper for this?
A: No. You only need standard wrenches. The "crimping" happens mechanically when you screw the cap tight, which is much easier for DIY installers.

Q: Is this connection as strong as a crimped one?
A: Yes. The mechanical compression design is industry-standard for high-strength connections. As long as the cap is tightened fully, the pull-out strength meets building safety standards.

Q: Can I re-use it if I cut the cable wrong?
A: Yes! This is a huge advantage over traditional crimping. If you make a mistake, simply unscrew the cap, re-adjust the wire, and tighten it again.
