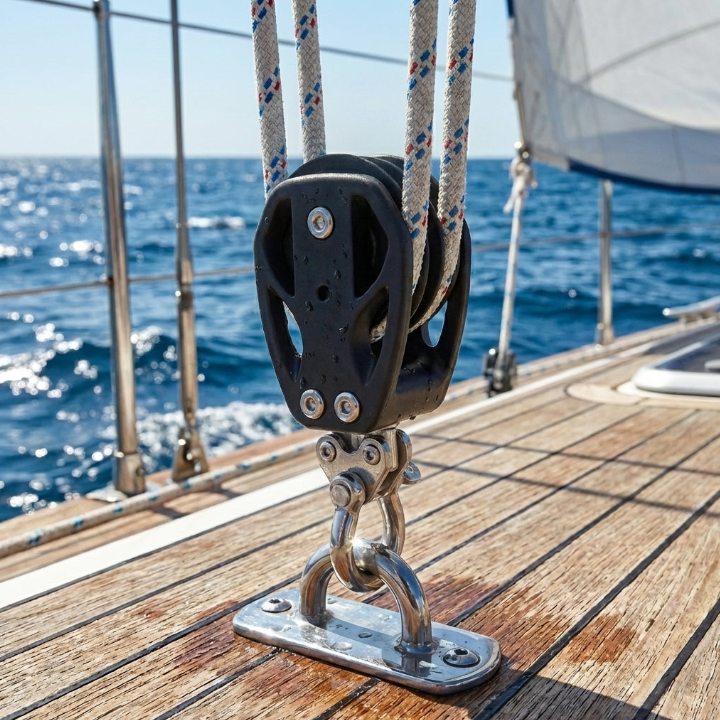

  • Action lifestyle shot of a heavy-duty black marine pulley block installed on a wooden sailboat deck, efficiently guiding and securing rigging ropes at sea.

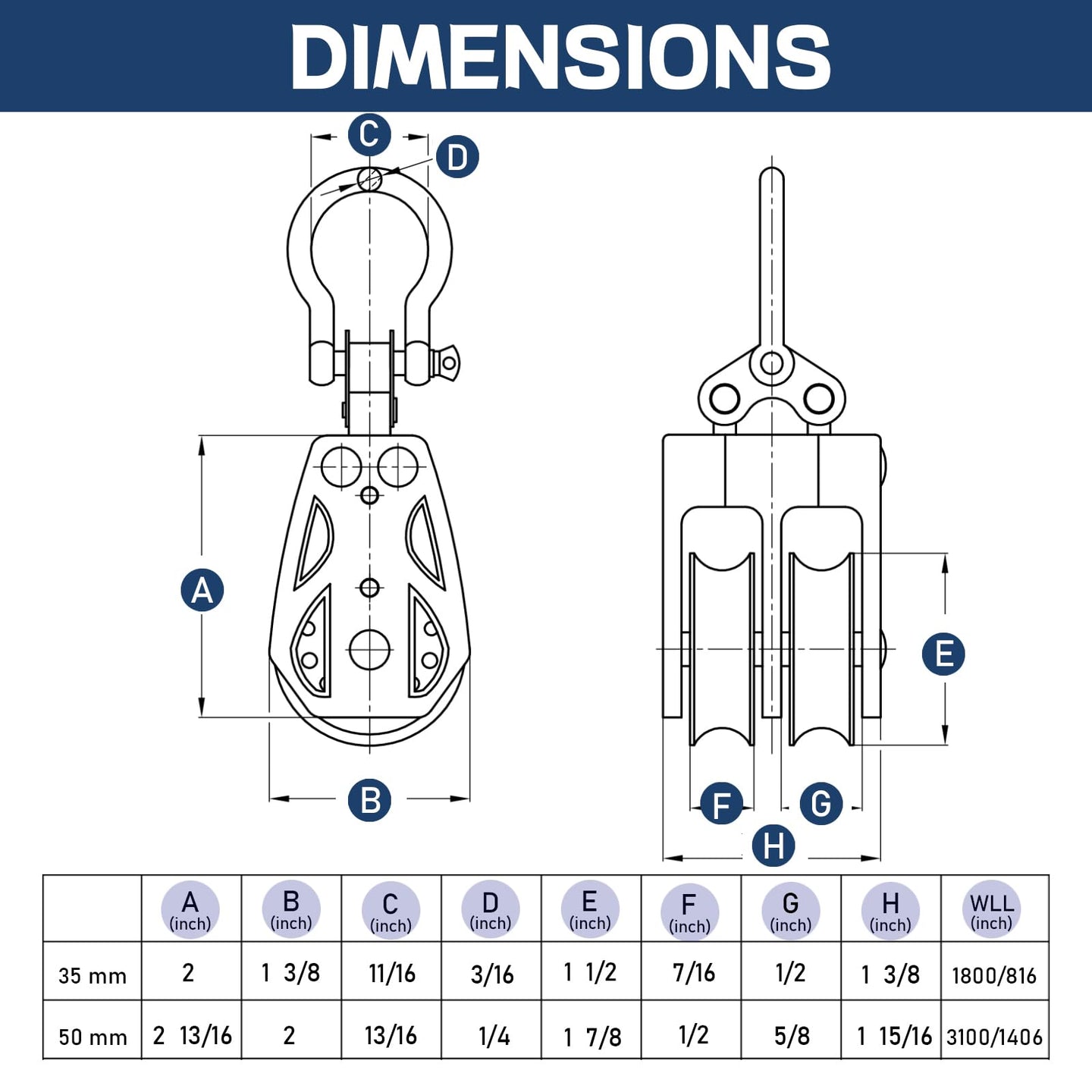

  • Technical blueprint detailing the exact dimensions, measurements, and load specifications for the heavy-duty swivel pulley block.

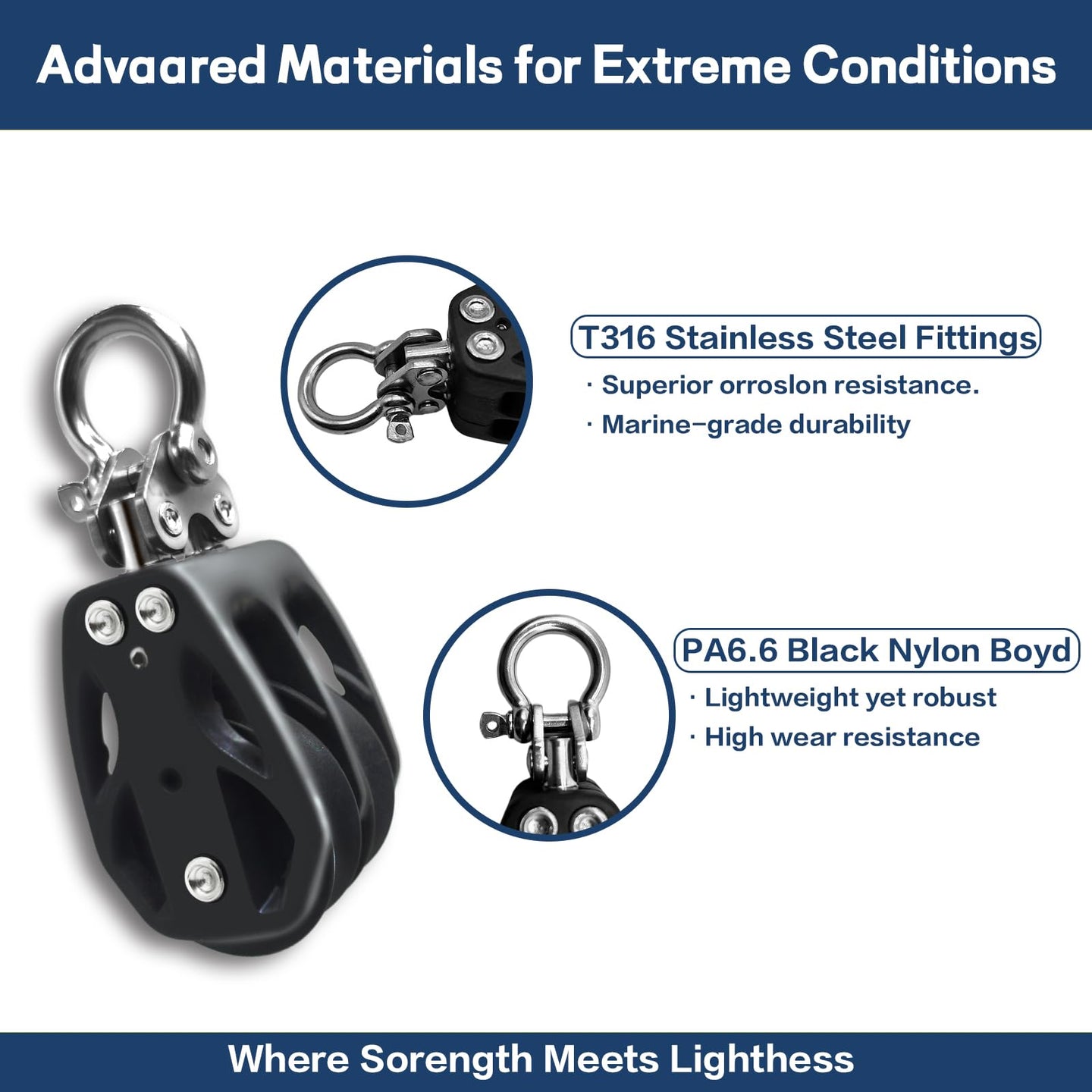

  • Detailed diagram showing the individual premium stainless steel components and durable materials that make up the heavy-duty black swivel pulley block.

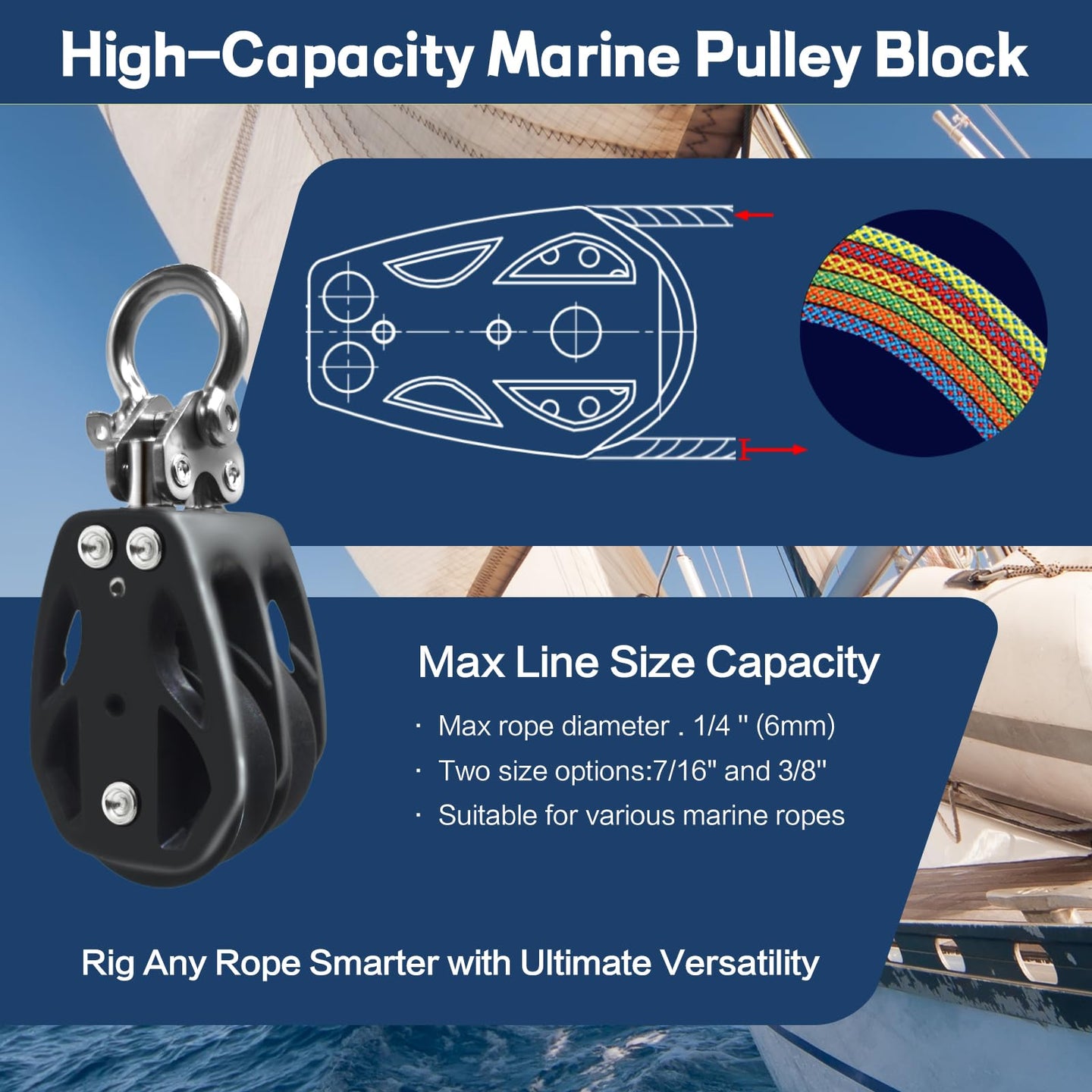

  • Technical infographic explaining the high load capacity and internal frictionless lifting mechanism of the heavy-duty black swivel pulley block.

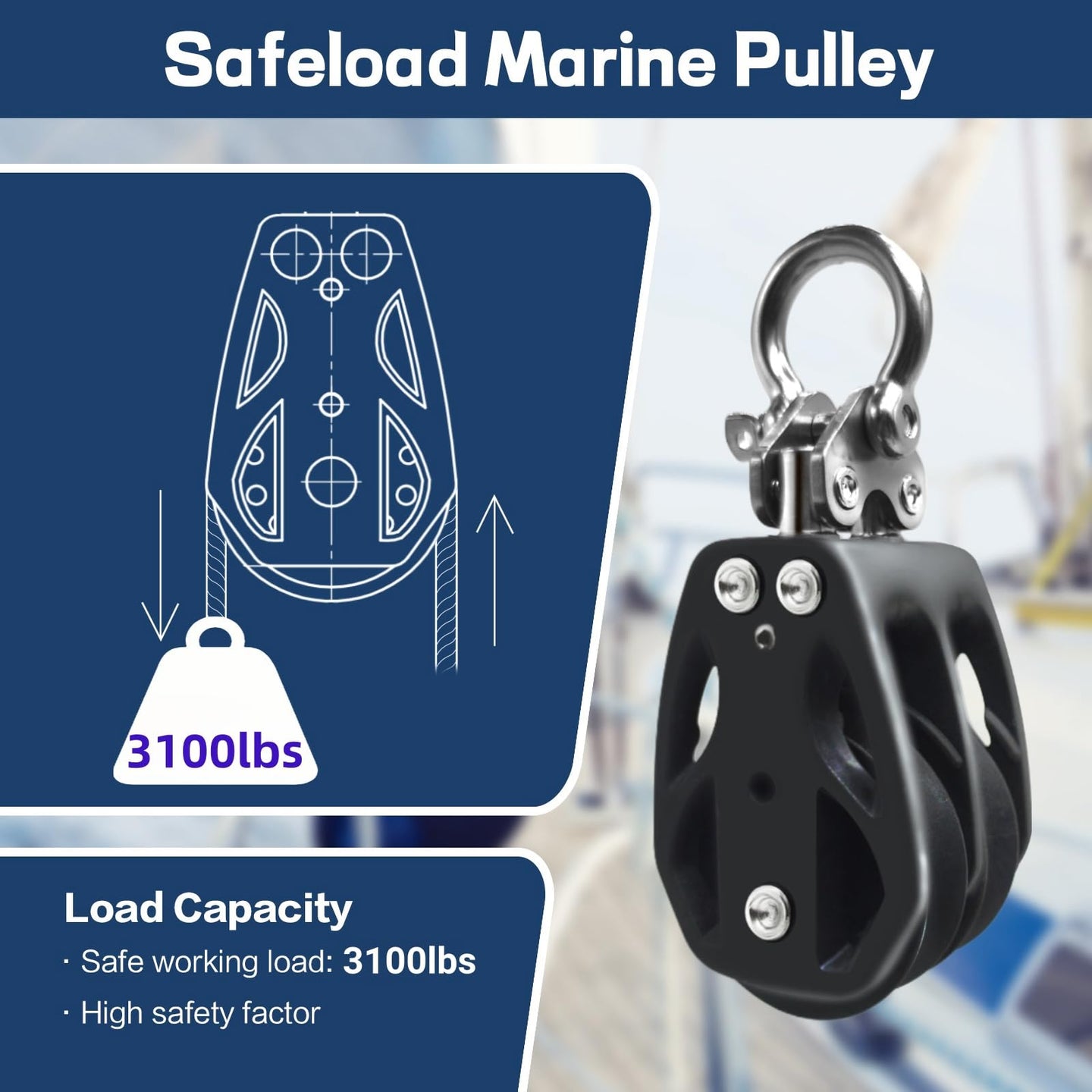

  • Graphic emphasizing the safe working load limit and rigorous testing standards of the black stainless steel marine lifting pulley.

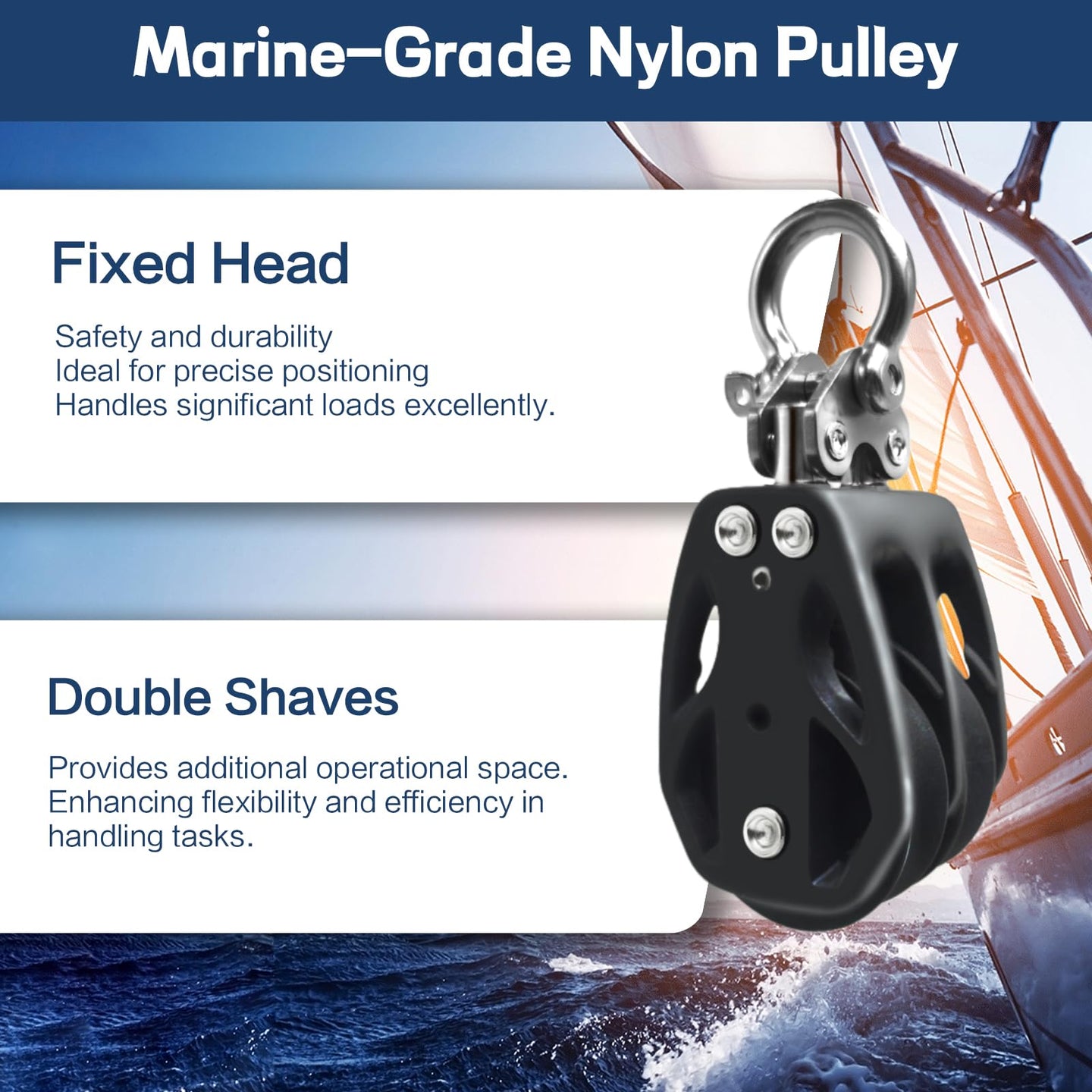

  • Infographic detailing the key features and benefits of the premium black marine-grade pulley block, designed specifically for harsh saltwater environments.
  • Collage of four scenic images showing luxury sailboats and yachts at sea, illustrating the perfect outdoor environments for marine-grade rigging hardware.
RiaYer double sheave marine block featuring hybrid T316 stainless steel and nylon body.
RiaYer hybrid double sheave block installed on a sailboat deck for mainsheet rigging.
Detailed dimensions and technical size chart for RiaYer 35mm and 50mm double sheave sailing blocks.
Hybrid marine pulley construction featuring T316 stainless steel fittings and lightweight PA66 nylon body.
High capacity marine pulley block by RiaYer showcasing maximum rope diameter compatibility and versatile rigging usage.
High capacity double sheave marine pulley block by RiaYer showing maximum line size compatibility.
RiaYer marine-grade nylon pulley featuring a fixed head for precise positioning and double sheaves for increased efficiency.
Various sailboat rigging applications for RiaYer marine pulley blocks, including halyards and control lines.
Features of the RiaYer marine grade nylon pulley including a stable fixed head and double sheaves.
Action lifestyle shot of a heavy-duty black marine pulley block installed on a wooden sailboat deck, efficiently guiding and securing rigging ropes at sea.
Technical blueprint detailing the exact dimensions, measurements, and load specifications for the heavy-duty swivel pulley block.
Detailed diagram showing the individual premium stainless steel components and durable materials that make up the heavy-duty black swivel pulley block.
Technical infographic explaining the high load capacity and internal frictionless lifting mechanism of the heavy-duty black swivel pulley block.
Graphic emphasizing the safe working load limit and rigorous testing standards of the black stainless steel marine lifting pulley.
Infographic detailing the key features and benefits of the premium black marine-grade pulley block, designed specifically for harsh saltwater environments.
Collage of four scenic images showing luxury sailboats and yachts at sea, illustrating the perfect outdoor environments for marine-grade rigging hardware.

Hybrid Construction: T316 Stainless Steel Hardware + PA66 Nylon Body. Double Sheave Efficiency.

Overview

Optimize your rigging system with the RiaYer Double Sheave Marine Block Series. Available in both 35mm and 50mm sizes, these blocks feature a professional Hybrid Construction. We combine the structural integrity of T316 Marine-Grade Stainless Steel load straps with a lightweight, impact-resistant PA66 Nylon body. Inside, precision Delrin® ball bearings ensure low-friction operation. Whether you need the compact agility of the 35mm or the heavy-duty power of the 50mm, this series delivers reliable performance for mainsheets and control lines.

Key Features

  • ⚓ Composite T316 & Nylon Build: The perfect balance of strength and weight. Critical load parts are forged from T316 Stainless Steel for rust resistance, while the body uses reinforced Nylon to reduce deck weight.
  • ⚙️ Double Sheave Design: Both the 35mm and 50mm models feature a dual-pulley configuration, doubling your mechanical advantage for easier line handling.
  • 🔄 Smooth Delrin® Bearings: Equipped with high-performance Delrin ball bearings that prevent jamming and ensure the sheaves spin freely even under dynamic loads.
  • 📏 Two Professional Sizes: Available in a compact 35mm version for smaller crafts/control lines and a robust 50mm version for mainsheets and higher loads.
  • 🔒 Fixed Head Stability: The stainless steel fixed head keeps the block aligned with the load direction, preventing twists and tangles in your rigging.

Technical Specifications

Attribute Details
Load-Bearing Material T316 Stainless Steel
Body/Sheave Material Reinforced PA66 Nylon
Bearing Technology Delrin® Ball Bearings
Sheave Configuration Double Sheave (2 Pulleys)
Sheave Diameter 35mm / 50mm (Select option)
Max Line Capacity Up to 3/8" (10mm)
Max Breaking Load Up to 3,100 lbs (depending on size)

What's in the Box?

  • RiaYer Hybrid Double Sheave Block(s)
  • *Note: Quantity corresponds to your selection. Please ensure you select the correct size (35mm or 50mm) from the dropdown menu above.

Versatile Applications

Ideal for sailing and marine rigging:

  • ✔ Mainsheet Systems
  • ✔ Boom Vangs
  • ✔ Jib Sheets
  • ✔ Control Lines
  • ✔ Davit Systems
  • ✔ Outhauls

Why Choose RiaYer?

RiaYer marine blocks are built for the real world. By utilizing a hybrid construction of T316 Stainless Steel and PA66 Nylon, we offer a block that resists saltwater corrosion better than standard alloys while remaining remarkably lightweight. With precision Delrin bearings, you get consistent performance whether you are cruising or racing.

  • Free Shipping

  • Secure Checkout

  • Fast Delivery

  • PayPal

RiaYer

RiaYer Double Sheave Sailing Block | T316 Stainless & Nylon Marine Pulley (35mm/50mm)

SKU B0DG1RN29M
$27.99

Hybrid Construction: T316 Stainless Steel Hardware + PA66 Nylon Body. Double Sheave Efficiency.

Overview

Optimize your rigging system with the RiaYer Double Sheave Marine Block Series. Available in both 35mm and 50mm sizes, these blocks feature a professional Hybrid Construction. We combine the structural integrity of T316 Marine-Grade Stainless Steel load straps with a lightweight, impact-resistant PA66 Nylon body. Inside, precision Delrin® ball bearings ensure low-friction operation. Whether you need the compact agility of the 35mm or the heavy-duty power of the 50mm, this series delivers reliable performance for mainsheets and control lines.

Key Features

  • ⚓ Composite T316 & Nylon Build: The perfect balance of strength and weight. Critical load parts are forged from T316 Stainless Steel for rust resistance, while the body uses reinforced Nylon to reduce deck weight.
  • ⚙️ Double Sheave Design: Both the 35mm and 50mm models feature a dual-pulley configuration, doubling your mechanical advantage for easier line handling.
  • 🔄 Smooth Delrin® Bearings: Equipped with high-performance Delrin ball bearings that prevent jamming and ensure the sheaves spin freely even under dynamic loads.
  • 📏 Two Professional Sizes: Available in a compact 35mm version for smaller crafts/control lines and a robust 50mm version for mainsheets and higher loads.
  • 🔒 Fixed Head Stability: The stainless steel fixed head keeps the block aligned with the load direction, preventing twists and tangles in your rigging.

Technical Specifications

Attribute Details
Load-Bearing Material T316 Stainless Steel
Body/Sheave Material Reinforced PA66 Nylon
Bearing Technology Delrin® Ball Bearings
Sheave Configuration Double Sheave (2 Pulleys)
Sheave Diameter 35mm / 50mm (Select option)
Max Line Capacity Up to 3/8" (10mm)
Max Breaking Load Up to 3,100 lbs (depending on size)

What's in the Box?

  • RiaYer Hybrid Double Sheave Block(s)
  • *Note: Quantity corresponds to your selection. Please ensure you select the correct size (35mm or 50mm) from the dropdown menu above.

Versatile Applications

Ideal for sailing and marine rigging:

  • ✔ Mainsheet Systems
  • ✔ Boom Vangs
  • ✔ Jib Sheets
  • ✔ Control Lines
  • ✔ Davit Systems
  • ✔ Outhauls

Why Choose RiaYer?

RiaYer marine blocks are built for the real world. By utilizing a hybrid construction of T316 Stainless Steel and PA66 Nylon, we offer a block that resists saltwater corrosion better than standard alloys while remaining remarkably lightweight. With precision Delrin bearings, you get consistent performance whether you are cruising or racing.
