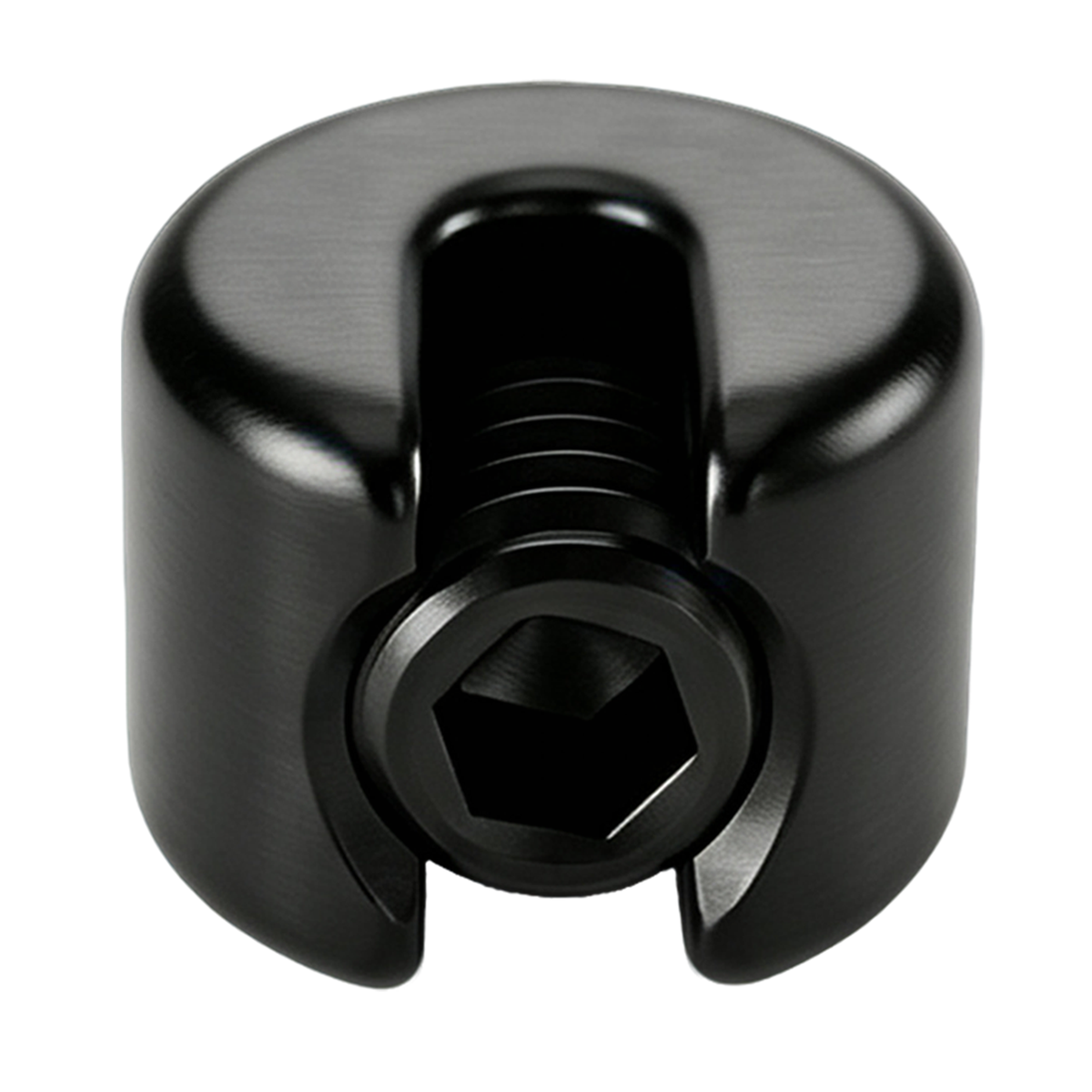

Create a clean, low-profile cable termination with this compact single-slot wire rope stopper. Sized for one 4mm (5/32 in.) wire rope, the set-screw design installs with the included matching hex key. The body is made from 316 stainless steel and finished in black PVD to blend with dark trellis grids, modern outdoor details and compatible cable systems.
Key Features
- Fits one 4mm (5/32 in.) wire rope: The single slot is intended to secure one compatible cable.
- Set-screw installation: Insert the cable into the slot, position the stopper and tighten the screw with the included matching hex key.
- Black PVD finish: A dark, low-profile finish over 316 stainless steel, with normal wear possible during installation and service.
- Clean single-slot design: Helps create a tidy termination without doubling two cables through one clamp.

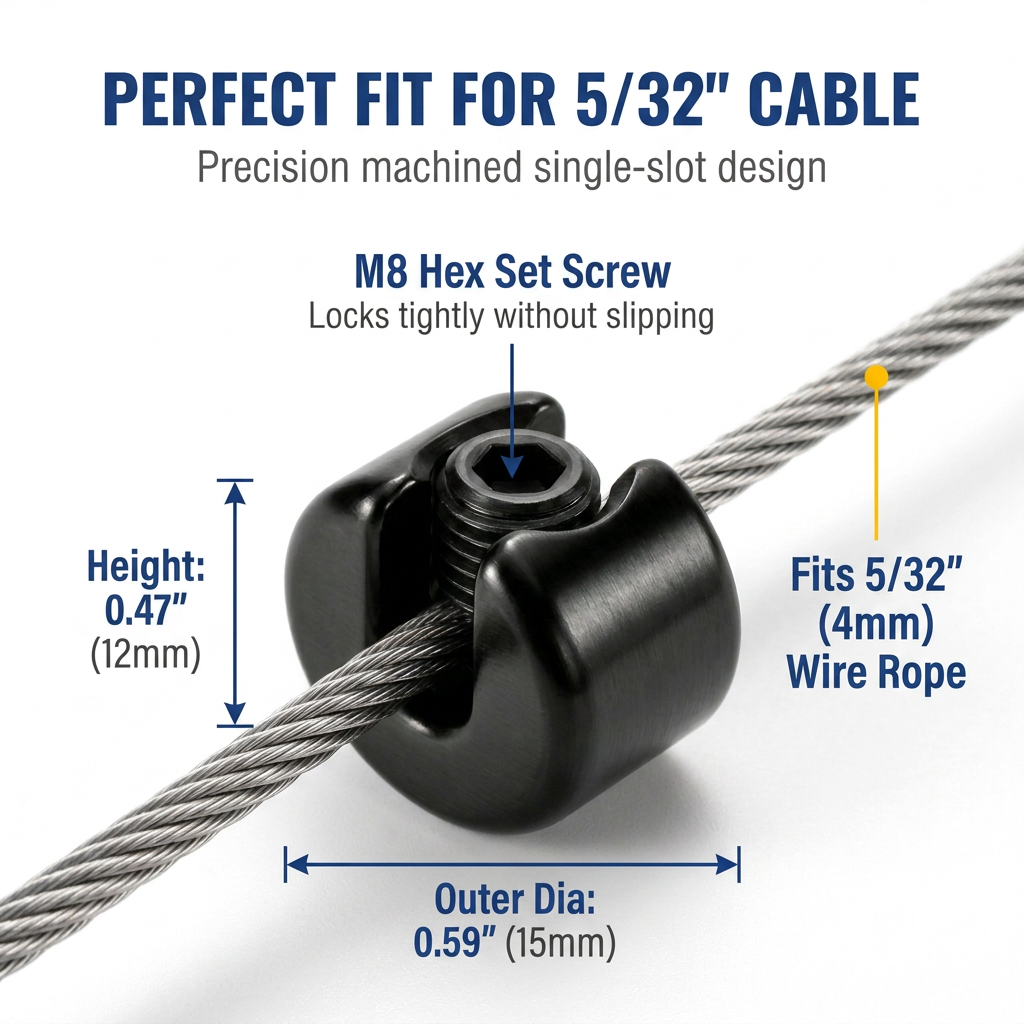

Specifications
| Product type | Single-slot wire rope stopper / cable clamp |
| Cable size | 4mm (5/32 in.) nominal |
| Material | 316 stainless steel |
| Finish | Black PVD over 316 stainless steel |
| Included tool | Matching hex key |
Recommended Applications
Suitable for compatible 4mm wire-rope layouts such as green wall trellis grids, landscape cable details and non-lifting cable organization projects. Confirm the complete system design, cable construction, substrate and required performance before use.

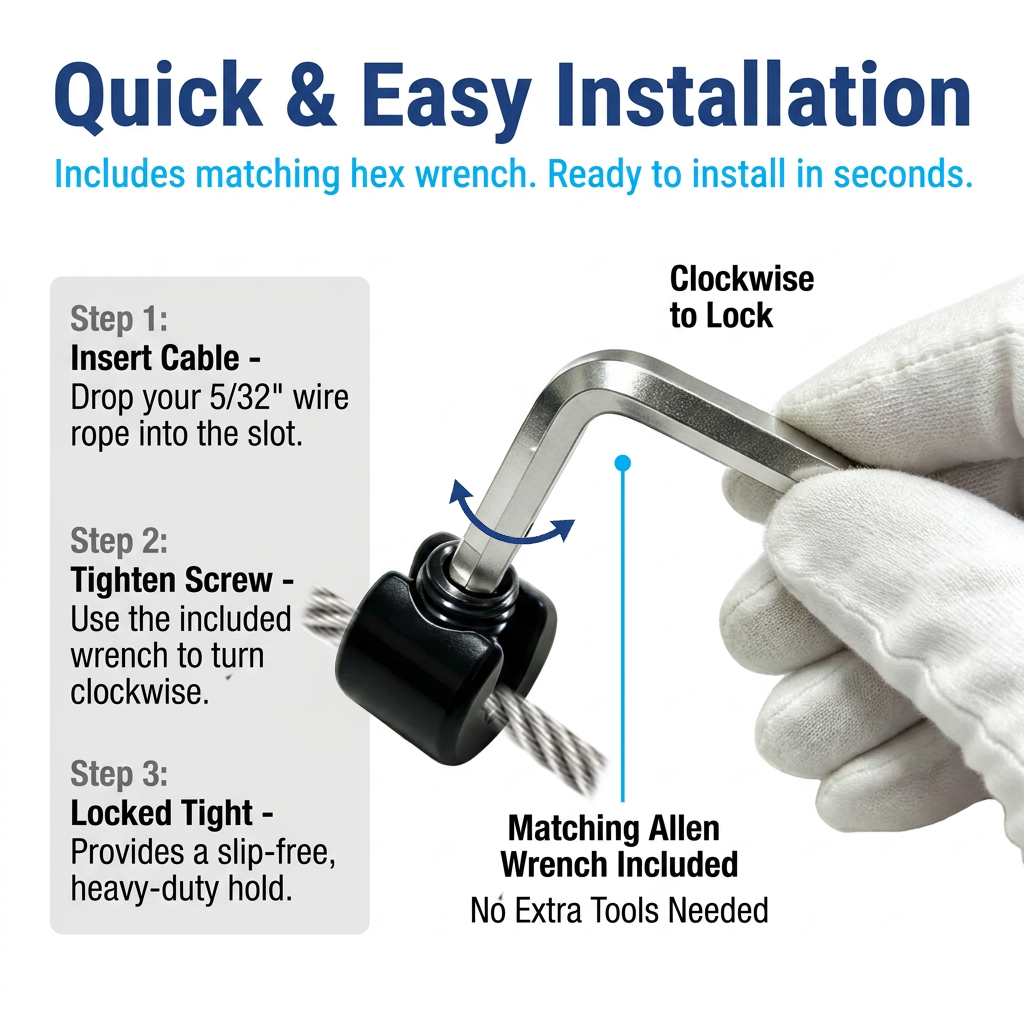

Installation
- Confirm that the wire rope measures 4mm (5/32 in.) and fits the slot correctly.
- Insert one cable into the slot and move the stopper to the required position.
- Tighten the set screw evenly with the included matching hex key.
- Check that the cable is securely held, then inspect the connection periodically during service.
Important Use Notes

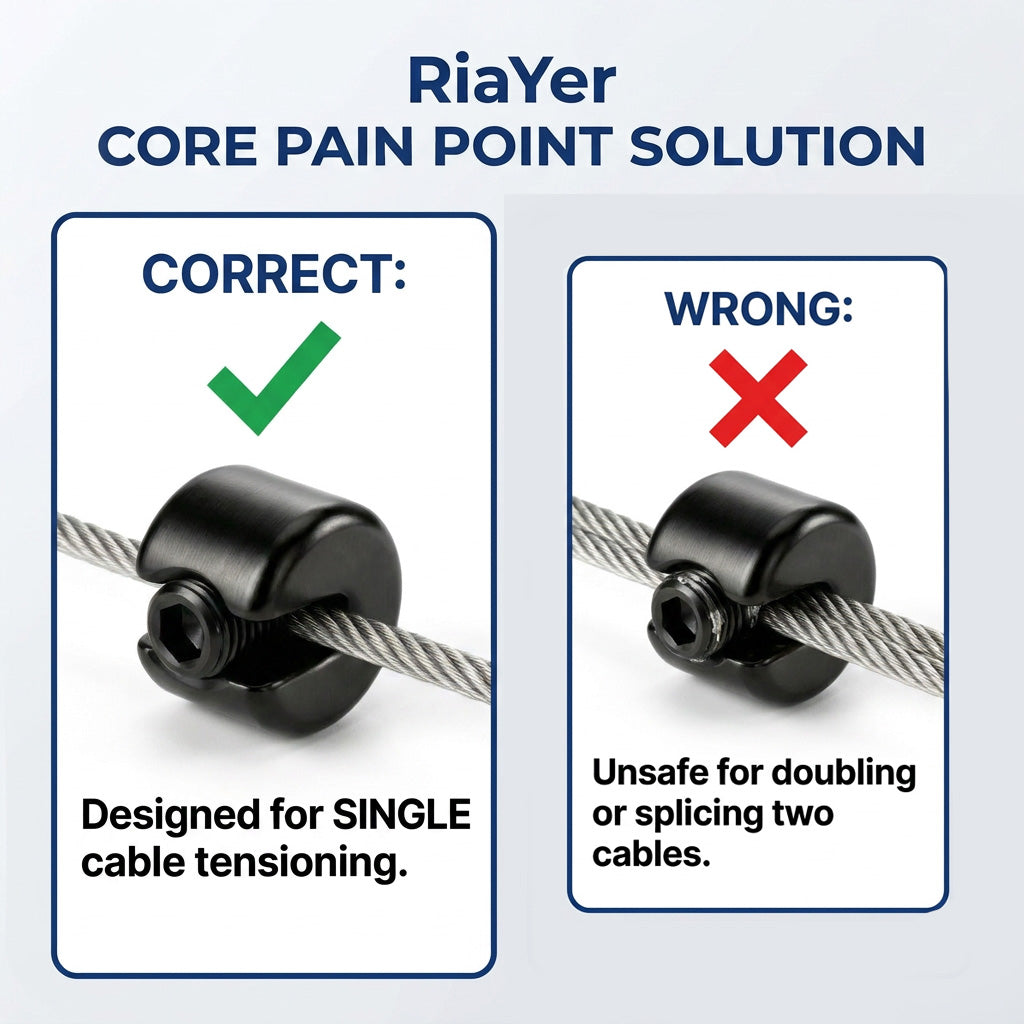

This product is a single-cable stopper, not a splice connector. Do not use it to join two cables. Unless RiaYer supplies application-specific test data and written approval, do not use it for lifting, fall protection, overhead suspension, life-safety systems or as the sole structural termination in a code-regulated guardrail. Project suitability depends on cable construction, installation, substrate, loading and local requirements.
What's Included
- Black PVD 316 stainless steel wire rope stoppers
- Matching hex key
