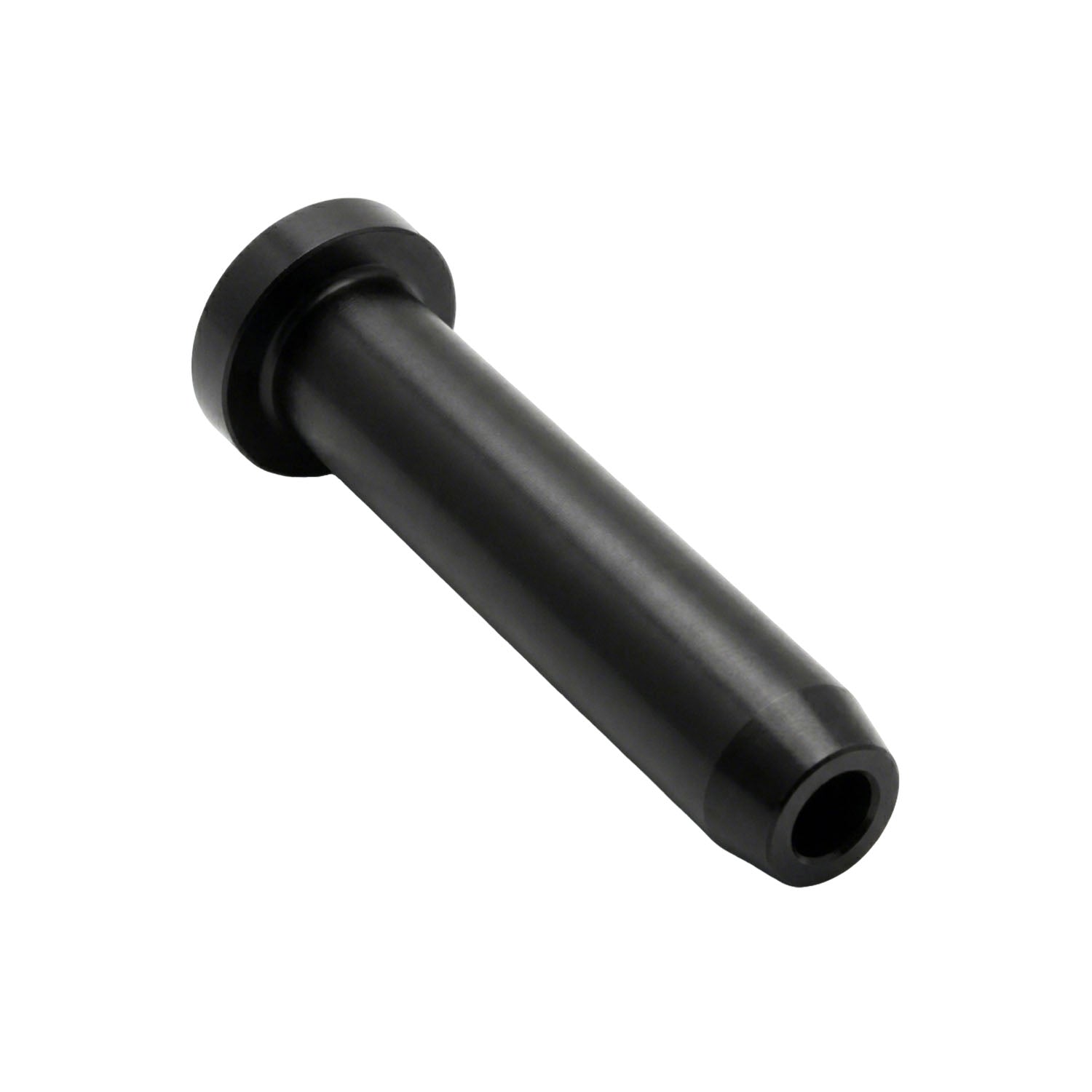

The invisible anchor for your cable run. Features a sleek, concealed design that acts as the stationary end point. Finished in premium Black Titanium PVD. (Requires Hydraulic Crimper).
Product Overview
Create a truly seamless, minimalist view with the RiaYer Black Invisible Fixed End Kit. Designed to work in pairs with a tensioner (on the opposite post), this "Dead End" terminal acts as the rock-solid anchor point for your wire rope. It is engineered to hide completely inside the post, leaving only a small, flush black head visible on the outside.
Why Choose This Black Fixed End Kit?
- ⚓ The Perfect Anchor (Dead End): This terminal holds the cable securely on one side of your railing while you tension the cable from the other side. It is the most stable and minimalist way to start a cable run.

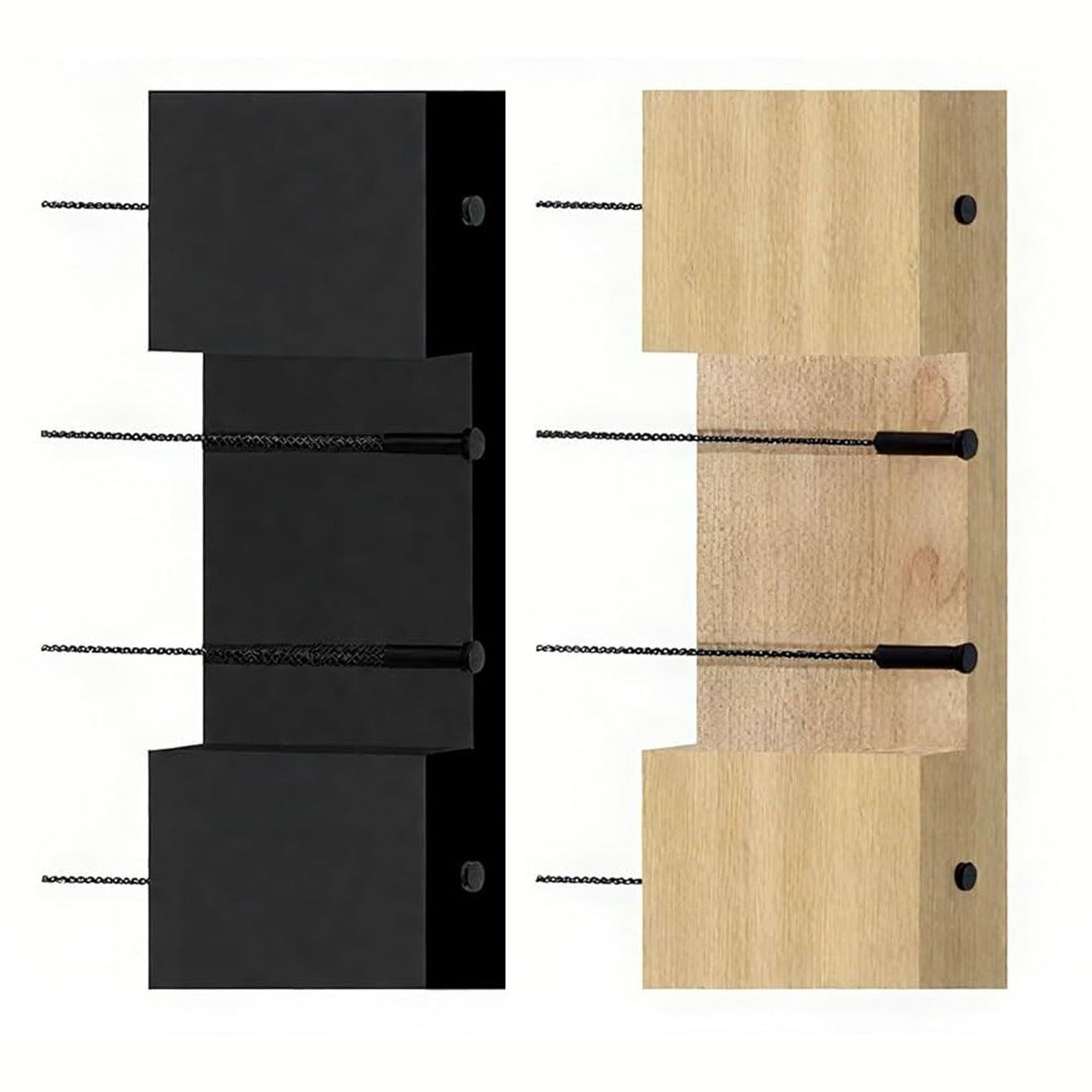

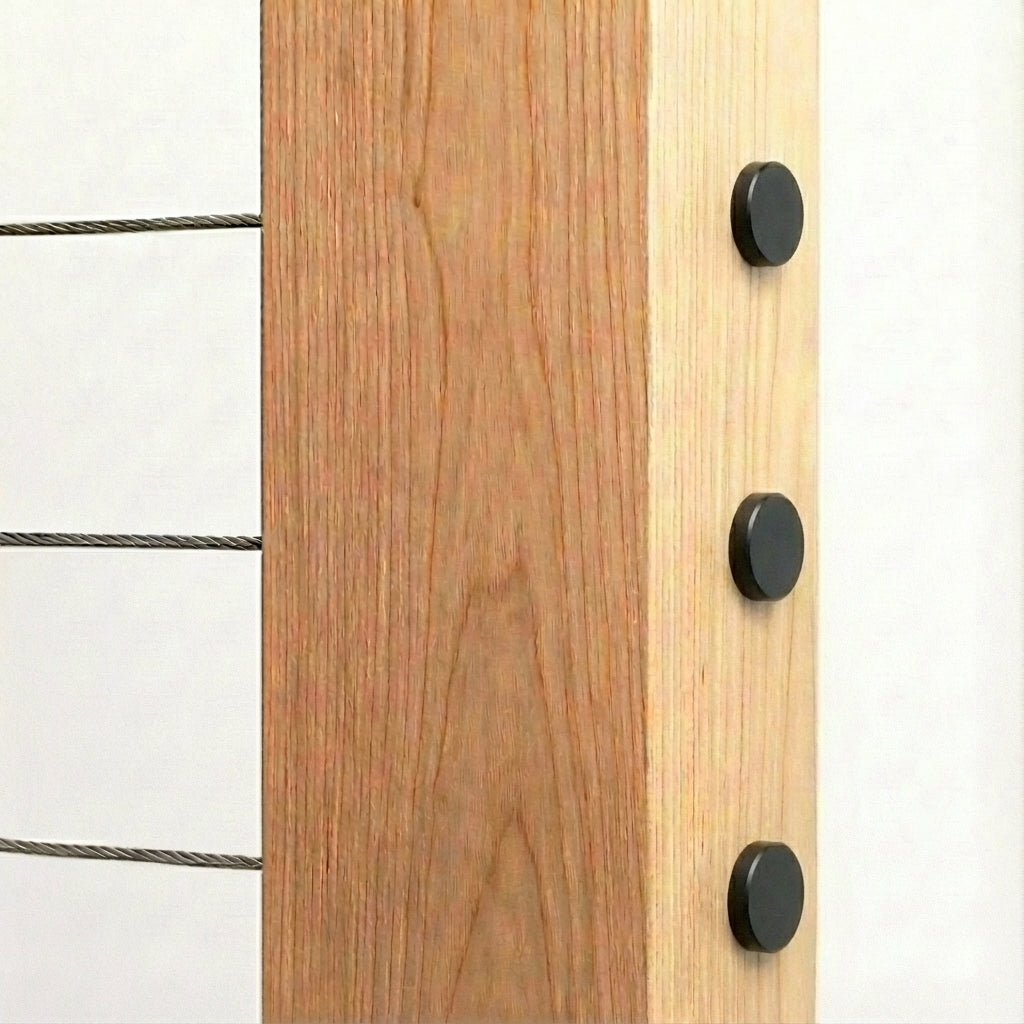

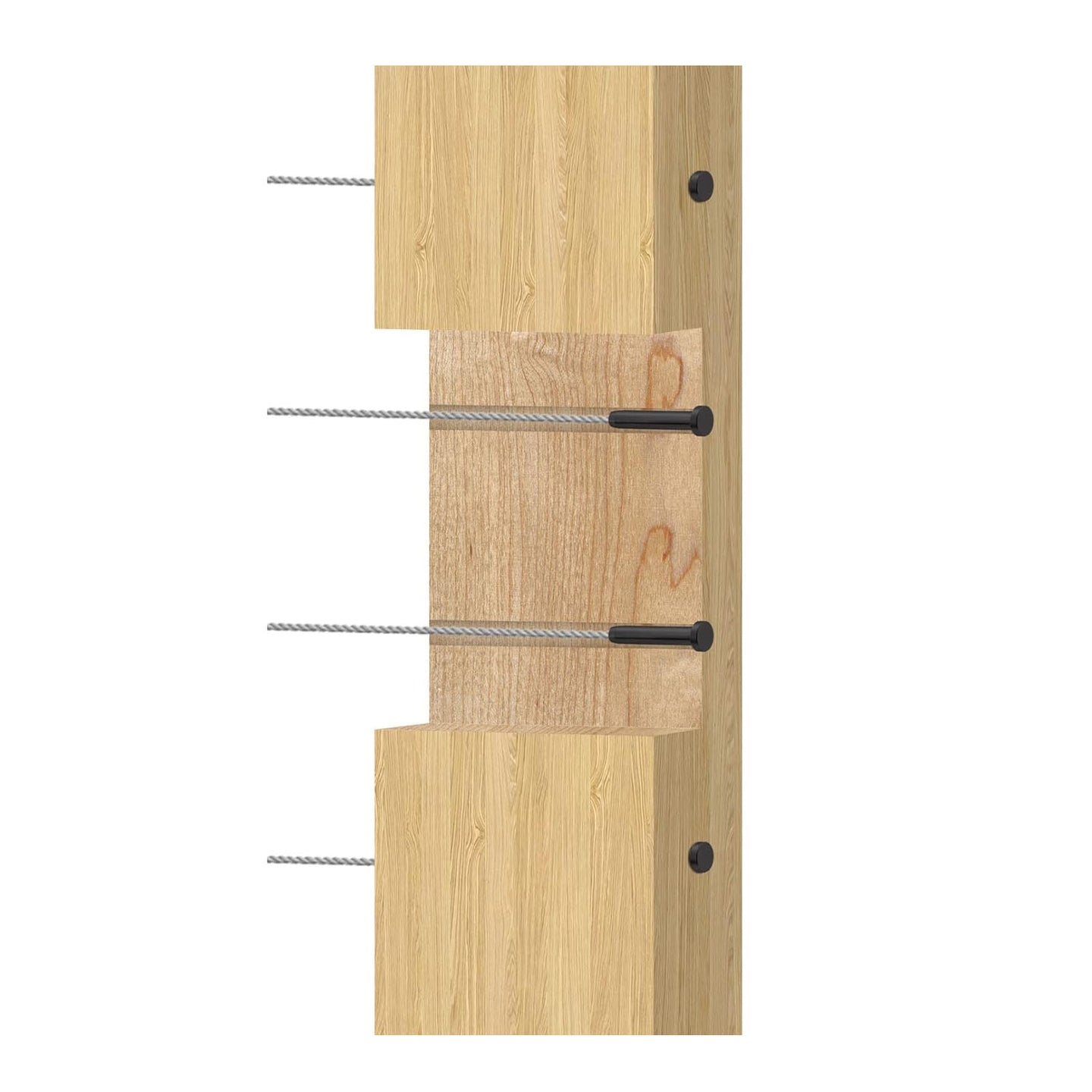

- 🙈 Invisible "Hidden" Look: Once installed, the body of the fitting is hidden inside the post. Only a tiny, sleek black cap is visible on the exterior, keeping your view clean and unobstructed.
- ⚫ Premium Black Titanium PVD: A vacuum-plated metallic black finish that molecularly bonds to the steel. It won't chip or peel like standard paint, perfect for modern industrial or dark wood designs.

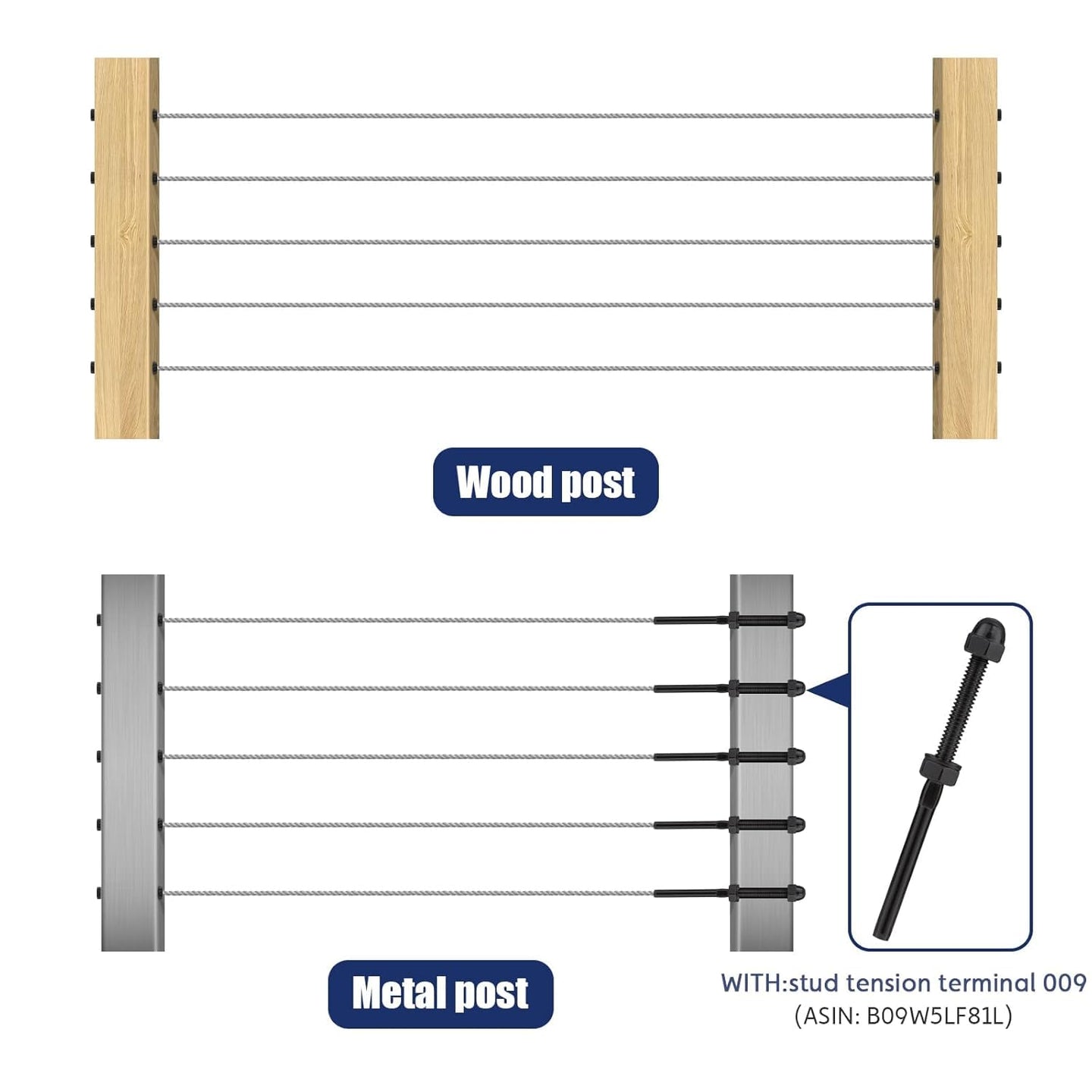

- 🪵 Versatile Compatibility: Designed for 1/8" wire rope. It fits perfectly into Wood Posts (4x4, 6x6) and can also be used on Metal Posts with appropriate hole sizing.

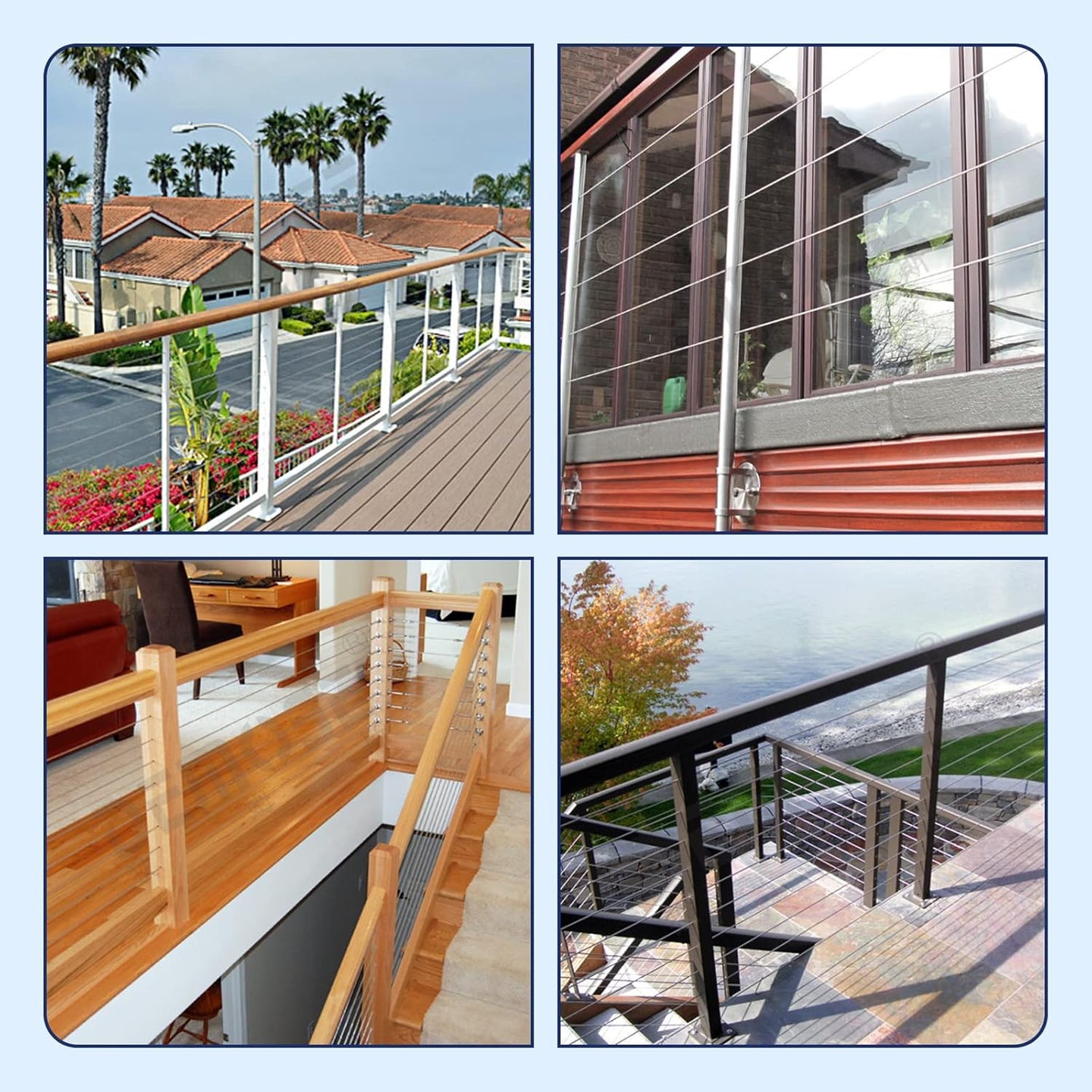

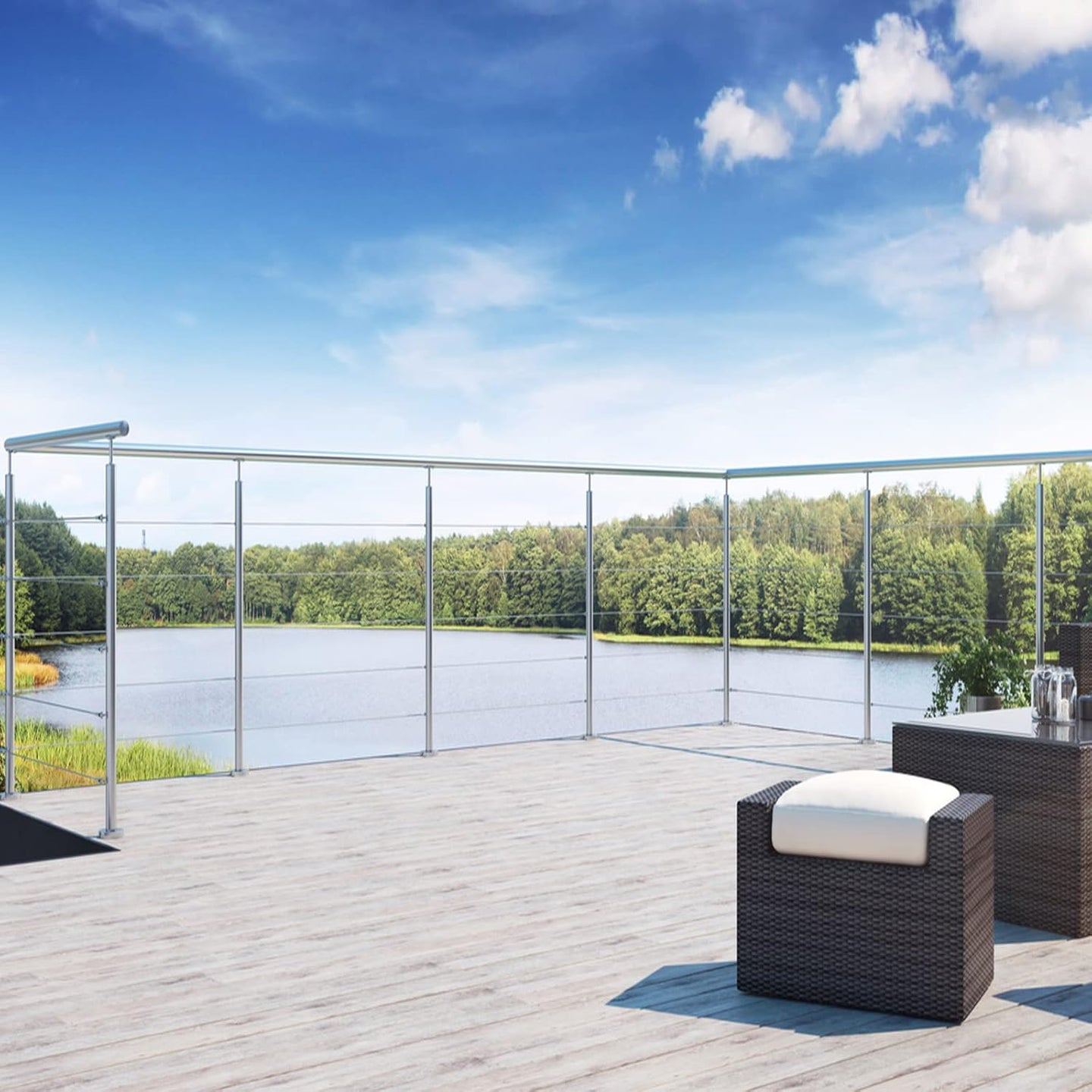

- 🌊 T316 Marine Grade Protection: No rust, no corrosion. The solid T316 core makes it ideal for indoor staircases or outdoor decks, even in harsh salty coastal areas.

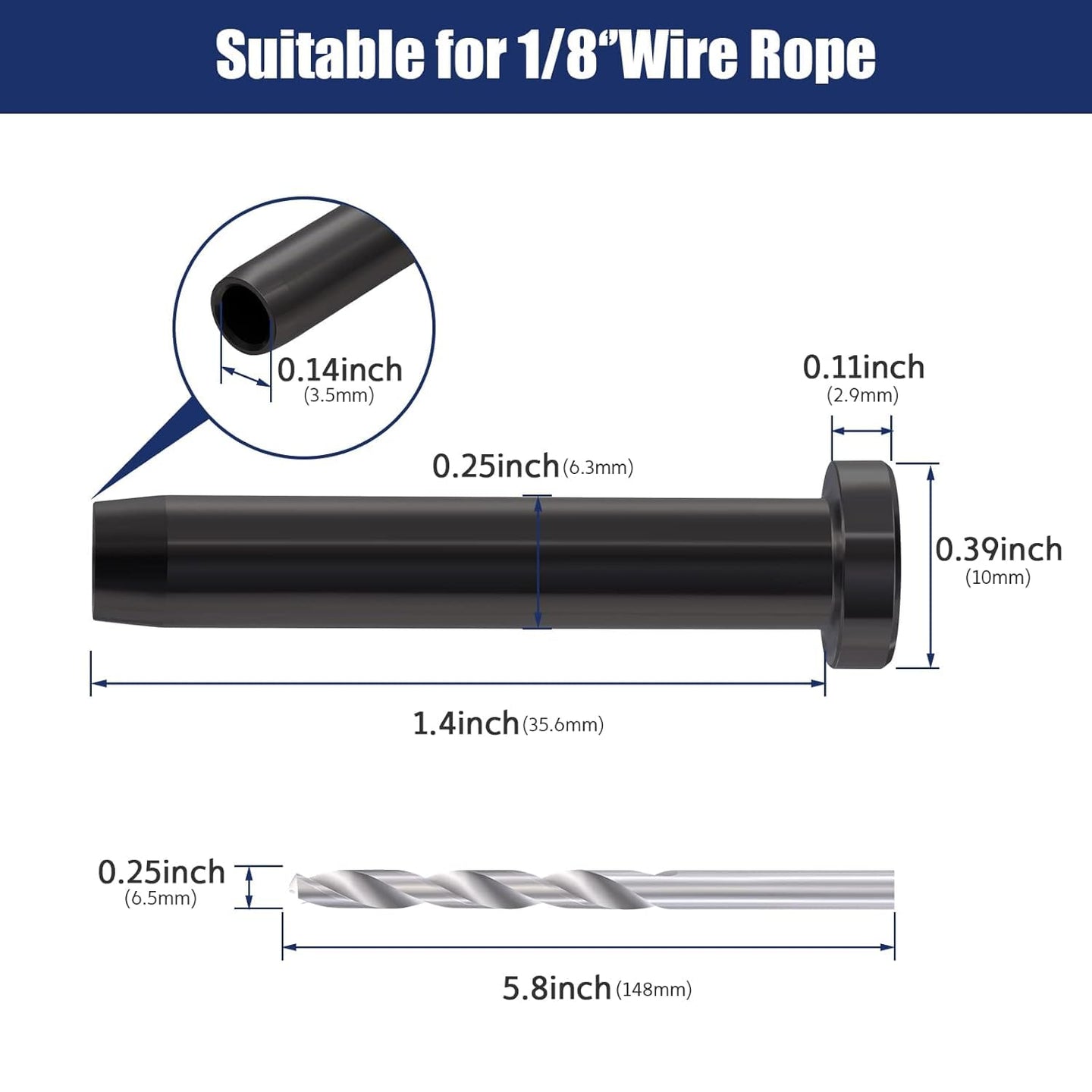

Technical Specifications
| System Type | Fixed End / Dead End (Non-Tensioning) |
| Finish | Black Titanium PVD Coating |
| Material | T316 Marine Grade Stainless Steel |
| Cable Compatibility | Fits 1/8" (3.2mm) Wire Rope |
| Drill Hole Size | 1/4" (6.35mm) |
| Tool Requirement | Requires Hydraulic Crimper |
What's Included:
- Black Invisible Fixed End Terminals (Quantity based on pack size selected)
- Included Drill Bits based on pack size.
*Important Note: This kit does NOT tighten the cable. You MUST pair this with a separate Tensioner (Adjustable End) for the other end of the cable run.

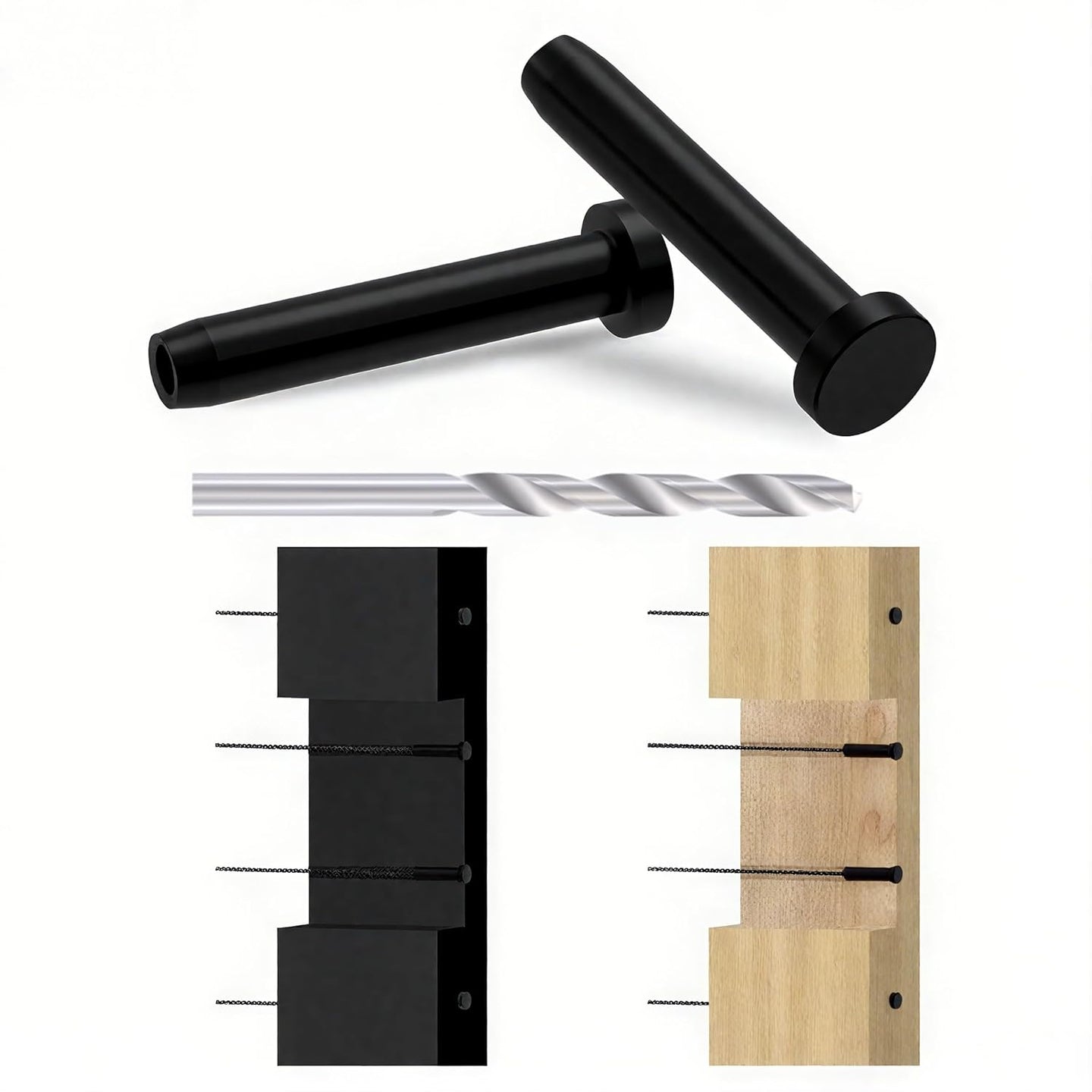

How to Install:
- Drill: Drill a 1/4" pilot hole straight through your end post.
- Crimp: Insert the 1/8" wire rope into the tube of the fixed terminal. Use a Hydraulic Crimper to swage it permanently.
- Insert: Push the wire and the terminal into the hole until the black flat head sits completely flush against the post surface.
- Pair & Tension: Run the wire to the opposite post, connect it to a Tensioner hardware (sold separately), and tighten the system.
Frequently Asked Questions
Q: Can I use this on both ends of the cable?
A: No. This is a Fixed End (Dead End). You must have at least one Tensioner (Adjustable End) on the other post to draw the wire rope tight, otherwise, the cable will be completely loose and unsafe.
Q: What size hole do I drill in the wood?
A: A standard 1/4" hole is perfect for the tubular body of the fitting to slide inside, while the flanged head will naturally stop on the post's surface.
Q: Is the black finish durable against the crimper tool?
A: Yes, we use advanced PVD technology. It's not a painted surface; it's a molecular metallic bond that highly resists scratching and fading, even during the intense pressure of hydraulic crimping.
