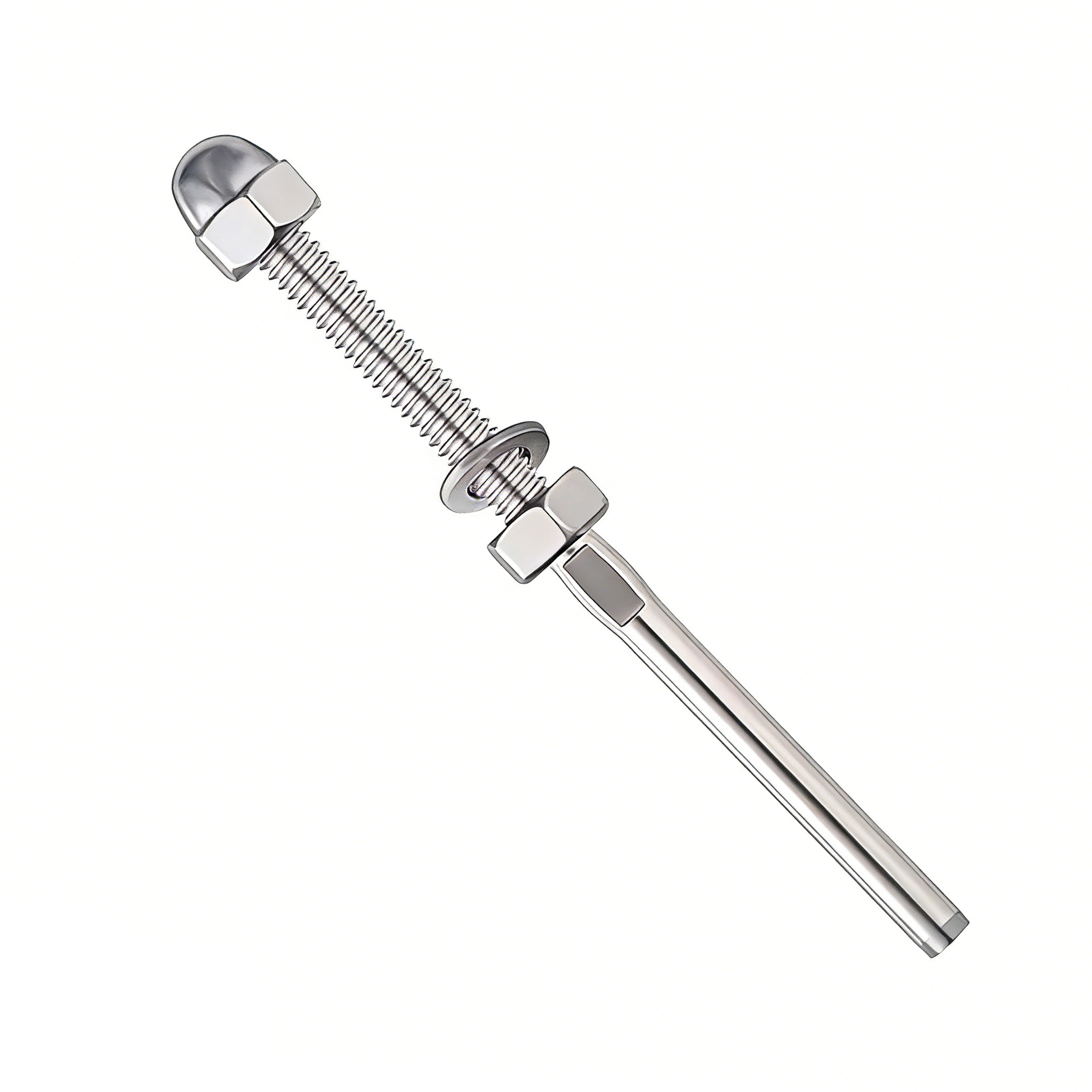

The robust choice for metal posts. This through-post tensioner kit features our premium Black Titanium PVD finish, offering industrial strength with a sleek, fade-proof aesthetic.
Overview
Build a rock-solid, high-tension railing with the RiaYer Black Titanium Threaded Stud System. Designed primarily for 2"x2" to 4"x4" Metal Posts (but fully compatible with wood), this kit works by passing entirely through the end post and tensioning from the backside. This "through-post" design is the preferred choice for contractors needing maximum tension control, structural integrity, and an industrial look.
Why Choose This Kit?
- 💎 Black Titanium PVD Technology: We use advanced Vacuum Titanium Plating to bond the black finish to the T316 steel. Unlike paint, this metallic finish is ultra-hard, scratch-resistant, and will not peel or fade under the sun.

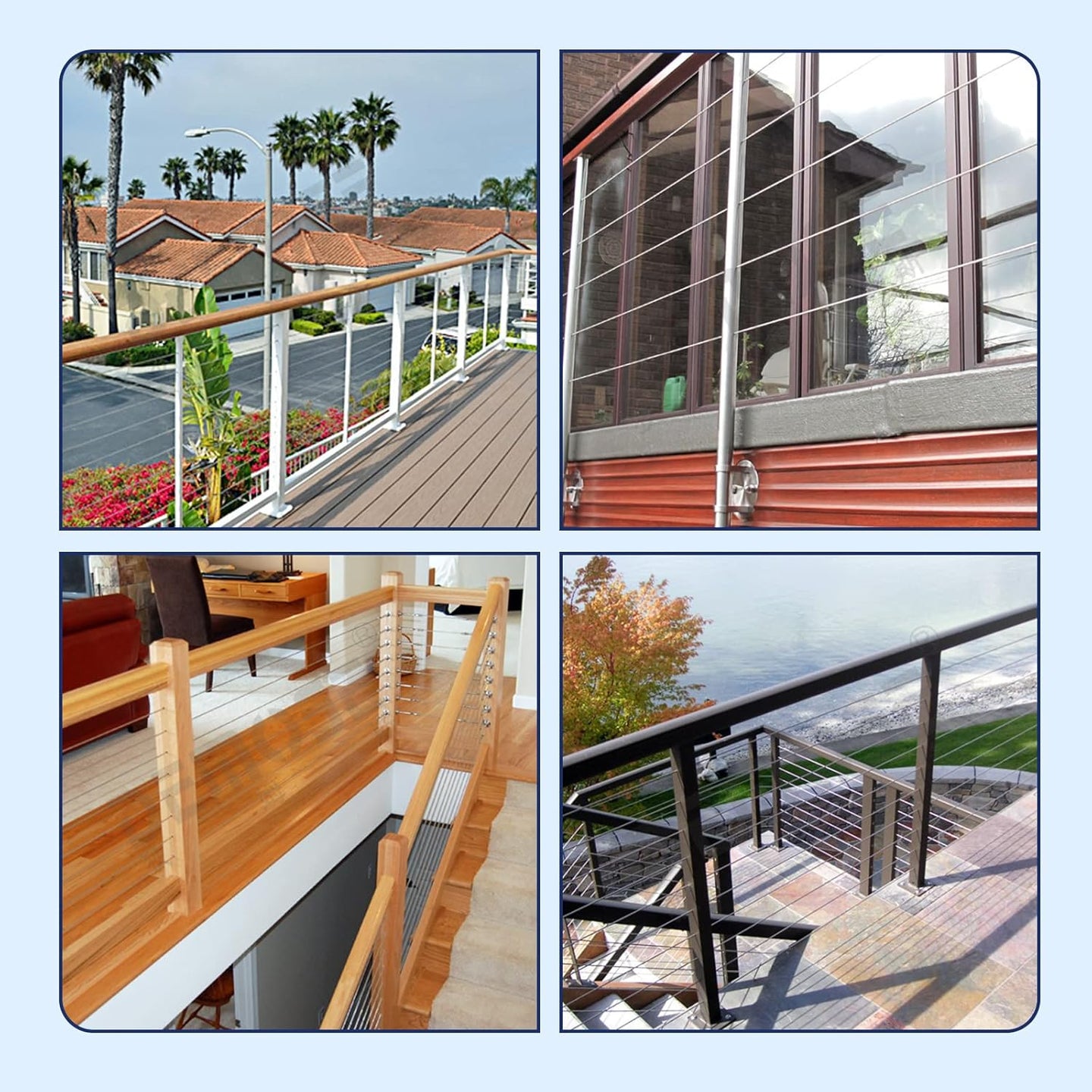

- 🌿 Safe & Eco-Friendly: Finished with a specialized protective coating that is non-toxic and environmentally safe (food-grade standard), making it ideal for family homes with children and pets.
- 📐 Versatile "Cut-to-Fit" Design: The extra-long threaded stud allows it to fit various post sizes (from 2" to 4"). Simply cut off the excess thread after installation for a custom, clean fit.
- 🔄 Multi-Angle Ready: Perfect for both level decks and staircases. (Note: For angled stair installations, pair this with our 30° Beveled Washers to ensure the nut sits flush against the post).
Technical Specifications
| Feature | Specification |
|---|---|
| System Type | Threaded Stud Tensioner (Through-Post) |
| Finish | Black Titanium PVD |
| Material | T316 Marine Grade Stainless Steel |
| Cable Compatibility | Fits 1/8" (3.2mm) Wire Rope |

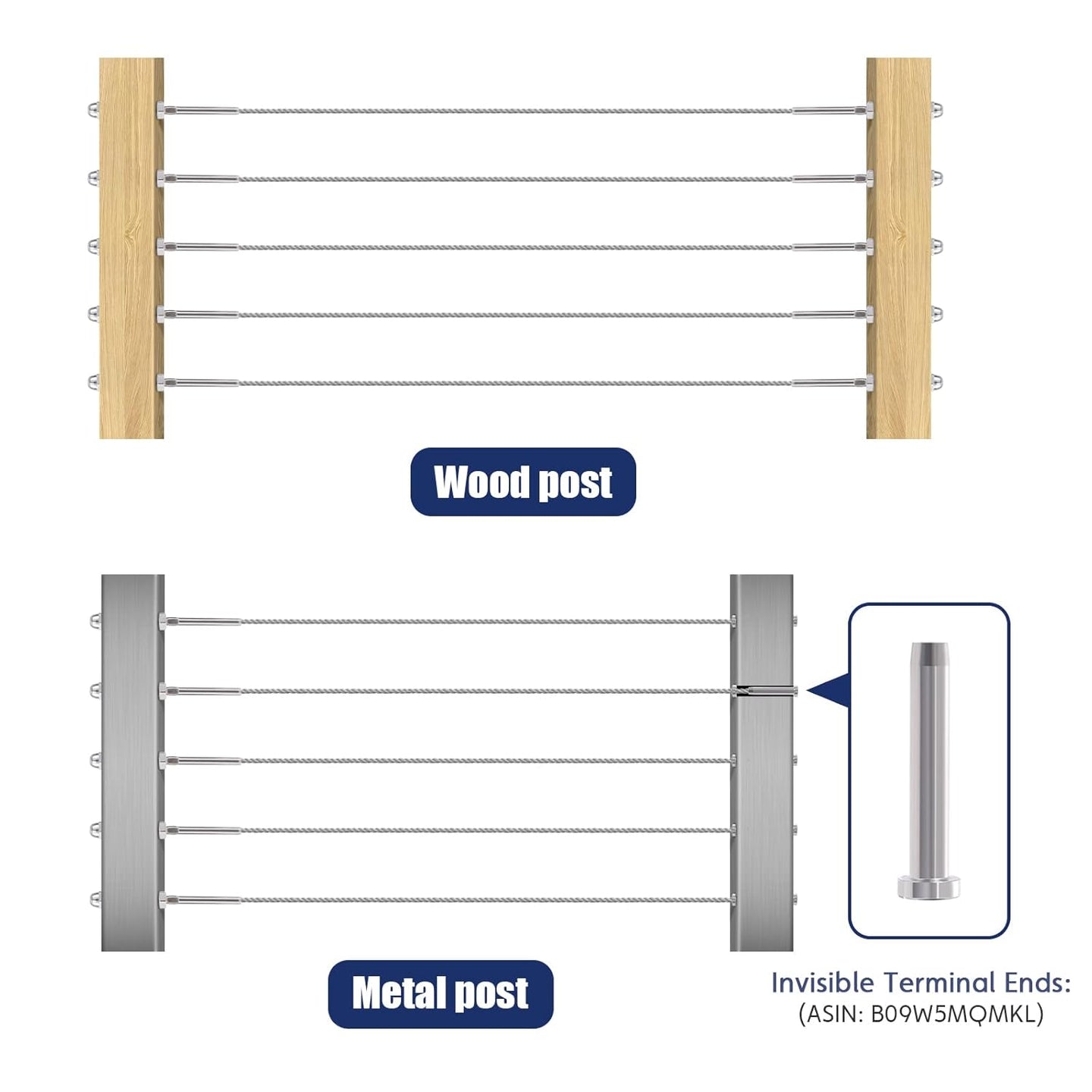

| Post Compatibility | Metal Posts (Recommended) & Wood Posts |
| Drill Requirement | Requires drilling straight through the entire post |

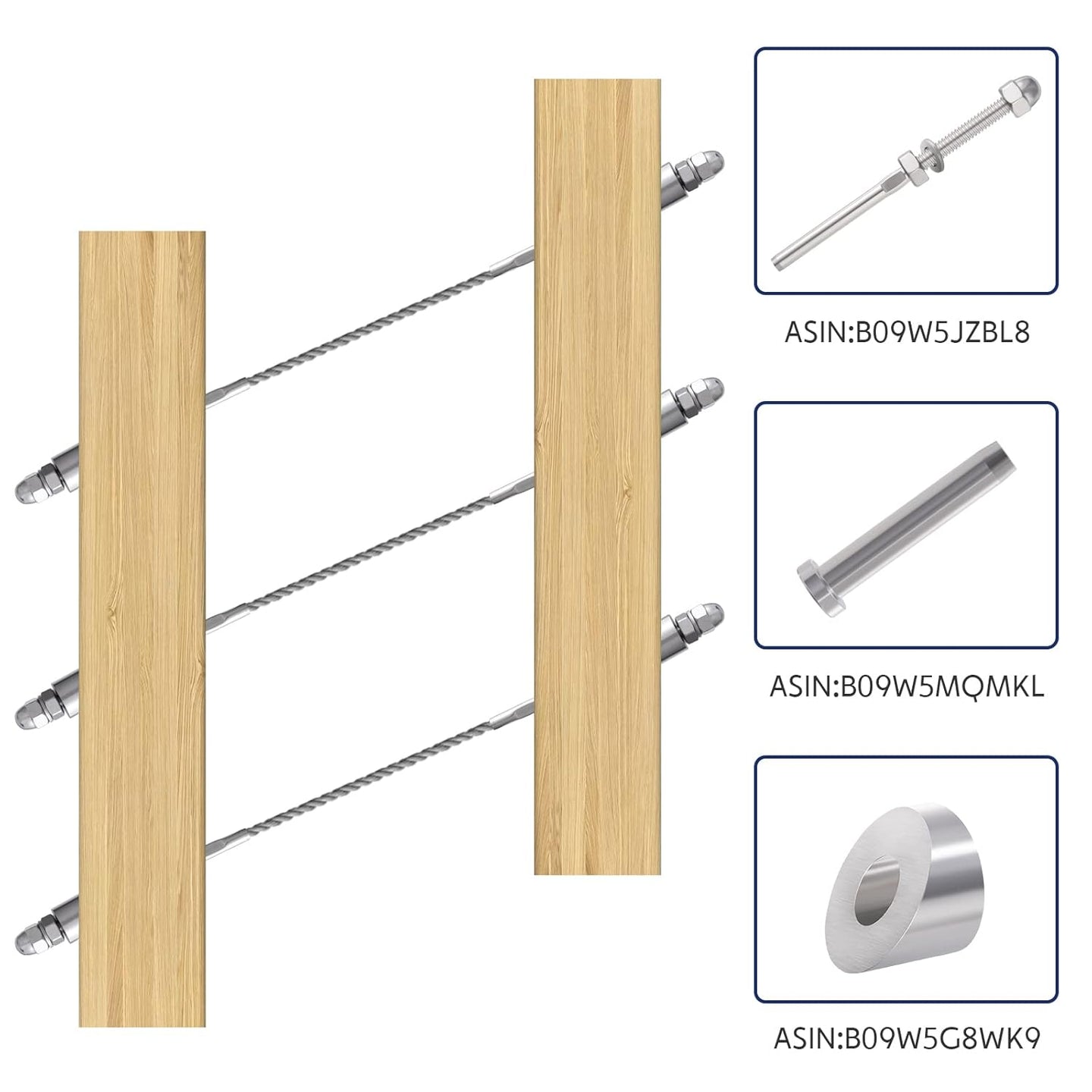

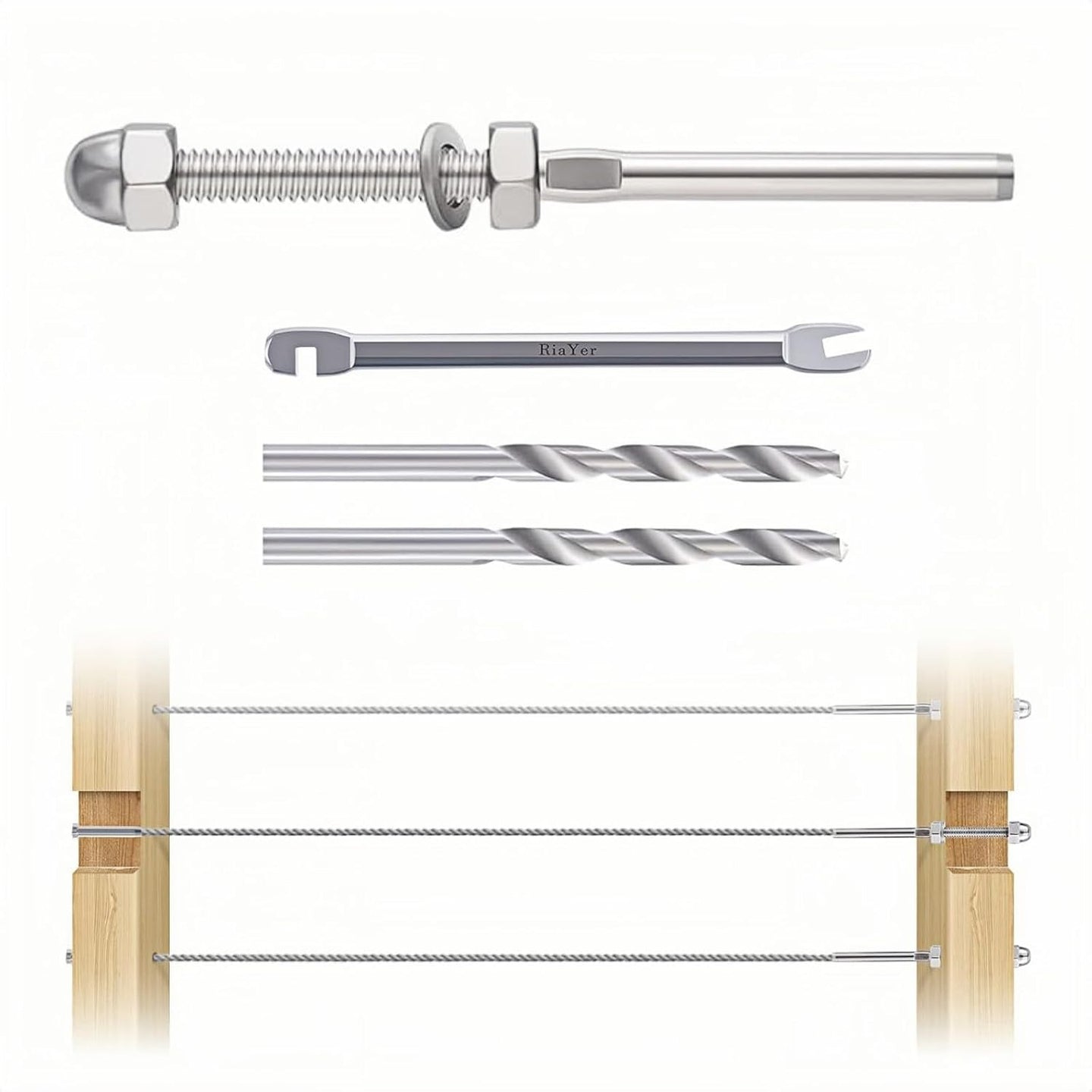

Package Includes:
- Threaded Stud Tensioners (with Cap Nuts & Washers)
- 1 x Installation Drill Bit
- *Note: Total quantity of studs depends on your selected pack size.

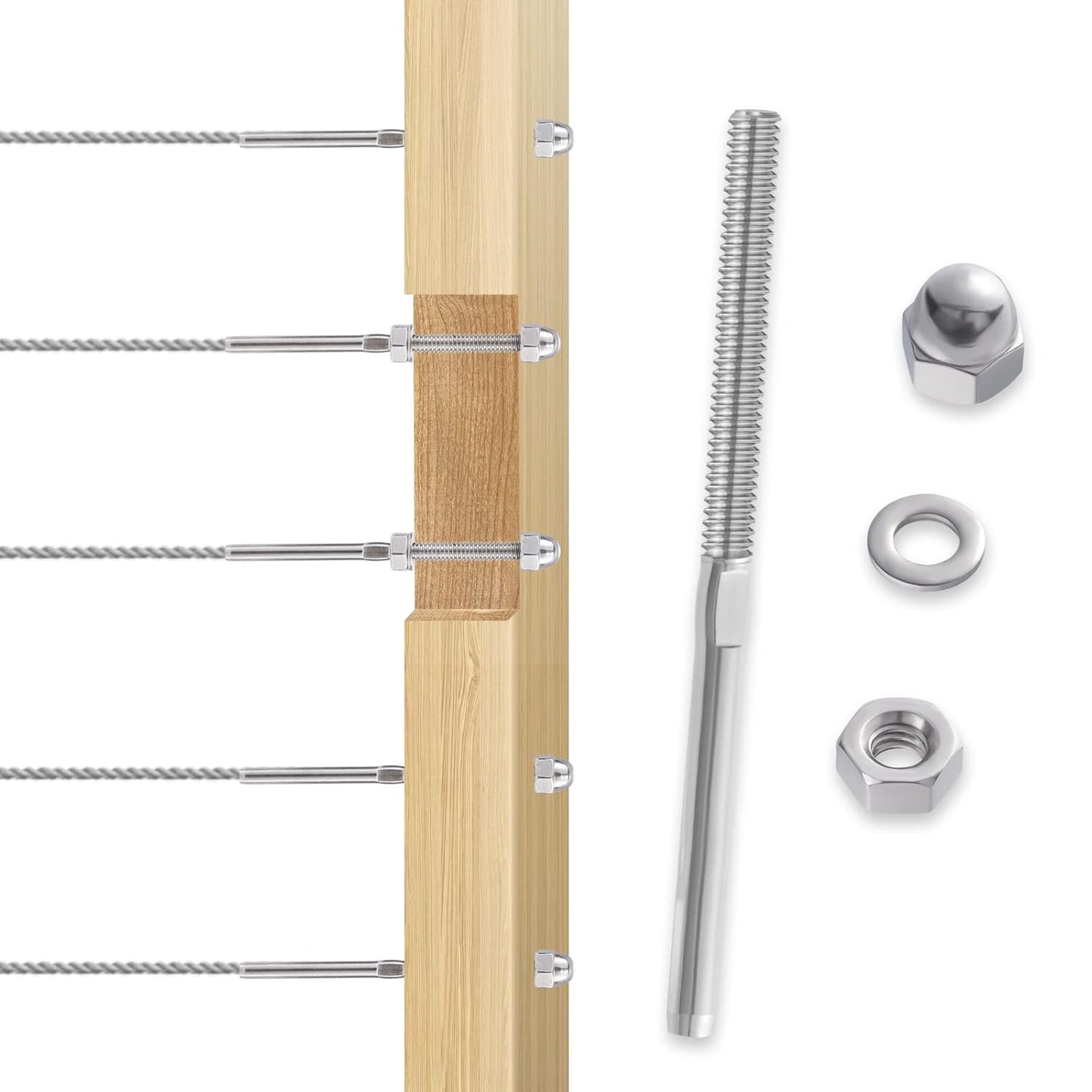

How to Install:
- Drill: Drill holes straight through your posts (both intermediate and end posts).
- Swage: Crimp the threaded stud to one end of the 1/8" cable using a hydraulic crimper.

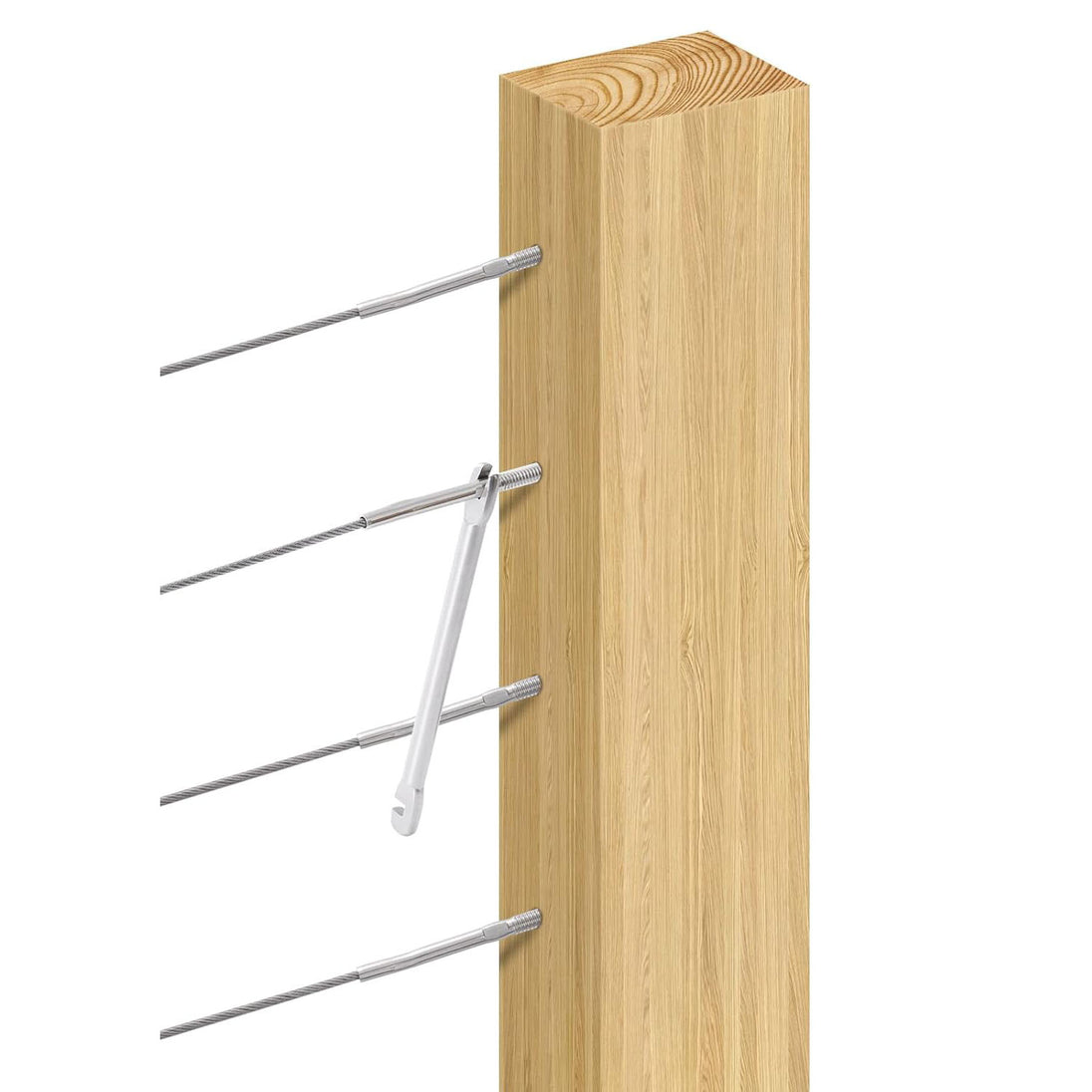

- Insert: Pass the threaded stud completely through the end post.
- Tension: Add the washer and tighten the hex nut on the backside of the post until the cable is taut.
- Cut & Cap: Crucial Step – Use a cutoff wheel or hacksaw to trim the excess threaded rod flush with the hex nut. Finally, screw on the included Acorn Cap Nut for a clean, safe finish.
Frequently Asked Questions
Q: Will the Black Titanium coating fade?
A: No. The PVD (Physical Vapor Deposition) process creates a surface harder than the steel itself. Combined with our safety coating, it is highly resistant to UV fading and wear, ensuring it stays black for years outdoors.

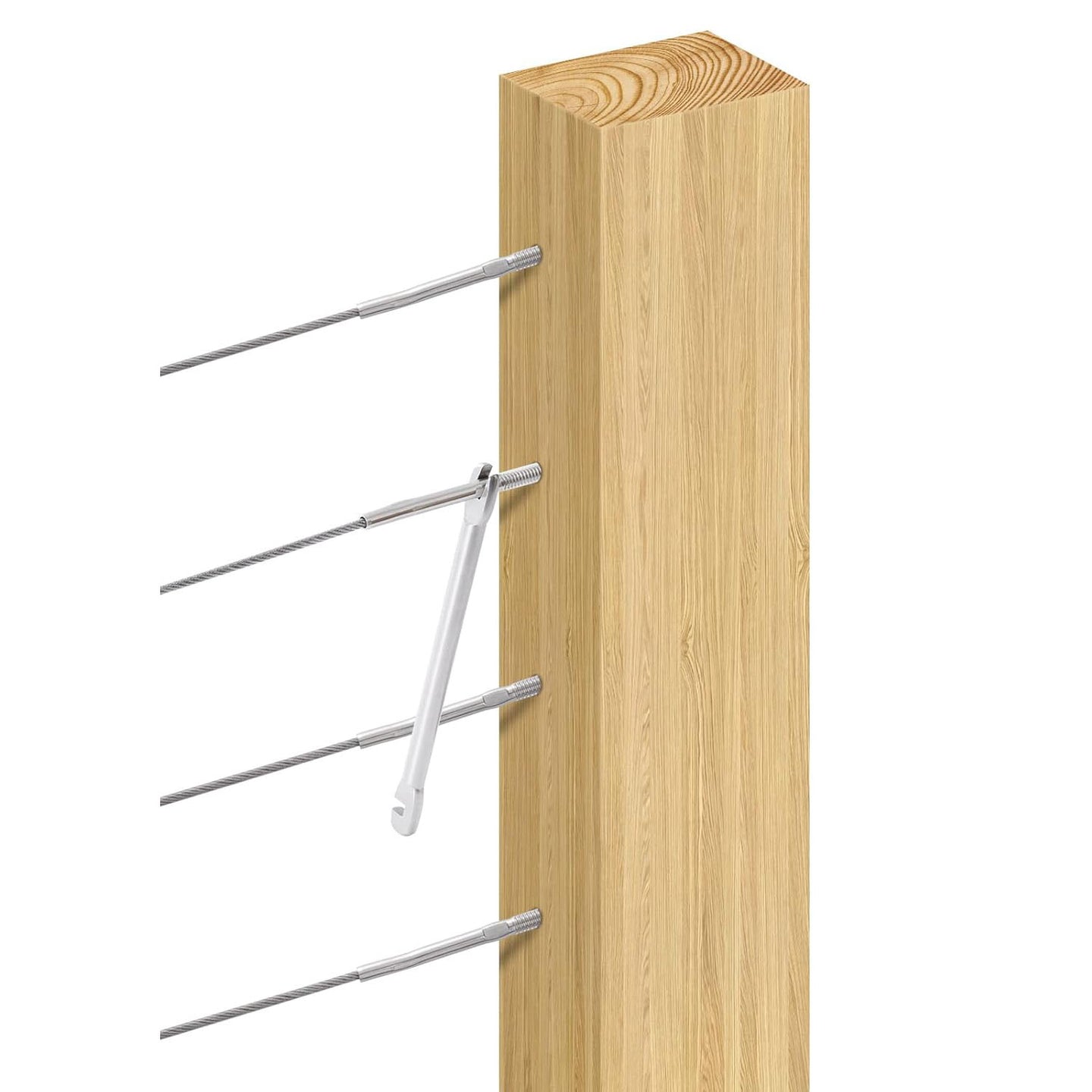

Q: Can I use this on Wood posts?
A: Yes. While it's highly recommended for metal posts, it works great on wood posts too. Just ensure you use the included flat washer to prevent the nut from sinking into the timber when tightening.

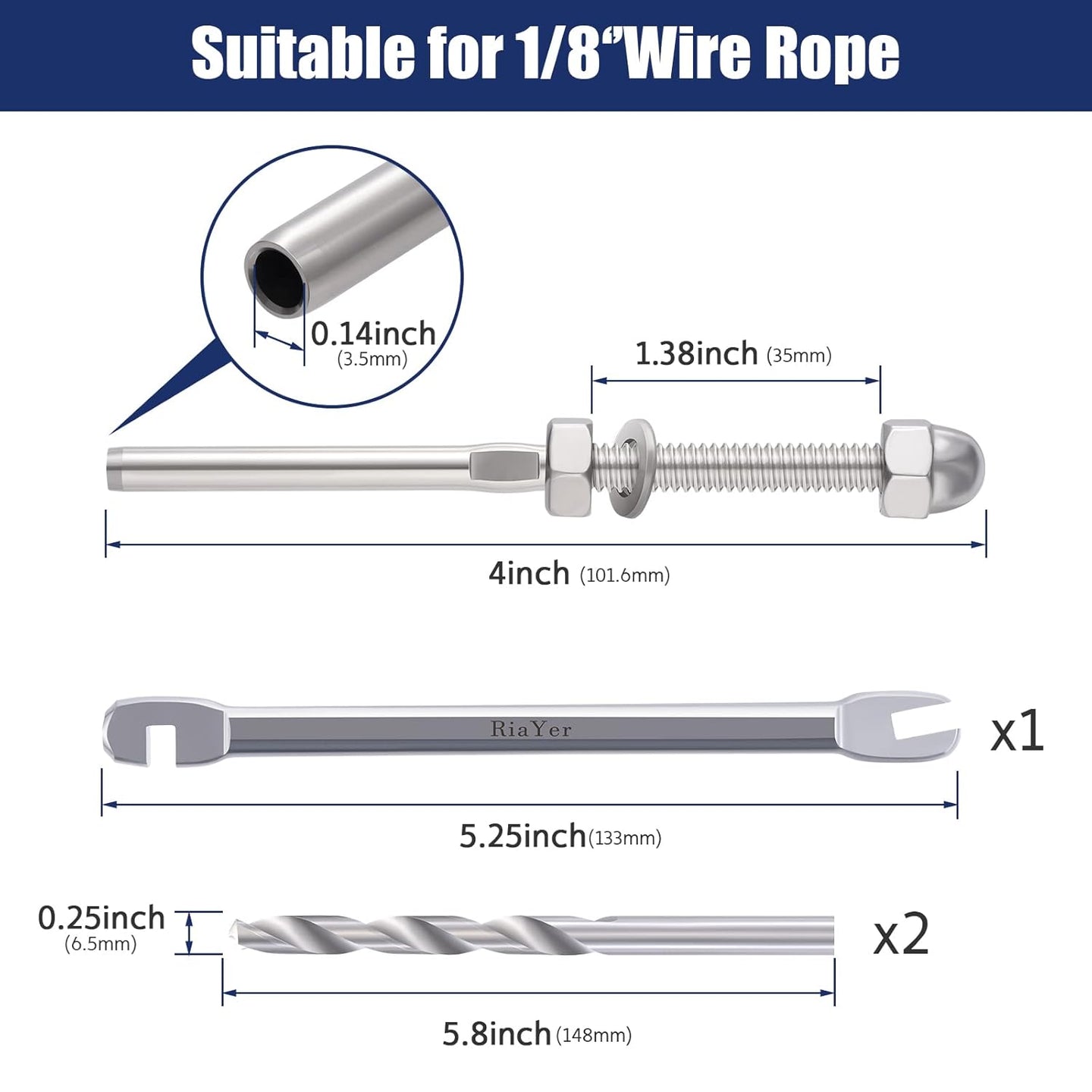

Q: What if the threaded stud is too long for my post?
A: That is by design! The long 4" thread allows it to fit different post thicknesses (from 2" up to 4"). You simply cut off the extra length with a saw after tightening the cable.
Q: Do I need extra parts for stairs?
A: Yes. Because this stud goes straight through the post, you will need our 30-Degree Angle Beveled Washers to help the nut sit flat against the angled face of your stair post.
