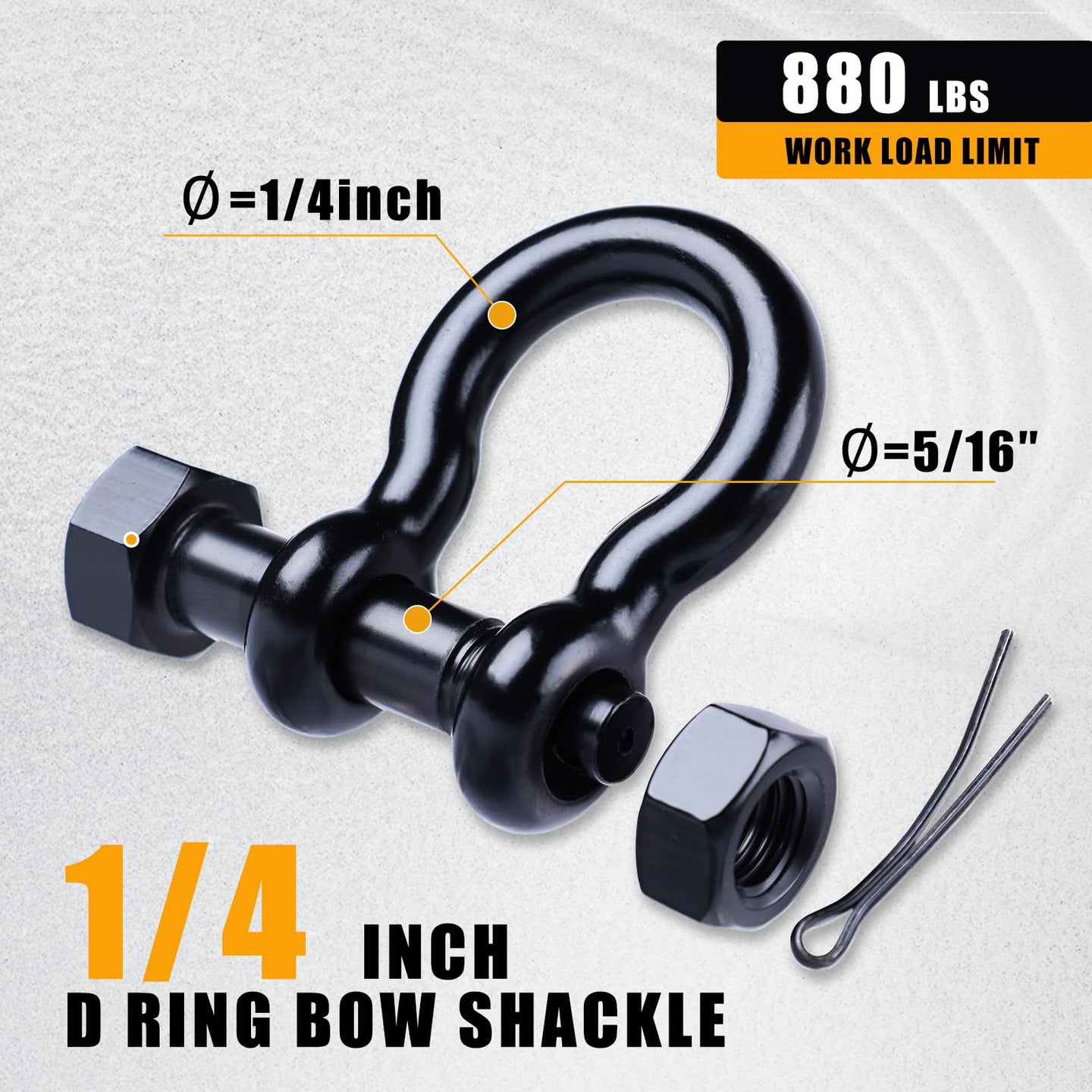

RiaYer 1/4 inch bolt-type safety bow shackle with 880 lbs working load limit.
Product breakdown of a black recovery shackle, highlighting its fail-safe cotter pin and locking nut design for secure 4x4 off-road towing.
Infographic comparing the long-lasting anti-corrosion black coating of RiaYer shackles against standard rigging hardware prone to severe rust.
Technical chart displaying the safe working load capacities and break strength specifications for heavy-duty towing and rigging shackles.
High-strength black safety bow shackle with a secure nut and cotter pin, isolated on white, used for industrial and heavy-duty anchor rigging.
Action shot of a sailboat cruising on the ocean, serving as an application background for heavy-duty marine rigging hardware.
Detailed technical dimension diagram for the black bow shackle, providing exact measurements for pin diameter and inside clearance for accurate rigging.
RiaYer 3/8 inch bolt-type safety bow shackle with 2200 lbs working load limit.
Product feature graphic of a black bolt-type shackle, highlighting its ultimate security features including the locking nut and fail-safe cotter pin.
Infographic comparing the superior rust-proof performance and durability of RiaYer's black marine shackle against standard corrosive rigging hardware.
Technical specification table detailing the safe working load limits and breaking strength capacities for various sizes of black anchor shackles.
Studio isolated shot of a heavy-duty black marine bow shackle, featuring a highly secure bolt, nut, and safety cotter pin locking mechanism.
An ocean-going sailboat cruising on the water, highlighting the need for reliable marine rigging hardware in harsh sailing conditions.
Technical dimension blueprint for the black bolt-type anchor shackle, providing exact measurements for pin diameter and inside clearance.
RiaYer 5/16 inch bolt-type safety bow shackle with 1300 lbs working load limit.
Product feature graphic of a black marine bow shackle, highlighting its highly secure bolt, nut, and safety cotter pin locking mechanism.
Infographic comparing the superior rust-proof performance of RiaYer's black stainless steel shackle against standard corrosive rigging hardware.
Technical specifications chart detailing the safe working load limits and dimensions for heavy-duty marine bow shackles.

Maximum Security for Critical Rigging with RiaYer

Engineered for permanent or long-term installations, our RiaYer Bolt-Type Safety Bow Shackles provide the highest level of security in the marine hardware class. Unlike standard screw-pin shackles, this model features a robust 3-part locking system: a bolt, a hex nut, and a stainless steel cotter pin.

Available in both Polished Silver and Matte Black finishes, these shackles are crafted from premium T316 Stainless Steel. The "Omega" bow shape allows for multi-directional loading, making them perfect for anchoring, towing, and heavy-duty industrial lifting where vibration might cause a standard pin to back out.

Key Features

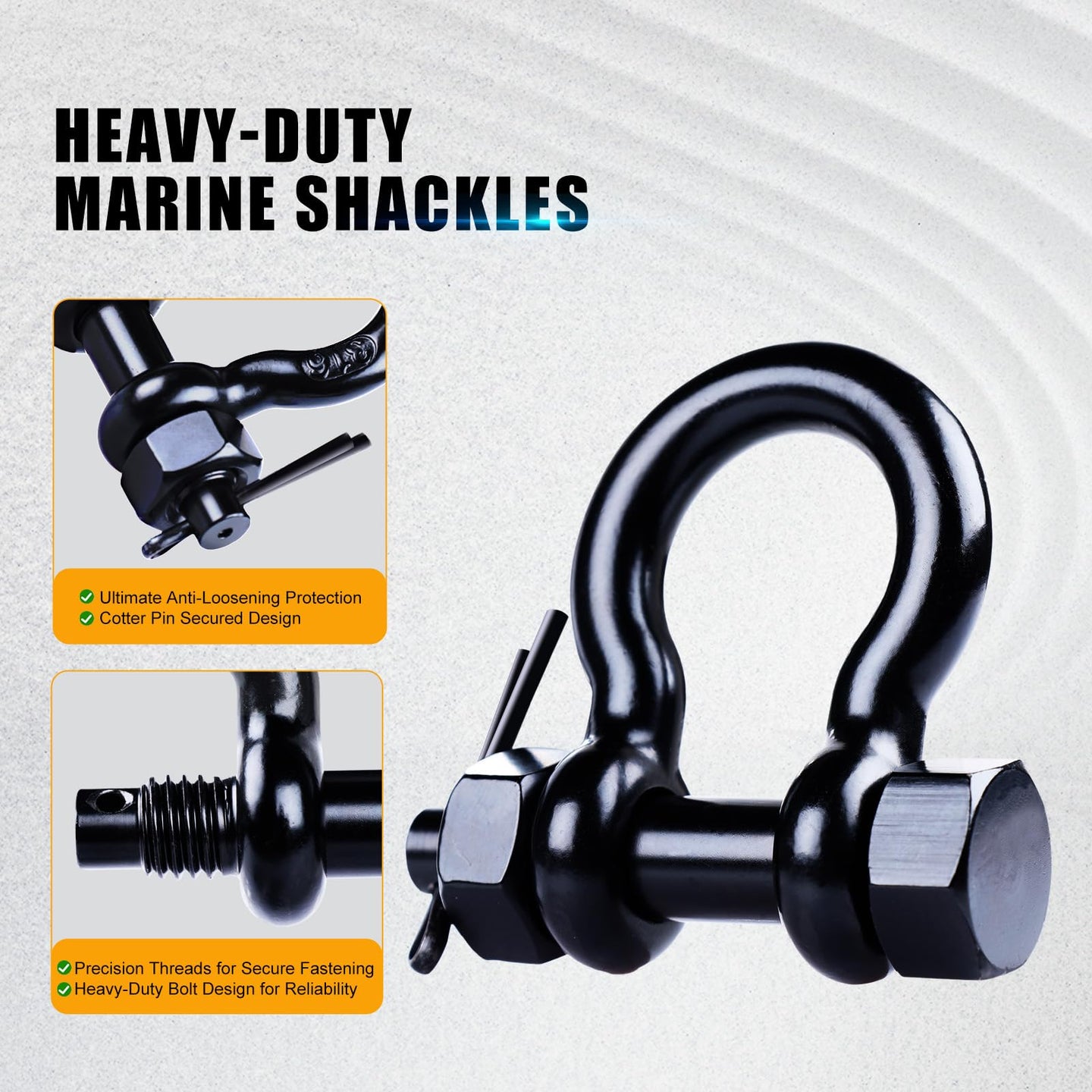

  • Triple-Lock Safety System: The combination of a threaded bolt, hex nut, and cotter pin ensures the shackle will never accidentally open, even under constant rotation or vibration.
  • Marine Grade T316 Steel: Superior molybdenum content offers maximum corrosion resistance in saltwater environments (available in natural silver or premium black coated finish).
  • Oversized Bolt Design: The bolt diameter (B) is significantly larger than the body (A) for enhanced shear strength.
  • Wide Bow Opening: The generous interior width allows for the attachment of multiple lines, thimbles, or recovery straps without binding.

How to Install (Step-by-Step Guide)

Proper installation is critical for the safety mechanism to work effectively:

  1. Disassemble: Straighten the legs of the cotter pin, pull it out, unscrew the hex nut, and slide the bolt out of the shackle body.
  2. Attach: Align the shackle bow with your anchor chain, recovery strap, or rigging point.
  3. Insert Bolt: Slide the bolt through the shackle eyes and your attachment point. Ensure it seats fully.
  4. Secure Nut: Thread the hex nut onto the bolt and tighten it with a wrench to ensure a snug fit.
  5. Lock with Pin: Insert the cotter pin through the hole at the end of the bolt. Crucial Step: Bend the split legs of the cotter pin outward to lock the nut in place.

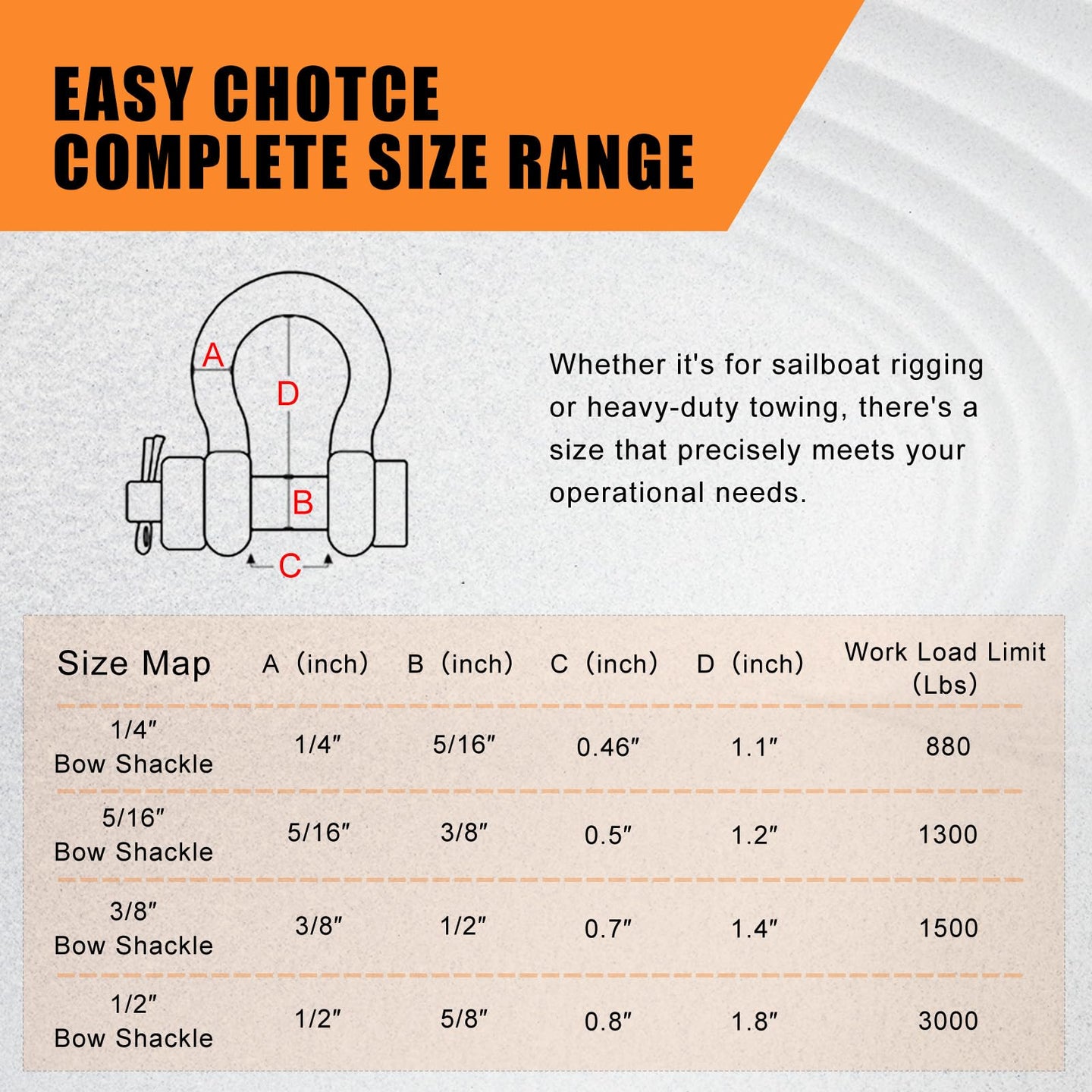

Technical Specifications & Size Map

Please refer to the chart below to ensure the pin fits your equipment.
Note: The Pin/Bolt Diameter (B) is larger than the Body Diameter (A).

Size Map A
Body Dia.		 B
Pin/Bolt Dia.		 C
Opening		 D
Inner Height		 WLL
1/4" 1/4" 5/16" 0.46" 1.1" 880 lbs
5/16" 5/16" 3/8" 0.5" 1.2" 1,300 lbs
3/8" 3/8" 1/2" 0.7" 1.4" 2,200 lbs
1/2" 1/2" 5/8" 0.8" 1.8" 3,000 lbs

Frequently Asked Questions

Q: Why choose this "Bolt Type" over a standard screw pin?
A: Bolt-type shackles are the industry standard for permanent installations. The cotter pin prevents the nut from backing off, making it safer for applications involving vibration (like engines or towing).

Q: Is the black version also 316 Stainless Steel?
A: Yes, both Silver and Black variants are made from the same high-quality T316 Stainless Steel core.

Q: How do I measure the correct size?
A: Check the "B (Pin/Bolt)" column. This is the part that must pass through your chain link. For example, a 3/8" shackle requires a 1/2" clearance hole.
