The essential installer's helper. This tool prevents wire rope from spinning while you tighten invisible receiver kits. Features a universal fit for 1/8", 5/32", and 3/16" cable railing systems.

Overview

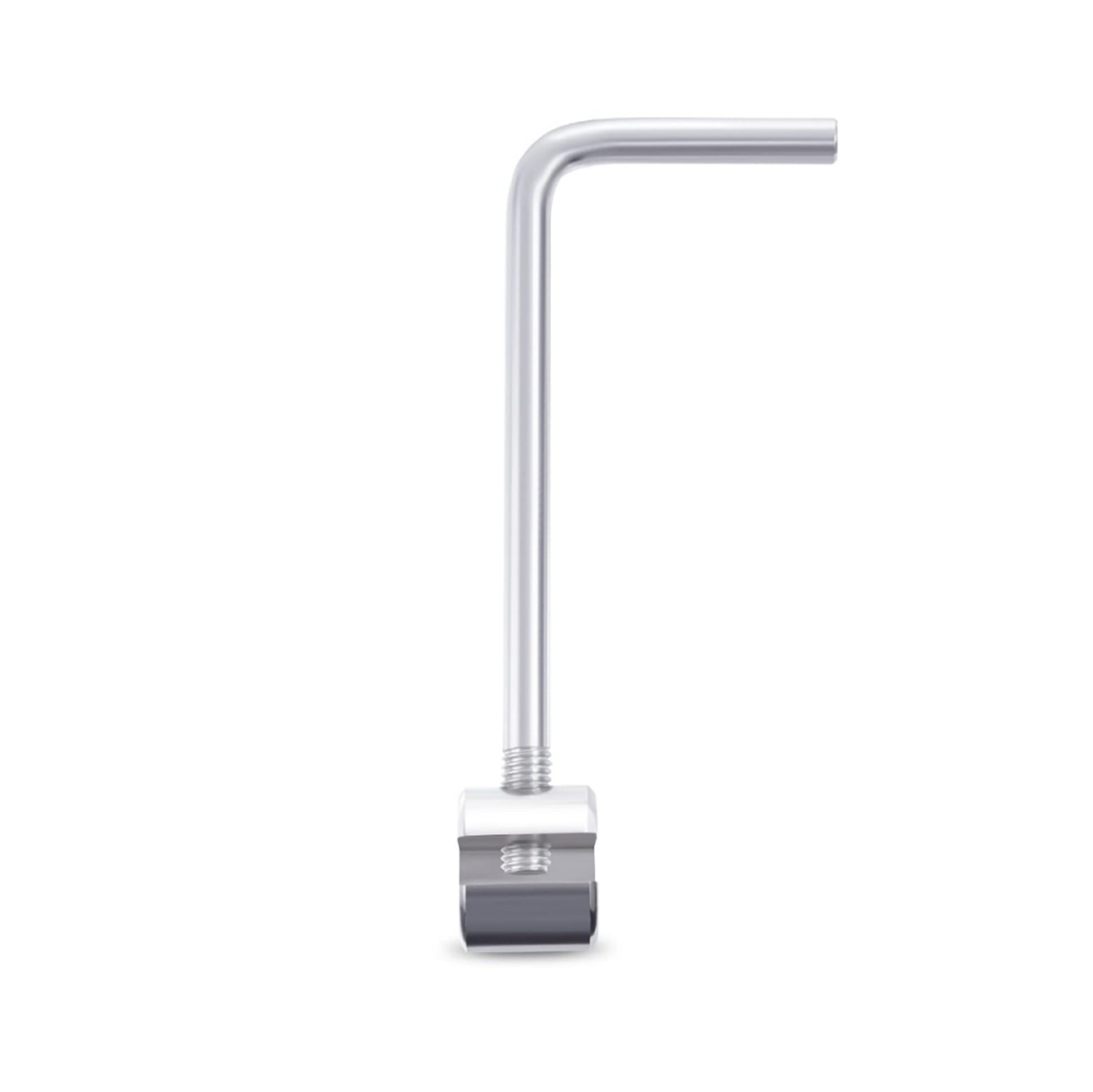

Frustrated by the wire rope spinning inside the post when you try to tighten your cable railing tensioners? The RiaYer Universal Gripping Tool is the professional solution. It is specially designed to clamp securely onto the cable, holding it completely stationary while you rotate the tensioner on the other end.

This simple yet highly effective tool ensures you can reach maximum cable tension without the wire slipping. Compact and fully adjustable, it is a must-have aid for installing Invisible Receiver Kits, Hidden Turnbuckles, and Swage fittings.

Why Do You Need This Tool?

• 🛑 Anti-Spin Function: When installing invisible tensioners, the cable often rotates along with the fitting. This tool grips the wire rope tightly, stopping the rotation so you can thread the tensioner fully and safely.

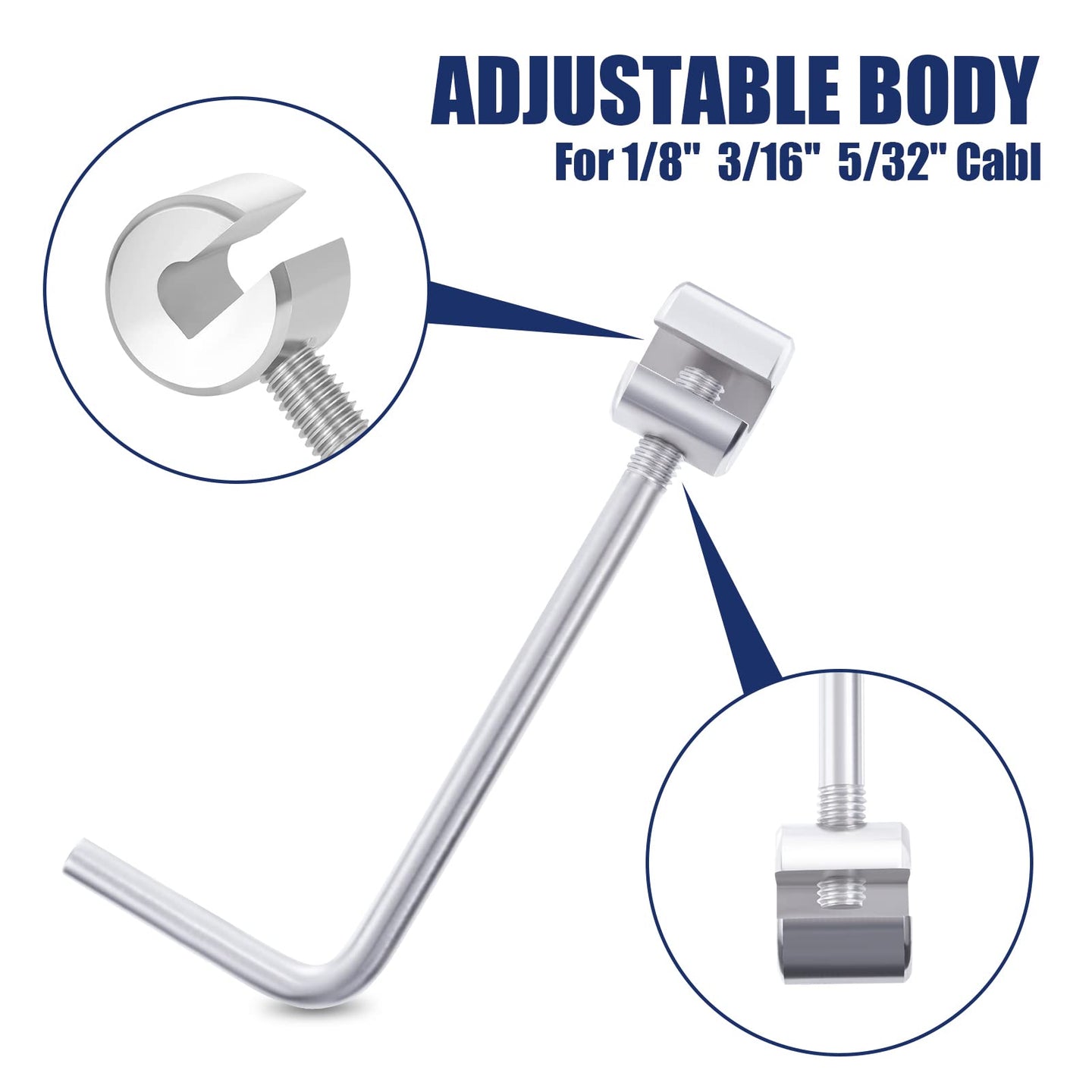

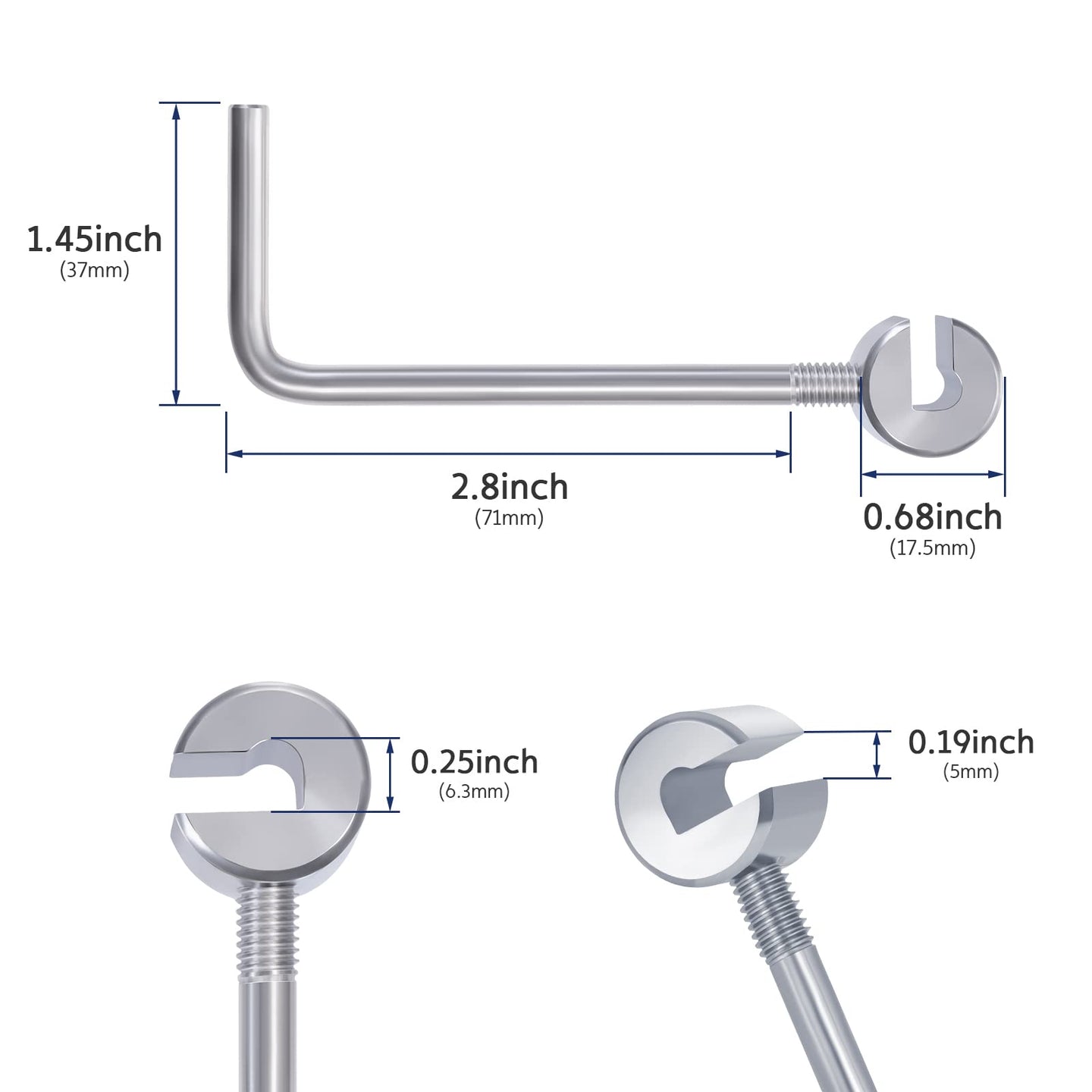

• 📏 Universal Fit: Designed with an adjustable slot (Opening width: 5mm - 6.3mm). It perfectly accommodates standard 1/8" cables, as well as heavier-duty 5/32" and 3/16" wire ropes.
• 🤲 Humanized Design: Small, lightweight, and easy to handle in tight spaces. The knurled screw allows you to tighten the clamp by hand or with an Allen wrench/pliers for extra locking grip.
• 💪 Protects Your Hands & Cable: Trying to hold a spinning, under-tension steel cable with your bare hands or regular locking pliers can cause injury or fray the stainless steel strands. This tool is purpose-built to grip firmly without causing damage.

Technical Specifications

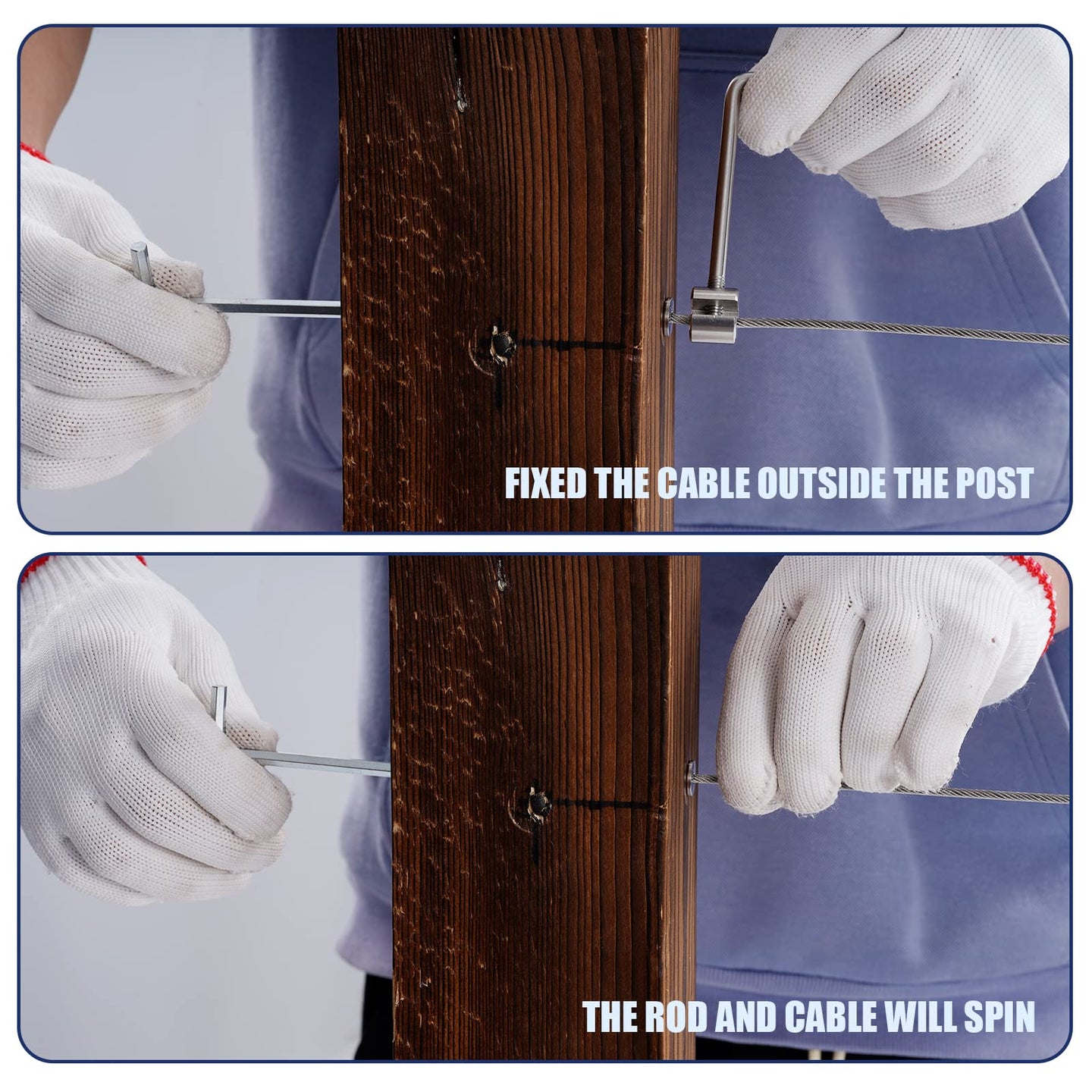

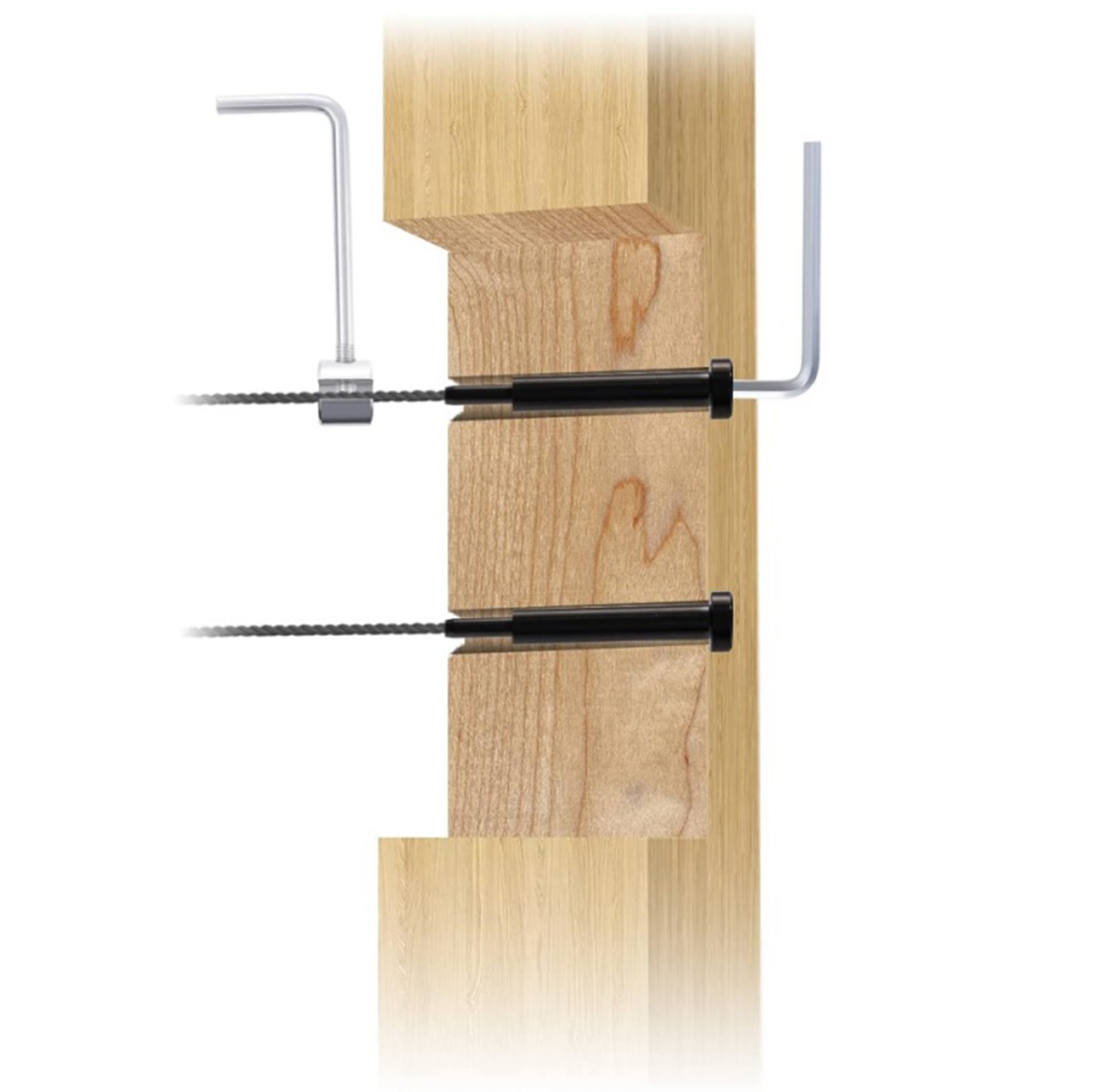

How to Use:

1. Insert: Place the wire rope into the head slot of the Gripping Tool.
2. Clamp: Tighten the locking screw on the tool until it grips the cable firmly.
3. Hold: Hold the tool in one hand (to stop the cable from turning).
4. Tension: Use your hex wrench or spanner with the other hand to tighten the Invisible Receiver/Tensioner on the post.
5. Release: Once proper tension is achieved, loosen the tool and remove it from the cable.

FAQ

Q: Is this tool really necessary?
A: It is highly recommended for "Invisible" or "Hidden" cable railing kits. Without it, tightening the cable can be incredibly difficult because the cable tends to twist and spin inside the post as you turn the fitting.

Q: Will it scratch or damage my cable?
A: No. It is designed to grip the cable securely without crushing or fraying the strands, unlike standard locking pliers which often damage the smooth finish of the wire.

Q: Does it fit my 1/8" cable?
A: Yes, it is fully adjustable and fits 1/8", 5/32", and 3/16" wire ropes perfectly.
