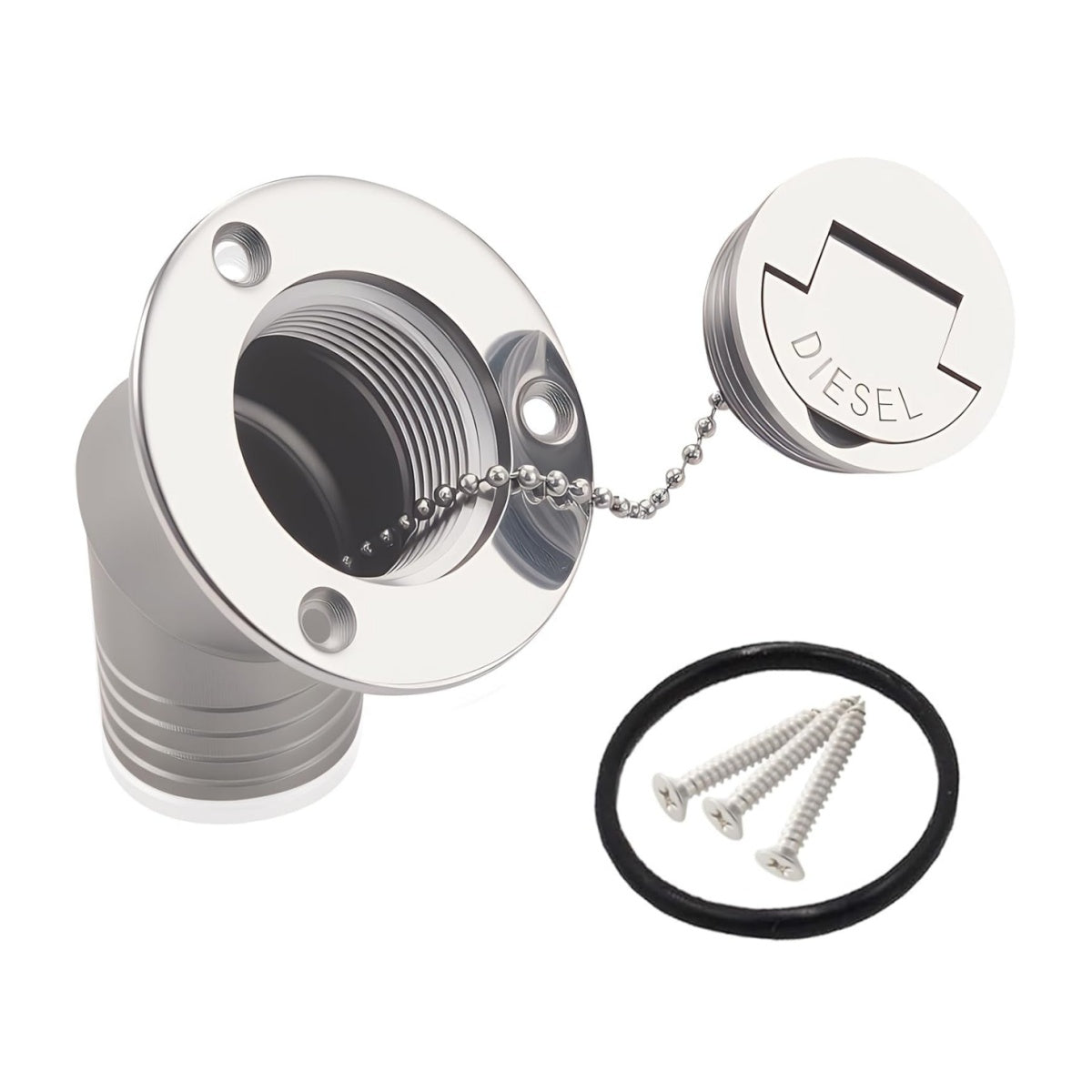

Keyless Lift-to-Open Cap | 45° Angled Neck for Tight Spaces | 316 Stainless Steel | Fits 1.5" (38mm) Diesel Hose
Product Overview
Streamline your marine refueling process with the RiaYer 1.5" Angled Diesel Deck Fill. Featuring a highly convenient Keyless Design, this boat fuel filler uses a built-in lift-tab mechanism—simply flip it up and turn to open, no deck keys required. Cast from mirror-polished 316 Marine-Grade Stainless Steel, this specific model features a 45-Degree Angled Neck (Elbow). This angled design is a lifesaver for installations where under-deck space is tight or where the fuel hose must route horizontally, effectively preventing hose kinks and ensuring smooth diesel flow.
Key Features

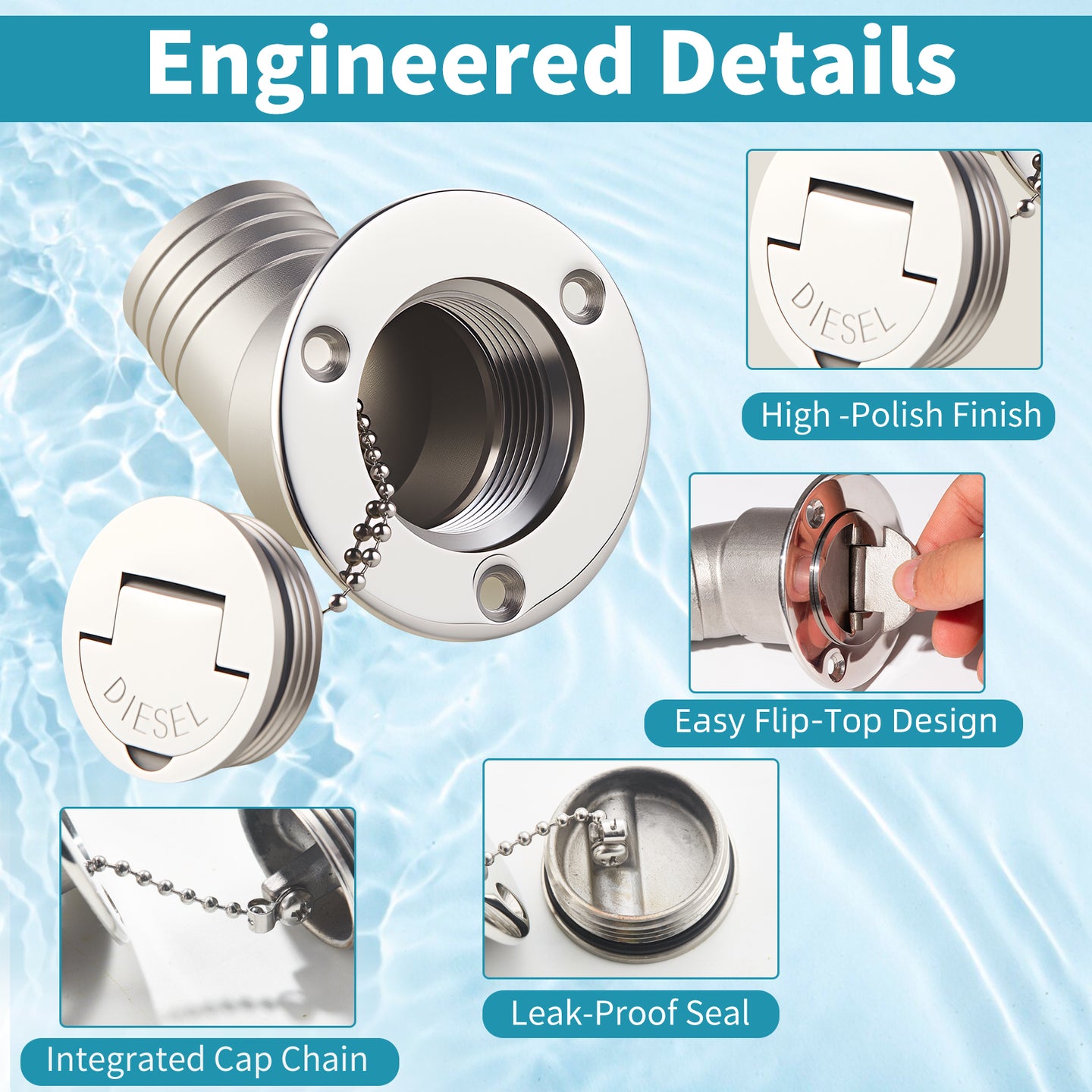

- 🔓 Keyless Convenience: Never lose your deck key again. The cap features an integrated fold-down tab. Just lift, twist, and fill. Perfect for frequent diesel refueling.
- 📐 45° Angled Neck (Elbow): Specially designed for difficult routing. The elbow shape directs the hose connection sideways, reducing strain on marine fuel lines in shallow deck clearances.

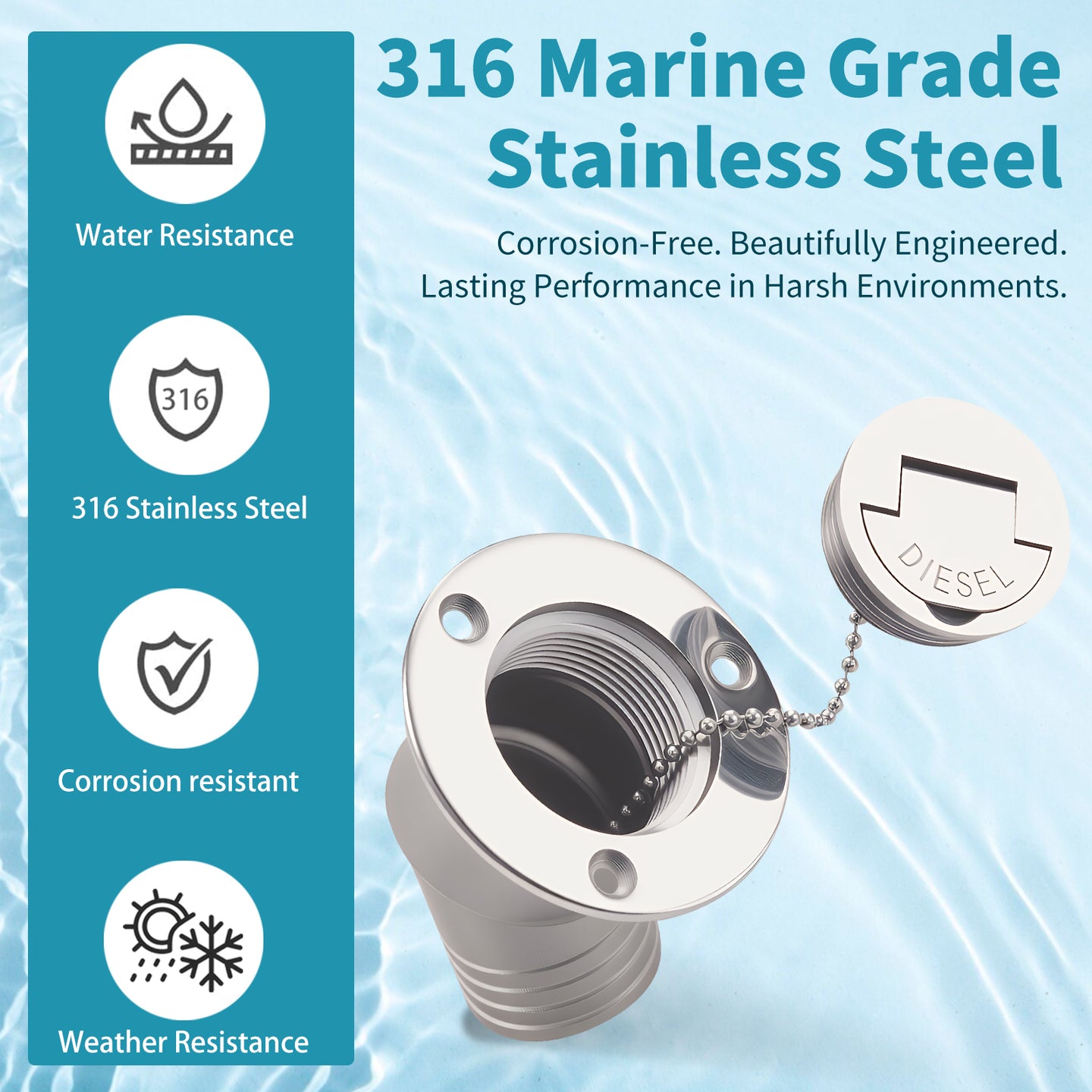

- ⚓ 316 Marine-Grade Steel: Constructed from heavy-duty 316 stainless steel to withstand harsh saltwater environments. The high-polish finish remains rust-free season after season.
- 💧 Watertight & Odorless Seal: High-quality rubber O-rings ensure a secure, watertight seal that prevents water intrusion into your diesel tank and keeps fuel odors locked inside.
- 🔗 Integrated Retaining Chain: Includes a durable stainless steel safety chain, ensuring the keyless cap stays connected to the deck fill body and is never lost overboard.

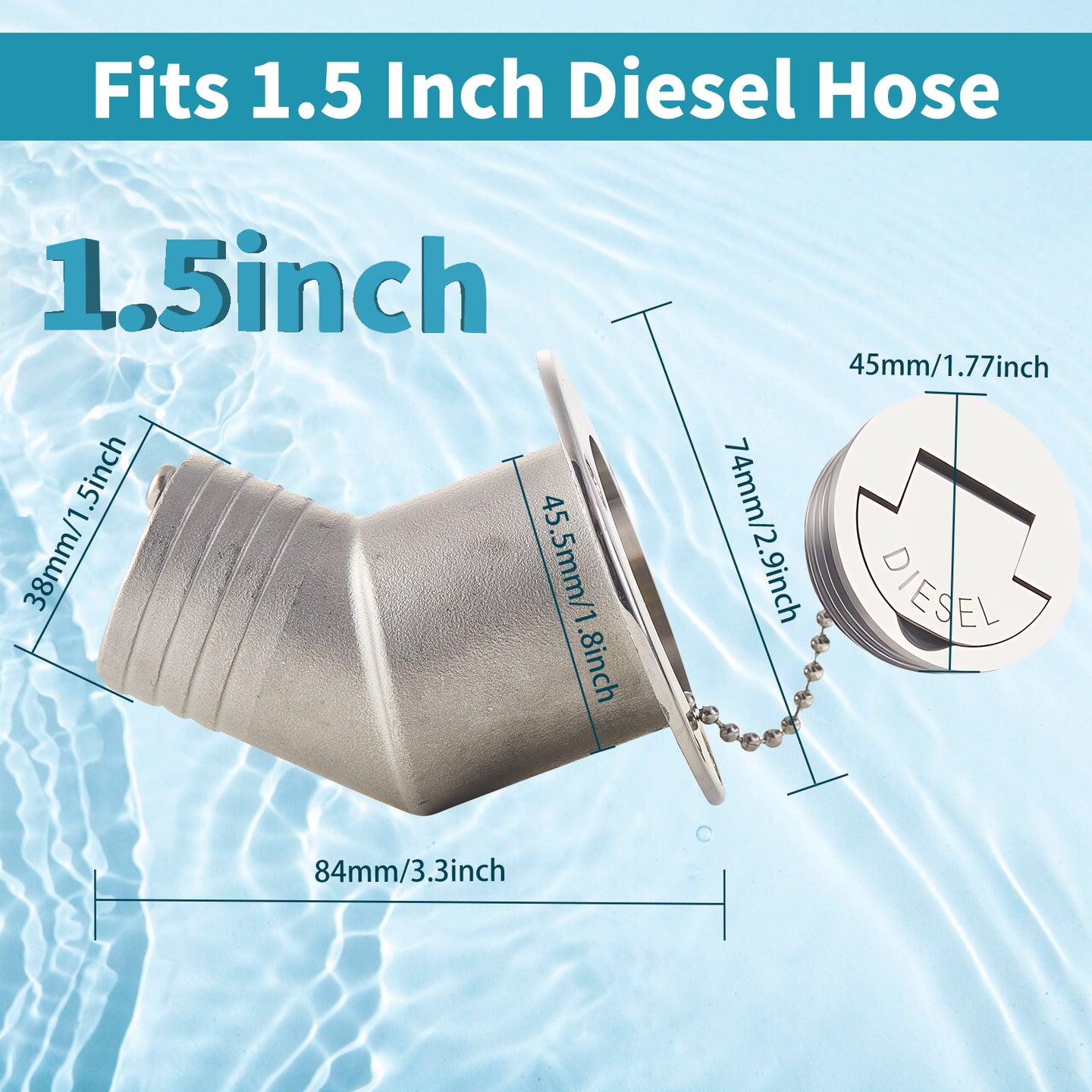

Technical Specifications
| Fuel Type | DIESEL (Clearly Engraved on Cap) |
| Hose Compatibility | Fits 1.5" (38mm) Inner Diameter (I.D.) Hose |
| Neck Style | Angled / Elbow (Approx. 45 Degree) |
| Material | Premium 316 Stainless Steel |
| Flange Diameter | 2.9" (74mm) |
| Cap Diameter | 1.77" (45mm) |
| Overall Depth | 3.3" (84mm) |

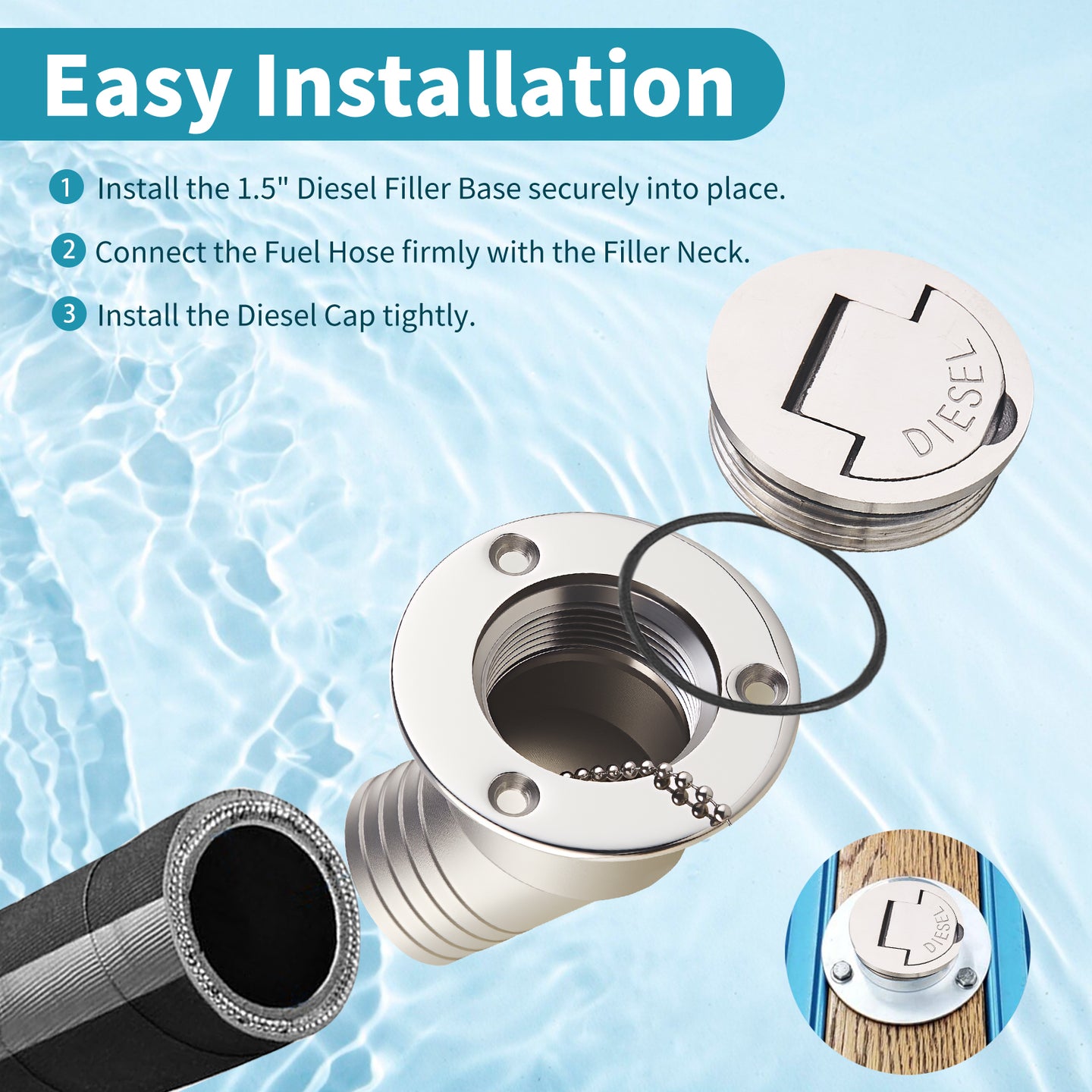

Installation Guide
- Check Clearance: Ensure sufficient horizontal space under the deck for the angled neck. This design requires less vertical depth but more horizontal room.
- Hole Saw: Cut a precise hole in the mounting surface (approx. 1.6" / 40mm hole saw recommended).
- Connect Hose: Fit your 1.5-inch marine diesel hose onto the barbed neck. Secure tightly with double stainless steel hose clamps.

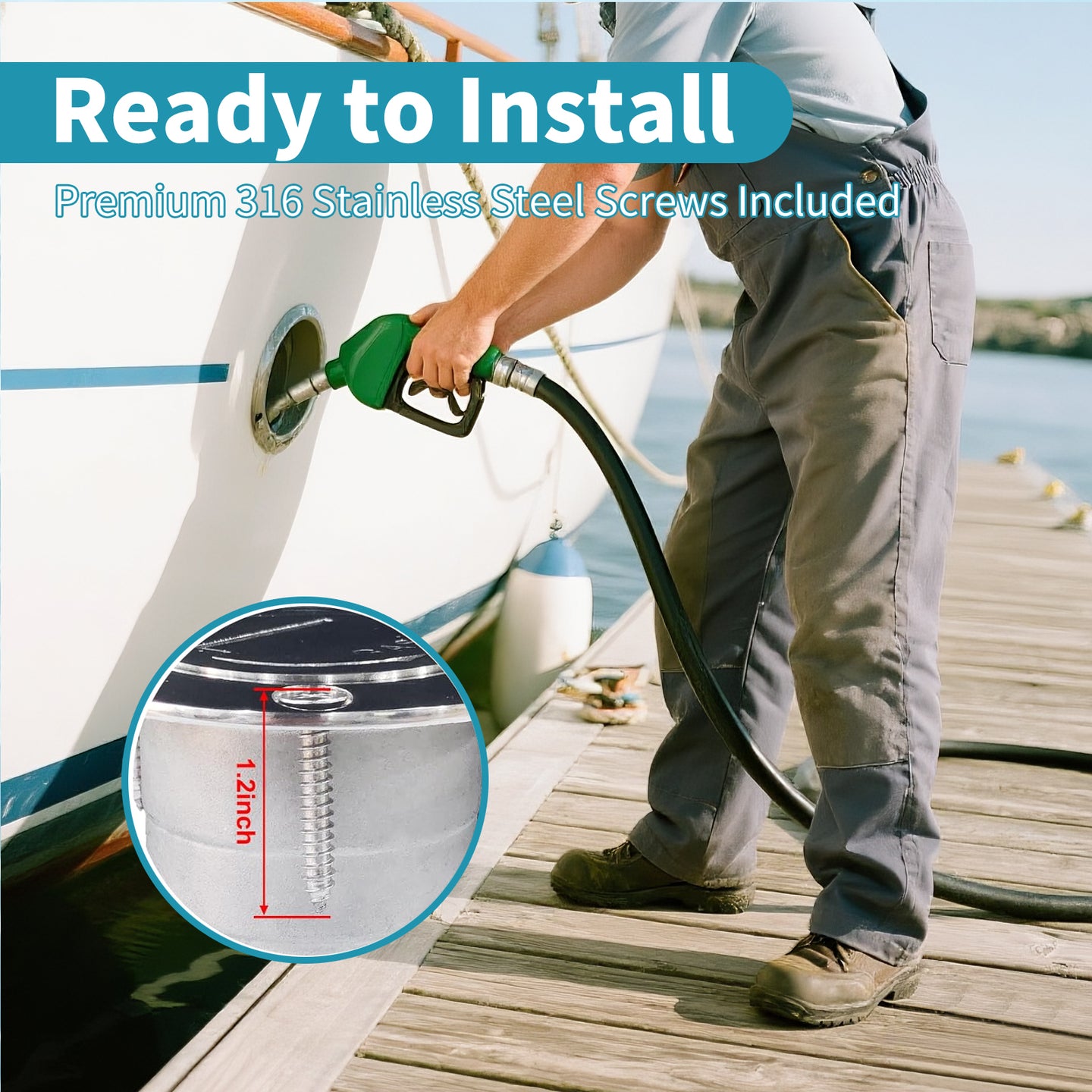

- Mounting: Apply marine-grade sealant under the flange, insert the unit, and secure it with 3 countersunk screws (not included).

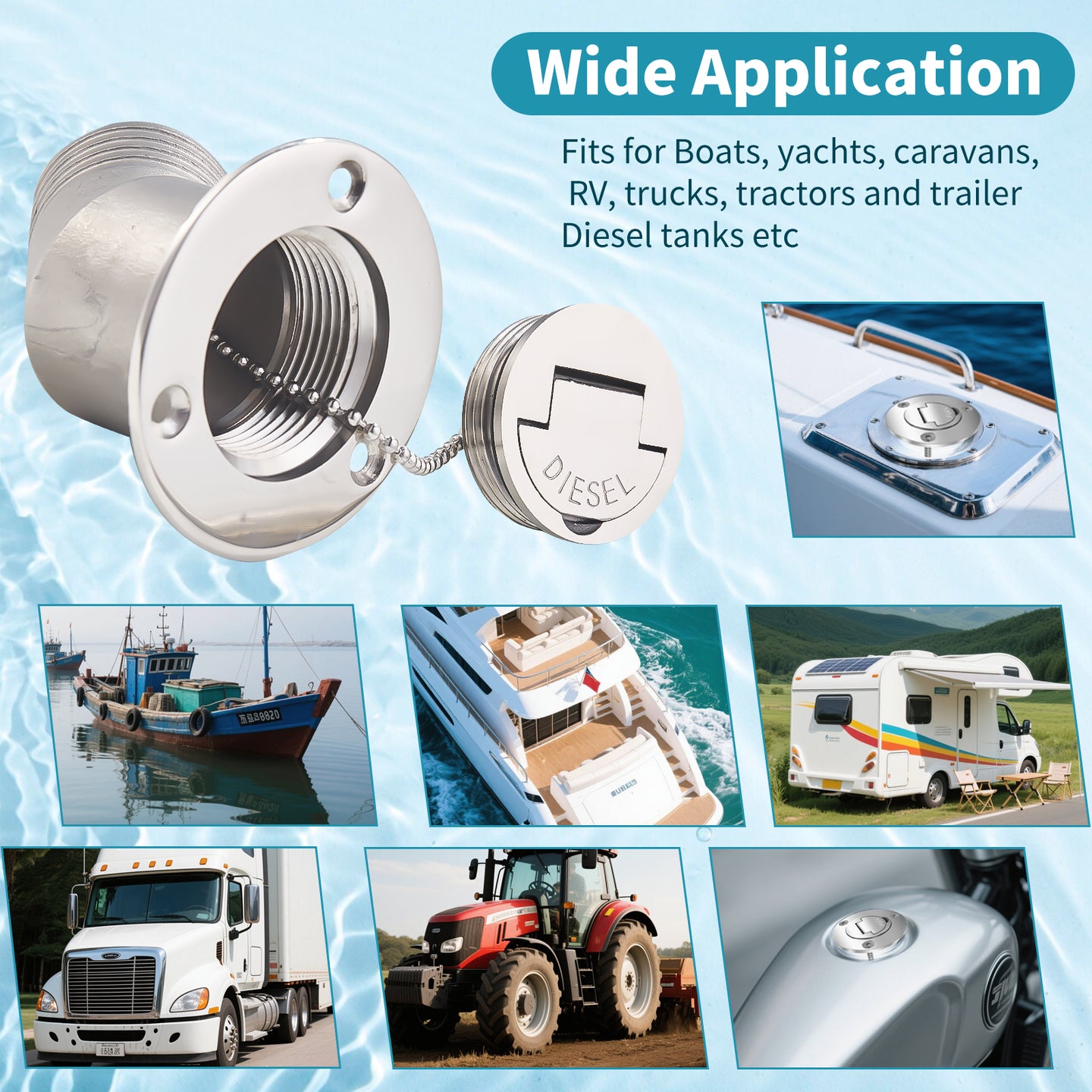

Versatile Applications
Perfect for vessels and vehicles requiring difficult fuel hose routing:
- ✔ Motorboats & Powerboats
- ✔ Sailing Yachts
- ✔ Pontoon & Fishing Boats
- ✔ RV & Camper Fuel/Water Ports
- ✔ Heavy Farm Equipment
Frequently Asked Questions (FAQ)
Q: Why should I choose an "Angled" deck fill over a "Straight" one?
A: An angled (elbow) neck is crucial when you have limited vertical clearance under the gunwale, or when the fuel hose must immediately turn horizontally. It prevents the hose from kinking, ensuring unrestricted fuel flow. (Note: This product listing is exclusively for the 45° Angled model).
Q: Is a Keyless marine cap secure enough?
A: Yes. While it doesn't have an anti-theft key lock, it is mechanically very secure. The deep threaded design combined with the internal O-ring ensures the cap will not vibrate loose while underway and remains 100% watertight.
Q: Does this fit standard marine fuel hoses?
A: Yes, it is explicitly designed for the industry-standard 1.5-inch (38mm) Inner Diameter marine diesel fuel hose.
Why Choose RiaYer Marine Hardware?
We focus on practical solutions that make boating easier. Our Keyless Angled Diesel Deck Fill solves two major pain points: it eliminates the hassle of searching for lost deck keys, and its 45-degree angled neck solves tight hose routing issues. Crafted from real 316 Stainless Steel, it guarantees a lifetime of shine, durability, and reliable performance.
