Ultra-Heavy Duty 6-Inch Marine Hinge for Demanding Environments

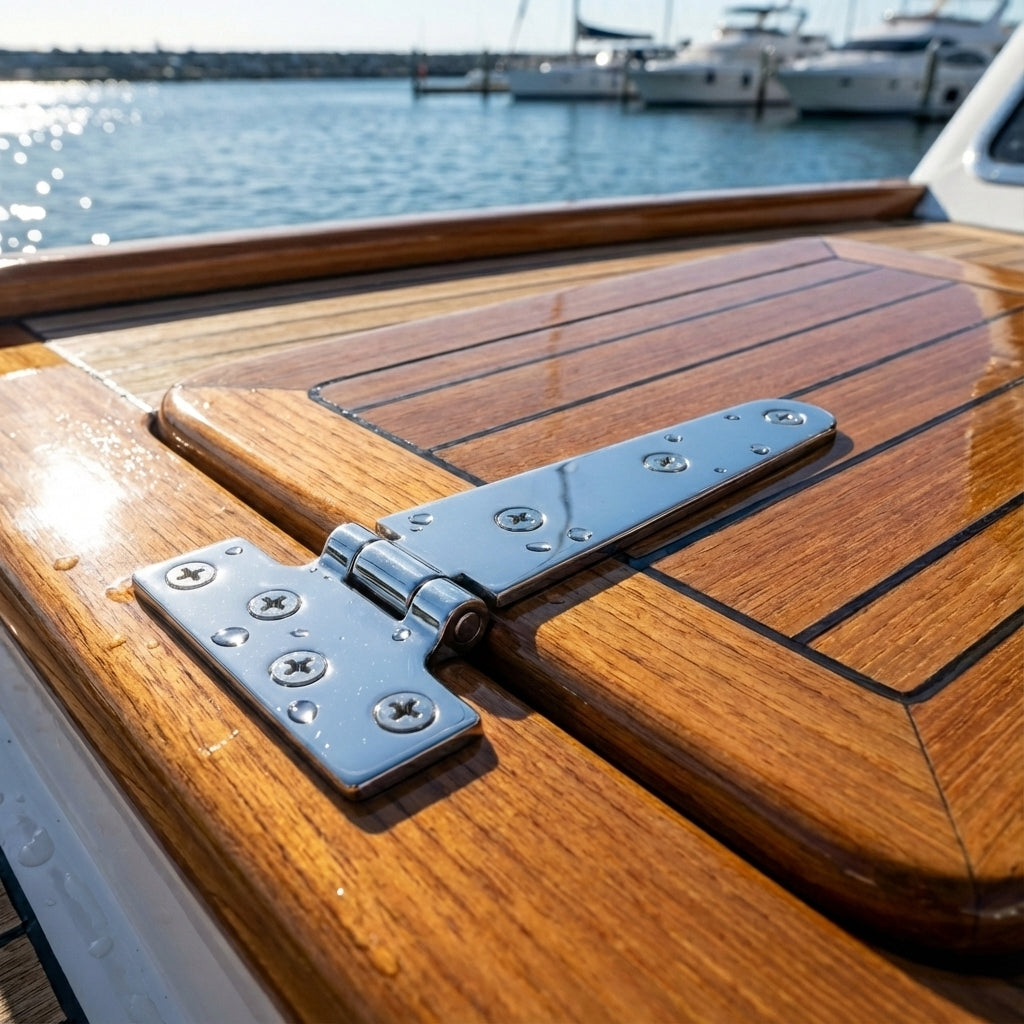

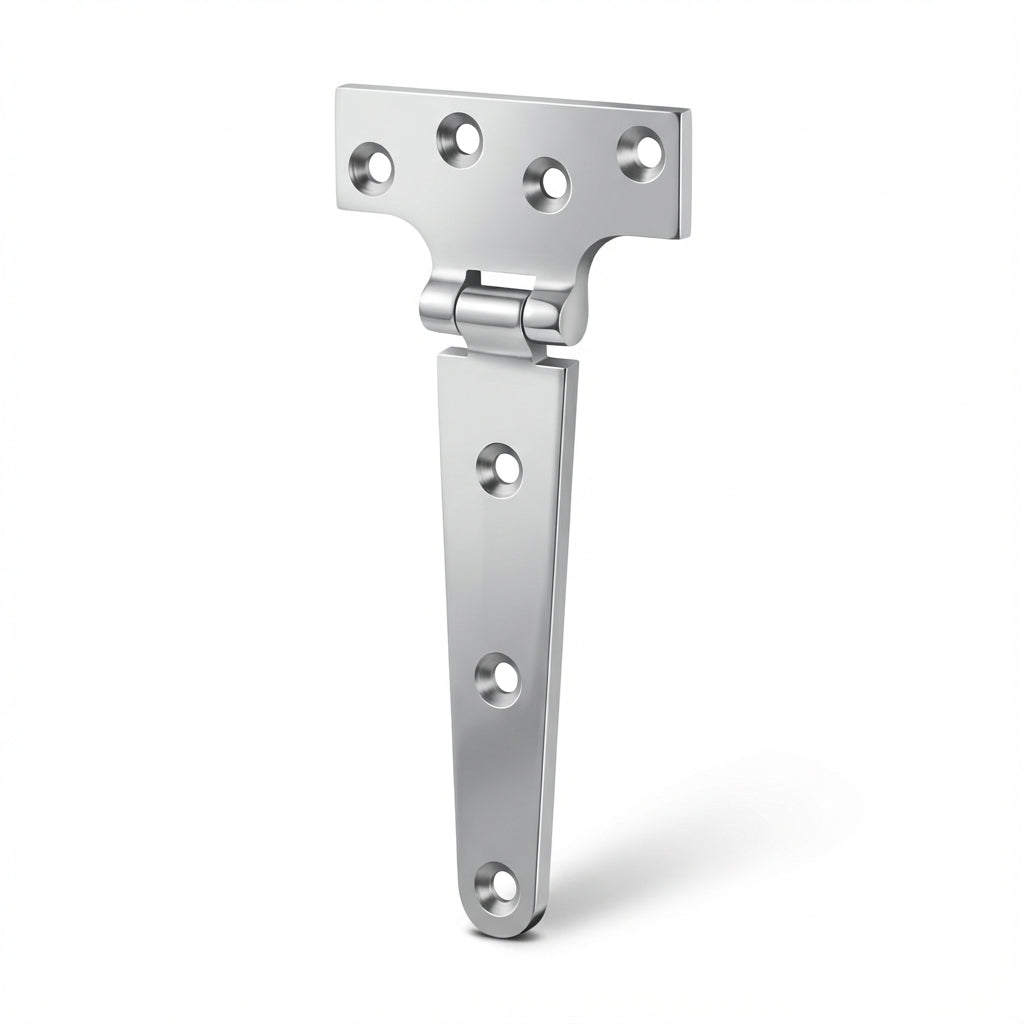

Upgrade your marine or industrial setup with our Premium 316 Stainless Steel 6-Inch T-Hinge. Unlike standard stamped hinges, this large strap hinge is cast from solid stainless steel with a massive 4.5mm (0.17") thickness. It is specifically designed to support heavy engine covers, large deck hatches, and dock gates without bending or sagging.
Featuring a high-mirror polish for maximum corrosion resistance in saltwater, this heavy-duty hardware is the ultimate rust-proof upgrade for your luxury yacht, marina, or heavy-duty trailer.
Key Features
- Solid 316 Marine Grade Steel: Superior resistance to rust, pitting, and oxidation compared to standard 304 stainless. Built to survive harsh ocean environments.
- Extra Thick Construction: Engineered with a 4.5mm thickness and a longer strap, providing exceptional leverage and load-bearing capacity for heavy doors.

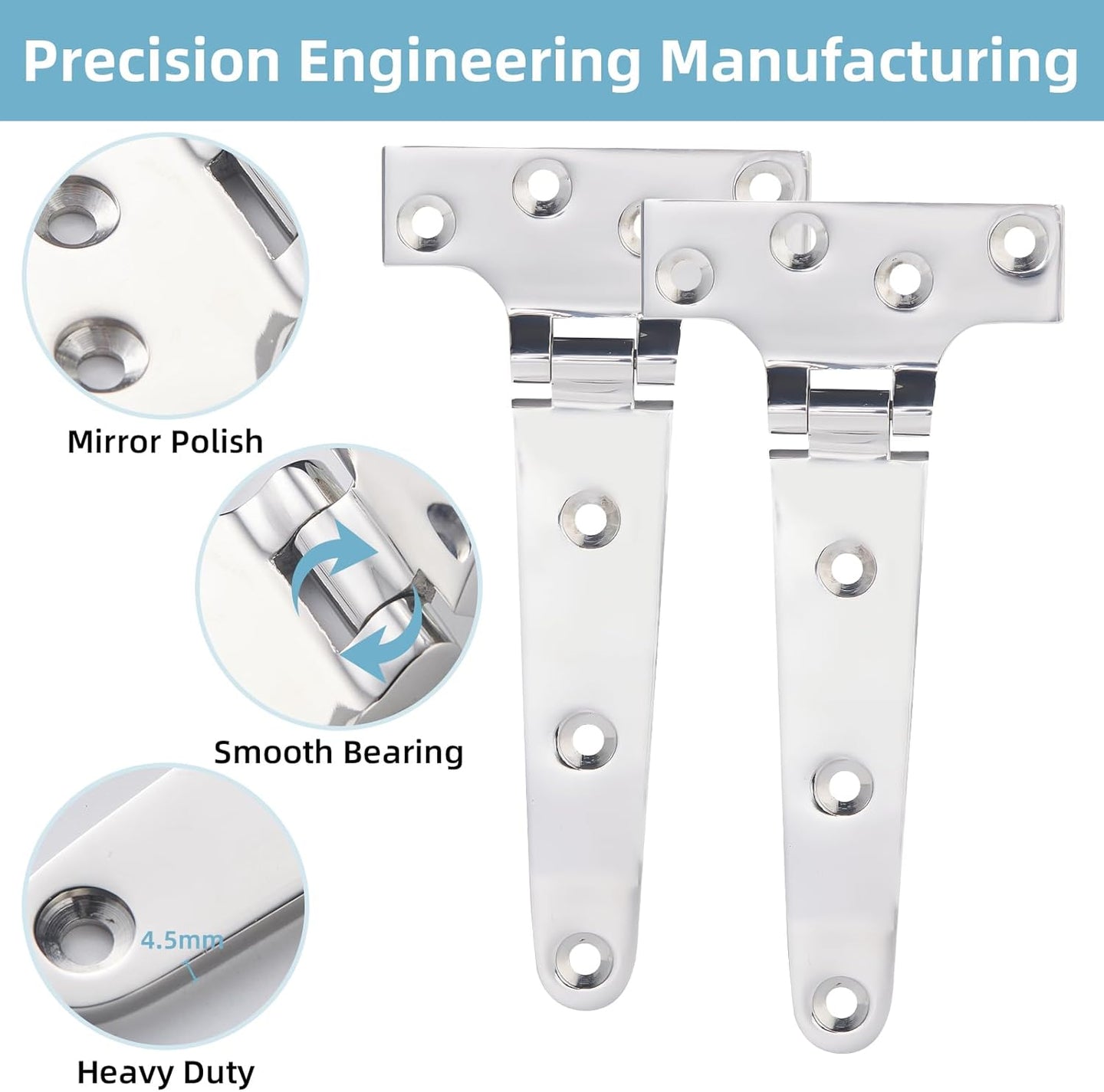

- Complete Installation Kit: Includes matching 316 stainless steel mounting screws, ensuring your entire assembly remains rust-free.

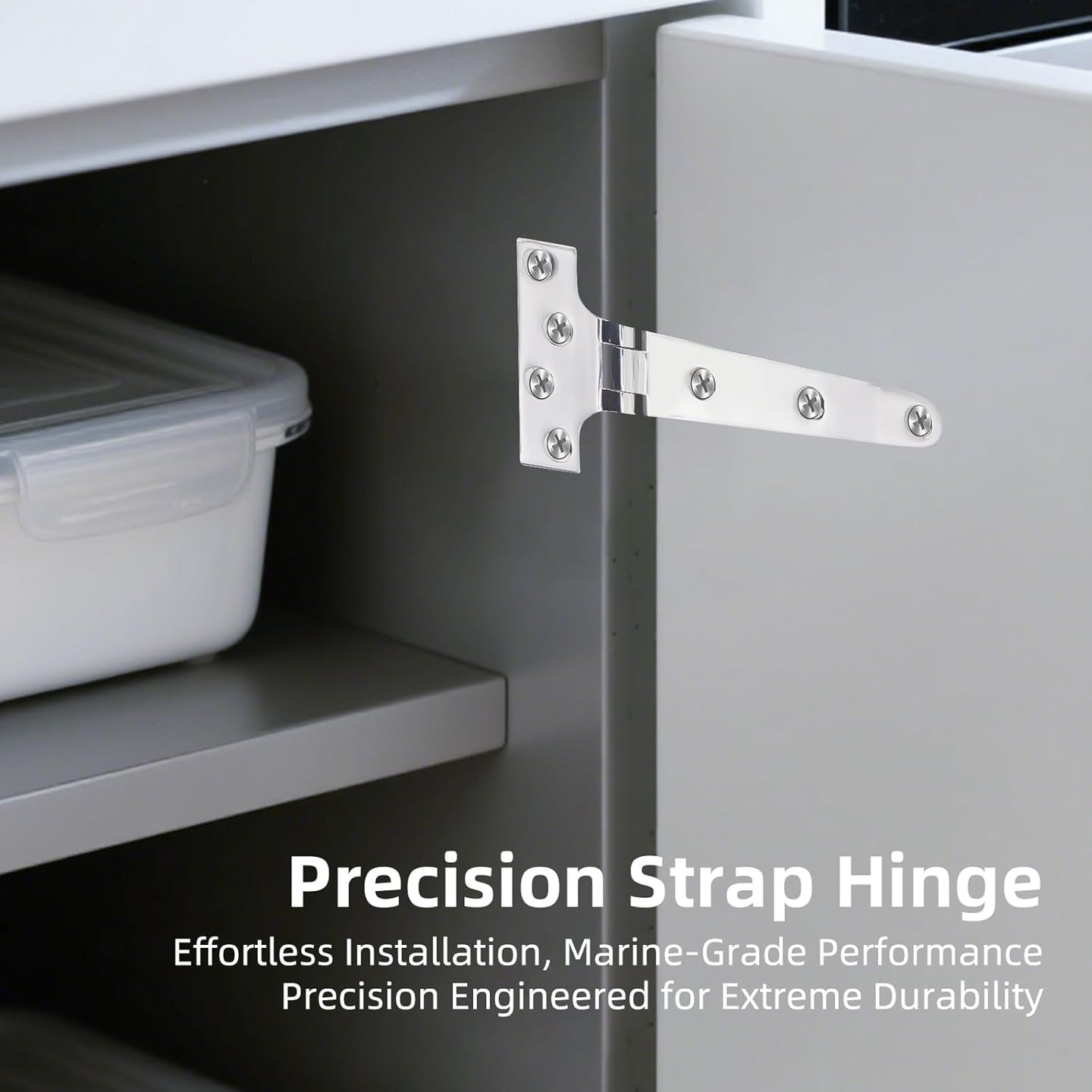

- Smooth & Silent: Precision-machined knuckle joints ensure friction-free operation and a wide opening angle.

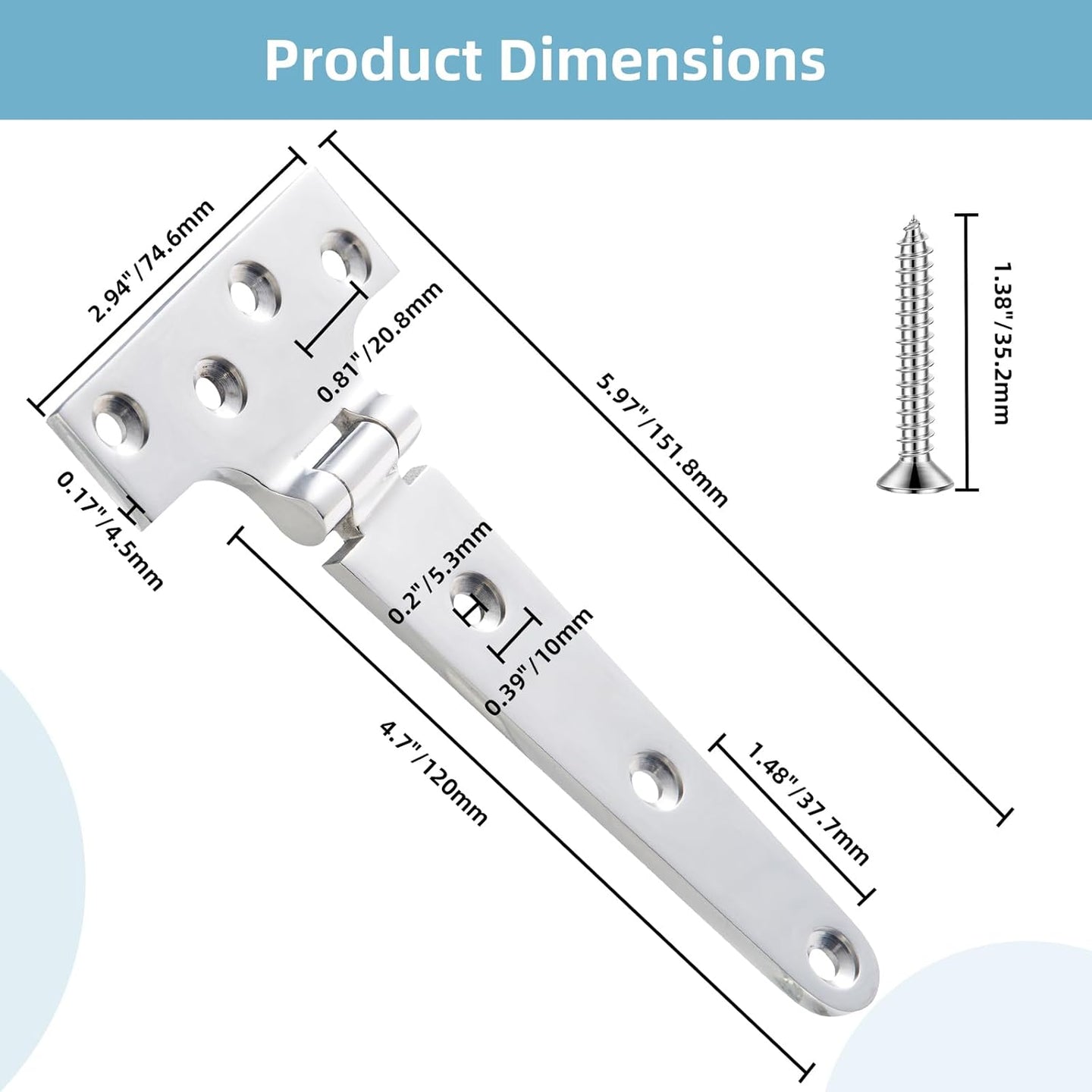

Technical Specifications
| Specification | Measurement |
|---|---|
| Model Size | 6-Inch (Large) |
| Total Length | 5.97" (152mm) |
| Strap Length | 4.7" (120mm) |
| Width | 2.94" (75mm) |
| Thickness | 0.17" (4.5mm) - Heavy Duty |
Frequently Asked Questions
Q: Are mounting screws included?
A: Yes! Each 6-inch hinge comes with a set of matching 316 stainless steel screws (approx. 1.38" / 35mm length), so you can install it right out of the box.
Q: What is this 6-inch size best used for?
A: Due to its longer strap and 4.5mm thickness, the 6-inch model provides excellent leverage. It is highly recommended for heavier applications like boat engine hatches, large dock gates, barn-style doors, and heavy utility trailer ramps.
Q: Is the 4.5mm thickness standard?
A: No, most standard hinges on the market are only 2mm or 3mm thick. Our 4.5mm cast design makes this a true "Heavy Duty" class hinge.
Ultra-Heavy Duty 6-Inch Marine Hinge for Demanding Environments
Upgrade your marine or industrial setup with our Premium 316 Stainless Steel 6-Inch T-Hinge. Unlike standard stamped hinges, this large strap hinge is cast from solid stainless steel with a massive 4.5mm (0.17") thickness. It is specifically designed to support heavy engine covers, large deck hatches, and dock gates without bending or sagging.
Featuring a high-mirror polish for maximum corrosion resistance in saltwater, this heavy-duty hardware is the ultimate rust-proof upgrade for your luxury yacht, marina, or heavy-duty trailer.
Key Features
- Solid 316 Marine Grade Steel: Superior resistance to rust, pitting, and oxidation compared to standard 304 stainless. Built to survive harsh ocean environments.
- Extra Thick Construction: Engineered with a 4.5mm thickness and a longer strap, providing exceptional leverage and load-bearing capacity for heavy doors.
- Complete Installation Kit: Includes matching 316 stainless steel mounting screws, ensuring your entire assembly remains rust-free.
- Smooth & Silent: Precision-machined knuckle joints ensure friction-free operation and a wide opening angle.
Technical Specifications
| Specification | Measurement |
|---|---|
| Model Size | 6-Inch (Large) |
| Total Length | 5.97" (152mm) |
| Strap Length | 4.7" (120mm) |
| Width | 2.94" (75mm) |
| Thickness | 0.17" (4.5mm) - Heavy Duty |
Frequently Asked Questions
Q: Are mounting screws included?
A: Yes! Each 6-inch hinge comes with a set of matching 316 stainless steel screws (approx. 1.38" / 35mm length), so you can install it right out of the box.
Q: What is this 6-inch size best used for?
A: Due to its longer strap and 4.5mm thickness, the 6-inch model provides excellent leverage. It is highly recommended for heavier applications like boat engine hatches, large dock gates, barn-style doors, and heavy utility trailer ramps.
Q: Is the 4.5mm thickness standard?
A: No, most standard hinges on the market are only 2mm or 3mm thick. Our 4.5mm cast design makes this a true "Heavy Duty" class hinge.
- Regular price
- $21.99
Ultra-Heavy Duty 6-Inch Marine Hinge for Demanding Environments
Upgrade your marine or industrial setup with our Premium 316 Stainless Steel 6-Inch T-Hinge. Unlike standard stamped hinges, this large strap hinge is cast from solid stainless steel with a massive 4.5mm (0.17") thickness. It is specifically designed to support heavy engine covers, large deck hatches, and dock gates without bending or sagging.
Featuring a high-mirror polish for maximum corrosion resistance in saltwater, this heavy-duty hardware is the ultimate rust-proof upgrade for your luxury yacht, marina, or heavy-duty trailer.
Key Features
- Solid 316 Marine Grade Steel: Superior resistance to rust, pitting, and oxidation compared to standard 304 stainless. Built to survive harsh ocean environments.
- Extra Thick Construction: Engineered with a 4.5mm thickness and a longer strap, providing exceptional leverage and load-bearing capacity for heavy doors.
- Complete Installation Kit: Includes matching 316 stainless steel mounting screws, ensuring your entire assembly remains rust-free.
- Smooth & Silent: Precision-machined knuckle joints ensure friction-free operation and a wide opening angle.
Technical Specifications
| Specification | Measurement |
|---|---|
| Model Size | 6-Inch (Large) |
| Total Length | 5.97" (152mm) |
| Strap Length | 4.7" (120mm) |
| Width | 2.94" (75mm) |
| Thickness | 0.17" (4.5mm) - Heavy Duty |
Frequently Asked Questions
Q: Are mounting screws included?
A: Yes! Each 6-inch hinge comes with a set of matching 316 stainless steel screws (approx. 1.38" / 35mm length), so you can install it right out of the box.
Q: What is this 6-inch size best used for?
A: Due to its longer strap and 4.5mm thickness, the 6-inch model provides excellent leverage. It is highly recommended for heavier applications like boat engine hatches, large dock gates, barn-style doors, and heavy utility trailer ramps.
Q: Is the 4.5mm thickness standard?
A: No, most standard hinges on the market are only 2mm or 3mm thick. Our 4.5mm cast design makes this a true "Heavy Duty" class hinge.
-
