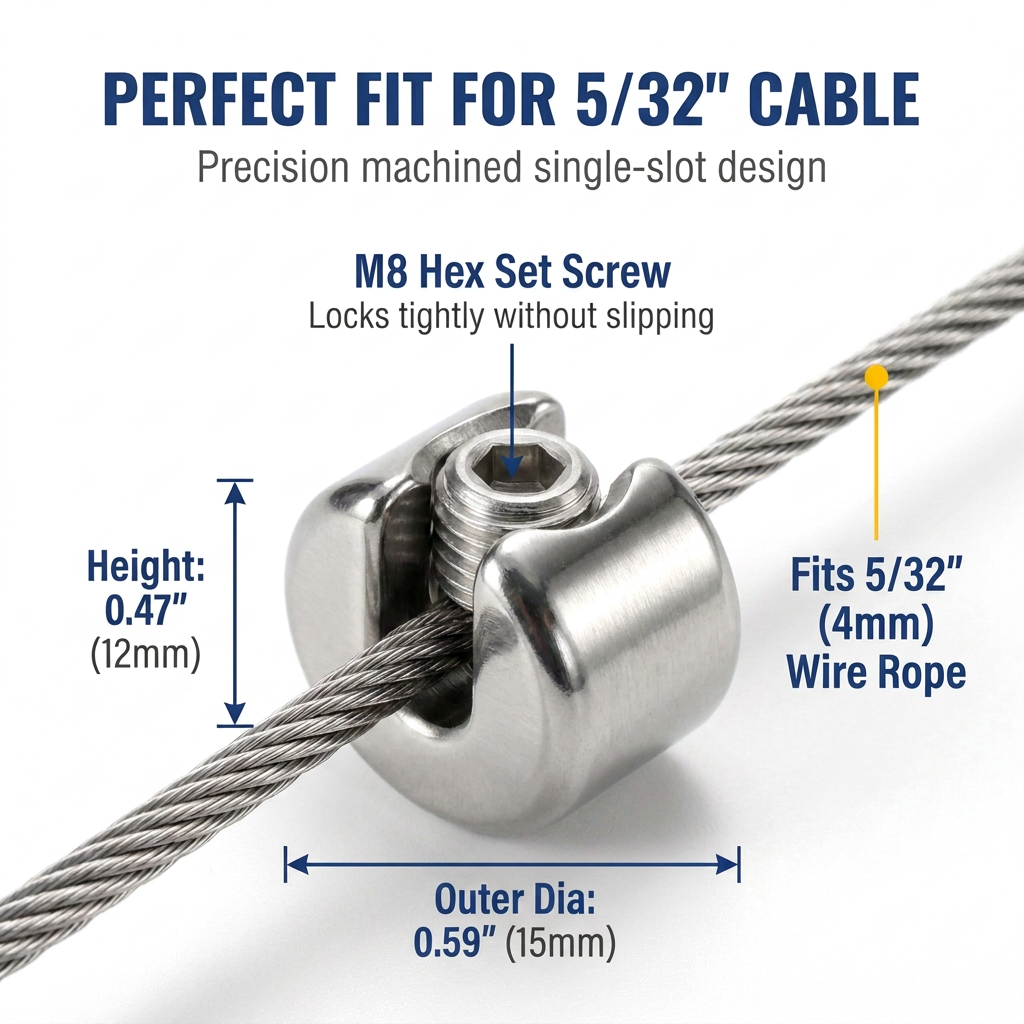

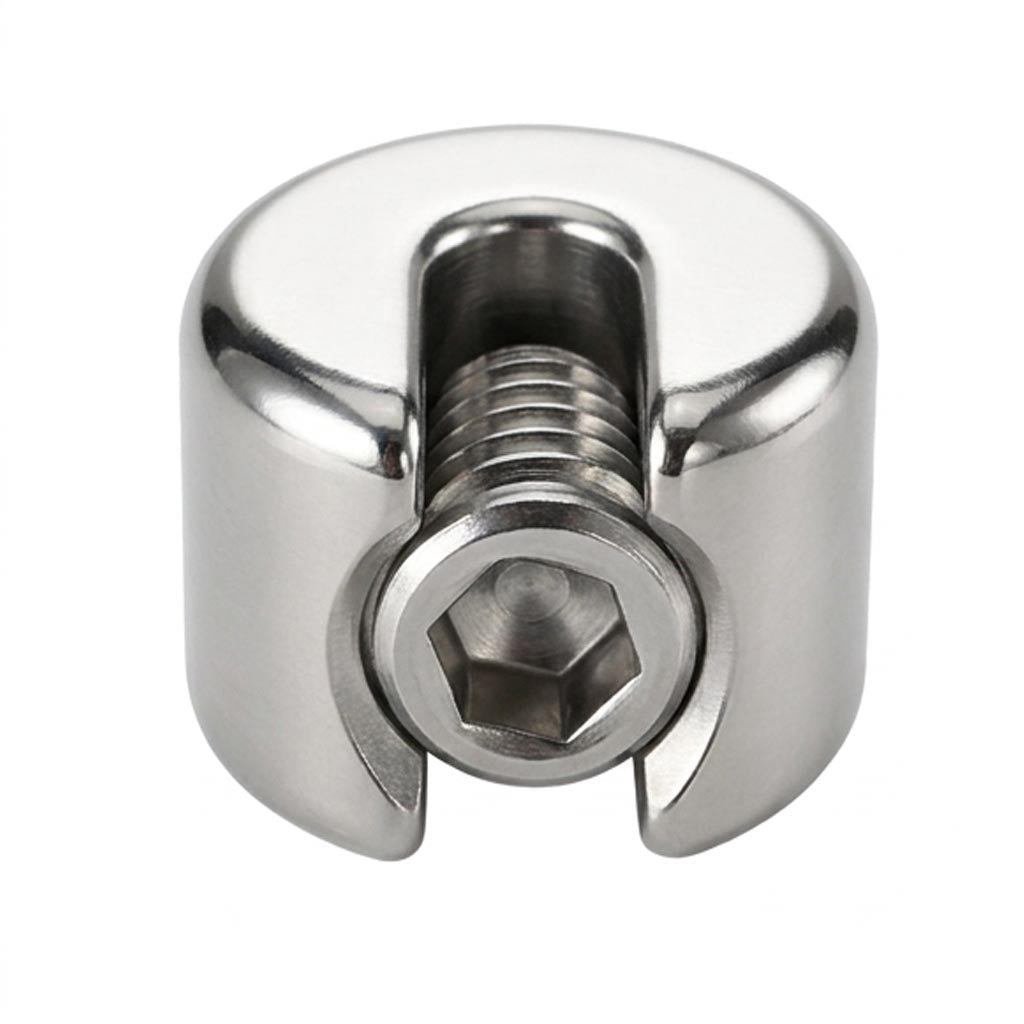

Create a clean, compact cable termination with this single-slot wire rope stopper. Sized for one 4mm (5/32 in.) wire rope, the set-screw design installs with the included matching hex key. The 316 stainless steel body provides corrosion resistance for outdoor trellis grids, landscape details and compatible cable systems.

Key Features

• Fits one 4mm (5/32 in.) wire rope: The single slot is intended to secure one compatible cable.
• Set-screw installation: Insert the cable into the slot, position the stopper and tighten the screw with the included matching hex key.
• 316 stainless steel: Corrosion-resistant construction for many outdoor environments when properly selected, maintained and inspected.
• Clean single-slot design: Helps create a tidy termination without doubling two cables through one clamp.

Specifications

Recommended Applications

Suitable for compatible 4mm wire-rope layouts such as green wall trellis grids, landscape cable details and non-lifting cable organization projects. Confirm the complete system design, cable construction, substrate and required performance before use.

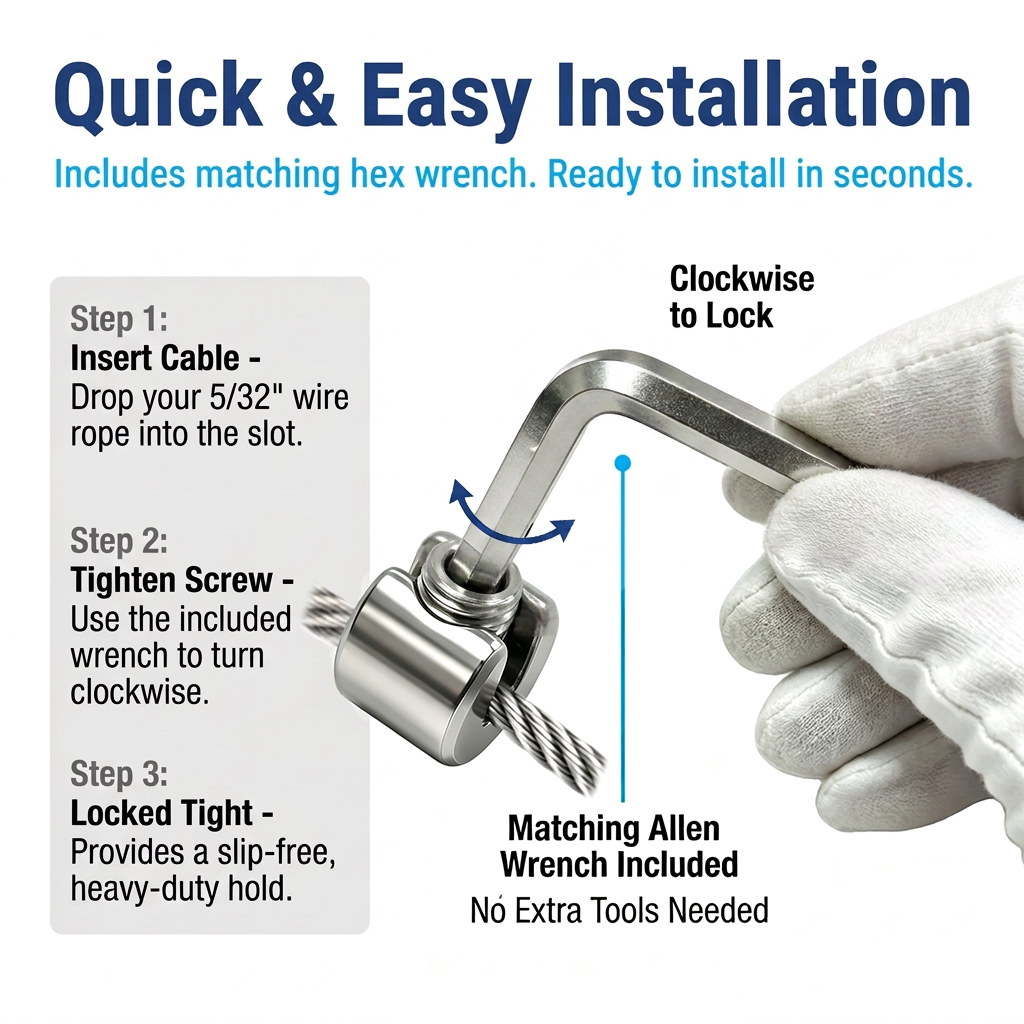

Installation

1. Confirm that the wire rope measures 4mm (5/32 in.) and fits the slot correctly.
2. Insert one cable into the slot and move the stopper to the required position.
3. Tighten the set screw evenly with the included matching hex key.
4. Check that the cable is securely held, then inspect the connection periodically during service.

Important Use Notes

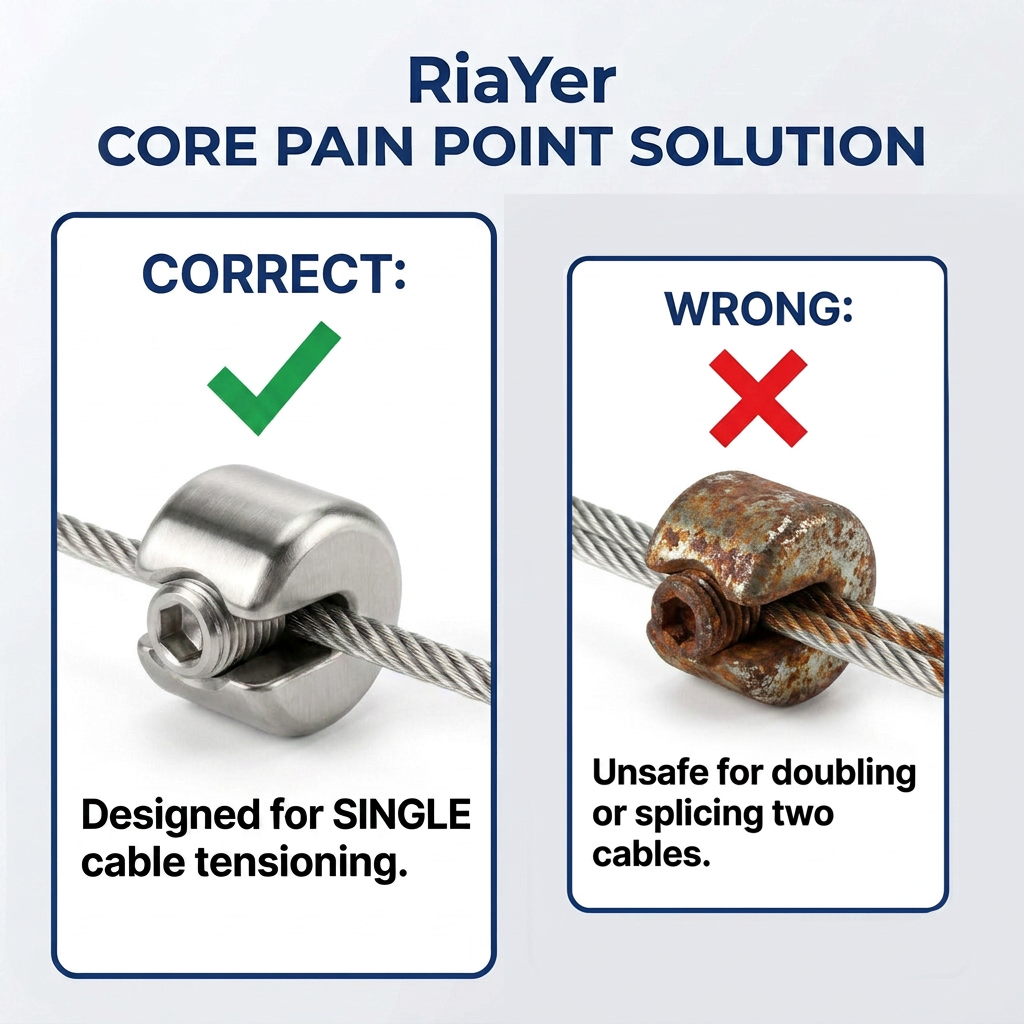

This product is a single-cable stopper, not a splice connector. Do not use it to join two cables. Unless RiaYer supplies application-specific test data and written approval, do not use it for lifting, fall protection, overhead suspension, life-safety systems or as the sole structural termination in a code-regulated guardrail. Project suitability depends on cable construction, installation, substrate, loading and local requirements.

What's Included

• Silver 316 stainless steel wire rope stoppers
• Matching hex key
